ROHM 2-Element Bi-Directional ESD Protection Diode 100 W, 3-Pin SOT-23 ESD18VHYT116

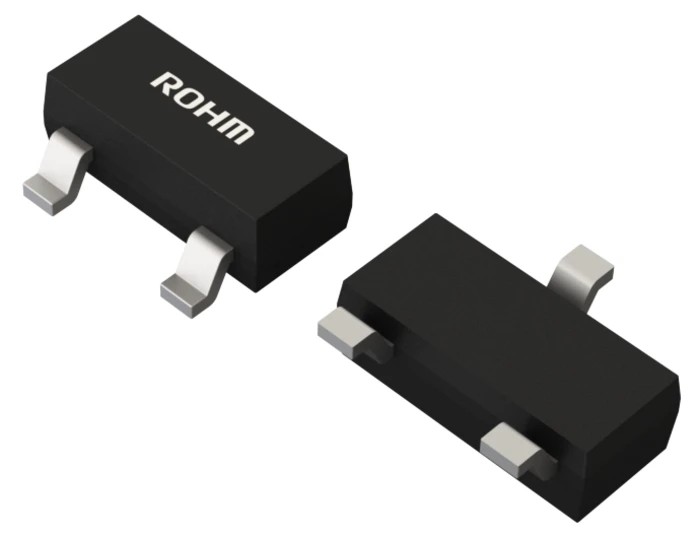

ROHM ESD18VHYT116 is a 2-element bi-directional ESD protection diode designed for effective electrostatic discharge protection in electronic devices. It is housed in a compact SOT-23 surface mount package optimized for space-saving PCB designs.

This diode features a peak pulse power dissipation of 100 W, offering excellent surge resistance and stability in high transient conditions. With a capacitance of 12 pF, it ensures minimal impact on signal integrity making it suitable for high-speed data lines.

Its operating temperature range from -55°C to 150°C also guarantees performance reliability in diverse industrial and commercial environments. ROHM ESD18VHYT116 complies with IEC61000-4-2 standards, providing ESD protection levels up to ±30 kV via contact discharge.

The device has a maximum reverse stand-off voltage of 16 V and a minimum breakdown voltage of 19.74 V with a very low maximum reverse leakage current of 100 nA, enhancing power efficiency. Its bi-directional configuration and two elements per chip design offer symmetrical protection to both polarities.

Bi-directional diode for comprehensive ESD protection. High peak pulse power dissipation supports transient surges. Small and reliable SOT-23 surface mount package. Wide operating temperature range for robustness. Low leakage current for reduced power consumption.

Capacitance suitable for high-frequency applications. Meets IEC61000-4-2 ESD immunity standards. Compact two-element design in a single chip.

This ESD Protection Diode is widely used in industrial electronics, telecommunications, consumer devices, and other applications where sensitive electronics require reliable protection from electrostatic discharges and voltage spikes.
