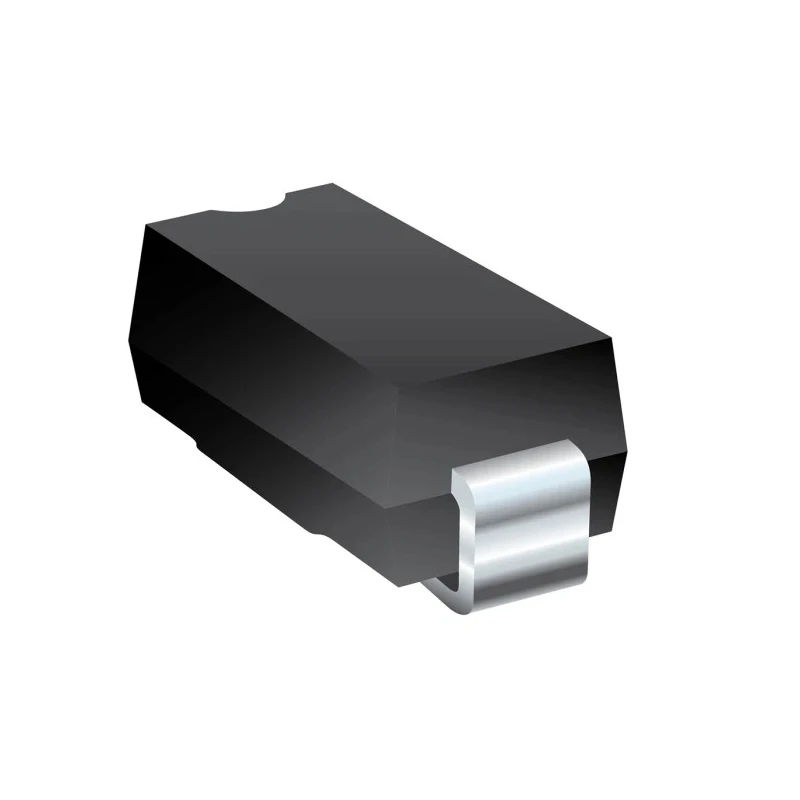

Bourns 1-Element Uni-Directional ESD Protection Diode, 600 W, 2-Pin DO-214 SMA6J24A-Q
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 2.08mm |
| Length | 4.5mm |
| Model | SMA6J24A-Q |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 43V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 1μA |
| Standoff Voltage | 5 to 43 volts |
Key Features
- This diode features a single-element, uni-directional diode configuration.
- It provides protection against electrostatic discharges with a peak pulse power dissipation of 600 watts.
- The device supports a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 43 V.
- Operating temperature range spans from -55°C up to 150°C for robust industrial applications.
- The compact DO-214 surface-mount package measures 4.5 mm in length, 2.79 mm in width, and 2.08 mm in height.
- This diode conforms to automotive standard AEC-Q101 ensuring reliability in automotive environments.
- Maximum reverse leakage current is limited to 1 μA, improving efficiency and safety.
- Its fast response time is ideal for protecting power buses and I/O interfaces in telecom, computer, industrial, and consumer electronics.
Product Description
Bourns SMA6J24A-Q 1-Element Uni-Directional ESD Protection Diode is designed for high-performance surge and electrostatic discharge protection in electronic circuits. This surface-mount device comes in a compact DO-214 package that is easy to handle and suitable for automatic placement on printed circuit boards.
With a peak pulse power dissipation rating of 600 W and a maximum reverse stand-off voltage of 43 V, this diode effectively protects power buses, I/O interfaces, and sensitive components against transients. The single-element, uni-directional diode configuration ensures a fast and reliable response time, typically less than 1 picosecond from 0 V to breakdown voltage, allowing effective suppression of voltage spikes.
The device's robust design withstands operating temperatures from -55°C to 150°C, complying with the stringent AEC-Q101 automotive standard, making it suitable for automotive and industrial applications where reliability is critical. Its low maximum reverse leakage current of 1 μA contributes to energy efficiency and minimal interference.
The SA6J24A-Q's compact dimensions (4.5 mm length, 2.79 mm width, and 2.08 mm height) facilitate dense PCB layouts. This diode is suitable for protecting telecom, computer, industrial, and consumer electronic systems from transient voltage surges. Bourns' manufacturing and quality controls ensure consistent performance specified for surface mount technology (SMT) applications.
This diode features a single-element, uni-directional diode configuration. Peak pulse power dissipation is 600 watts. Working reverse voltage range from 5 to 43 volts. Operating temperature range from -55°C to 150°C. Designed for transient voltage suppression and ESD protection.
Compact DO-214 surface mount package for ease of installation. Conforms to AEC-Q101 automotive reliability standard. Low maximum reverse leakage current of 1 μA.
Industrial, telecom, computer, and consumer electronics sectors rely on Bourns SMA6J24A-Q diodes for protecting sensitive circuits from damaging transient events. Explore EnvMart’s broad range of semiconductor protection devices and Bourns product lines for advanced electronic components tailored to demanding environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is 600 watts.
The maximum reverse stand-off voltage for this model is 43 volts.
The minimum breakdown voltage is 26.7 volts.
The operating temperature range spans from -55°C to 150°C.
The maximum reverse leakage current is limited to 1 μA.
This diode comes in a compact DO-214 surface-mount package.
The diode has a pin count of 2.
It conforms to the AEC-Q101 automotive reliability standard.
The diode features a single-element, uni-directional configuration.
This diode is suitable for protecting telecom, computer, industrial, and consumer electronic systems from transient voltage surges.
The test current for the SMA6J24A-Q is 1 mA.
The package measures 2.79 mm in width and 2.08 mm in height.
