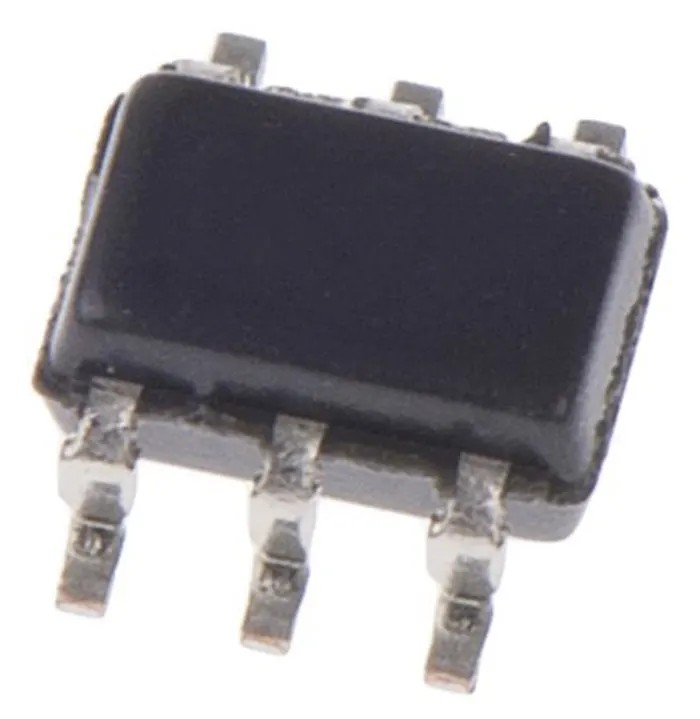

onsemi Rail to Rail Current Sensing Amplifier Single 6-Pin SC-70 NCV210RSQT2G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NCV210RSQT2G |
| Mount Type | Surface |
| Output type | Rail to Rail |
| Series | NCV210 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.2V |
| Supply Current | 60μA |
| GBP - Gain Bandwidth Product | 40kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
| Low Offset Drift | 0.5 μV/°C |
Key Features
- Wide common mode input range from -0.3 V to 26 V provides flexible system integration.
- Low offset voltage of ±150 μV max improves measurement precision.
- Low offset drift of 0.5 μV/°C ensures stability over temperature variations.
- High common mode rejection ratio of 105 dB reduces noise from unwanted signals.
- Operating voltage range from 2.2 V to 26 V accommodates various supply conditions.
- Supply current of only 60 μA enables low power consumption applications.
- High gain bandwidth product of 40 kHz suitable for dynamic current sensing.
- Surface mount package type SC-70 with compact dimensions 2.2 mm length and 1 mm height.
Product Description
onsemi NCV210RSQT2G rail to rail current sensing amplifier is a precision single channel amplifier housed in a compact 6-pin SC-70 surface mount package. Operating from a low supply voltage of 2.2 V up to 26 V, this device supports high-side current sensing applications with high accuracy and low offset voltage of ±150 μV max. The device offers a wide common mode input voltage range from -0.3 V to 26 V, making it adaptable to high voltage systems.
The low offset drift of 0.5 μV/°C and high common mode rejection ratio of 105 dB ensure measurement stability and noise immunity over a typical operating temperature range from -40°C to 125°C. With a supply current of only 60 μA and a gain bandwidth product of 40 kHz, it is suited for power monitoring circuits and current sensing in power adapters, LED power supplies, automotive lighting, and closed loop feedback control systems.
The amplifier is qualified to the automotive AEC-Q101 standard, guaranteeing robust performance under automotive environmental stresses. Typical applications include high-side current sensing in laptops, notebooks, fast chargers, telecom DC-DC modules, and computing servers where efficiency and precision are critical.
The small SC-70 package of 2.2 mm length and 1 mm height facilitates compact PCB designs. This device originates from Malaysia and is supplied new for immediate use in manufacturing and prototyping.
Wide input voltage range ensures compatibility with various system voltages. Highly accurate current monitoring improves power efficiency. Small package size supports miniaturized electronic assemblies. Low power consumption extends battery life in portable equipment.
Qualified for automotive use enhances reliability in critical systems.
Suitable for industrial, automotive, and commercial electronics sectors, this Current Sensing Amplifier addresses diverse design needs requiring precise current measurement and control. Explore more semiconductor amplifiers and current monitoring solutions within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range of this model is from 2.2 V to 26 V, accommodating various supply conditions.
It has a wide common mode input voltage range from -0.3 V to 26 V, making it adaptable to high voltage systems.
The supply current for this amplifier is only 60 μA, enabling low power consumption applications.
The gain bandwidth product of this unit is 40 kHz, suitable for dynamic current sensing applications.
The maximum operating temperature is 125°C, while the minimum operating temperature is -40°C.
It features a low offset voltage of ±150 μV max, which improves measurement precision.
The common mode rejection ratio (CMRR) is 105 dB, which helps reduce noise from unwanted signals.
This model comes in a compact 6-pin SC-70 surface mount package with dimensions of 2.2 mm in length and 1 mm in height.
It is qualified to the automotive AEC-Q101 standard, ensuring robust performance under automotive environmental stresses.
Typical applications include high-side current sensing in laptops, notebooks, fast chargers, and automotive lighting.
The low offset drift is specified at 0.5 μV/°C, ensuring stability over temperature variations.
This unit has a single channel configuration, making it suitable for various current sensing applications.
