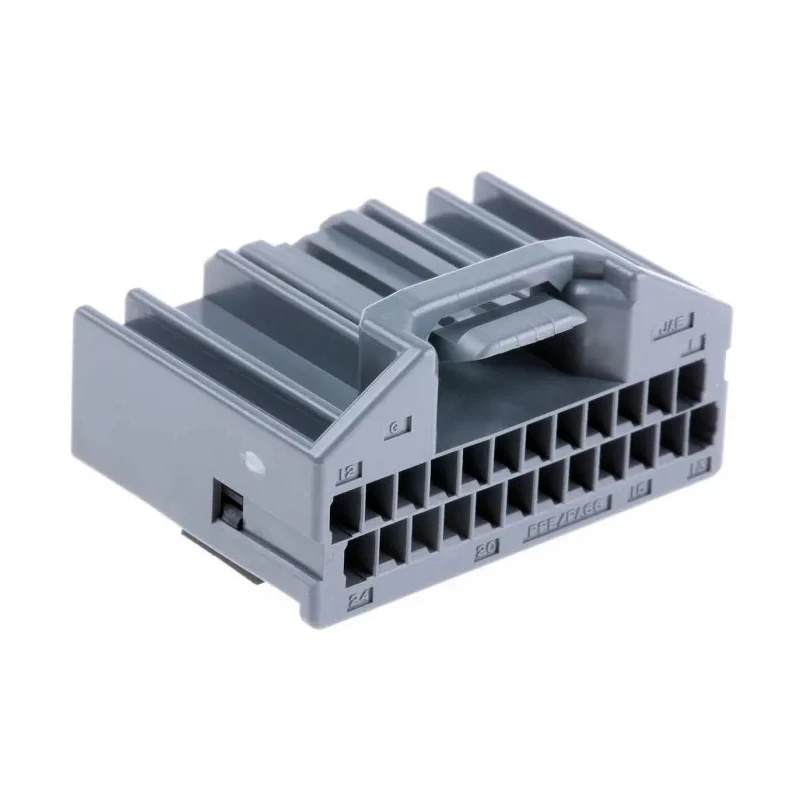

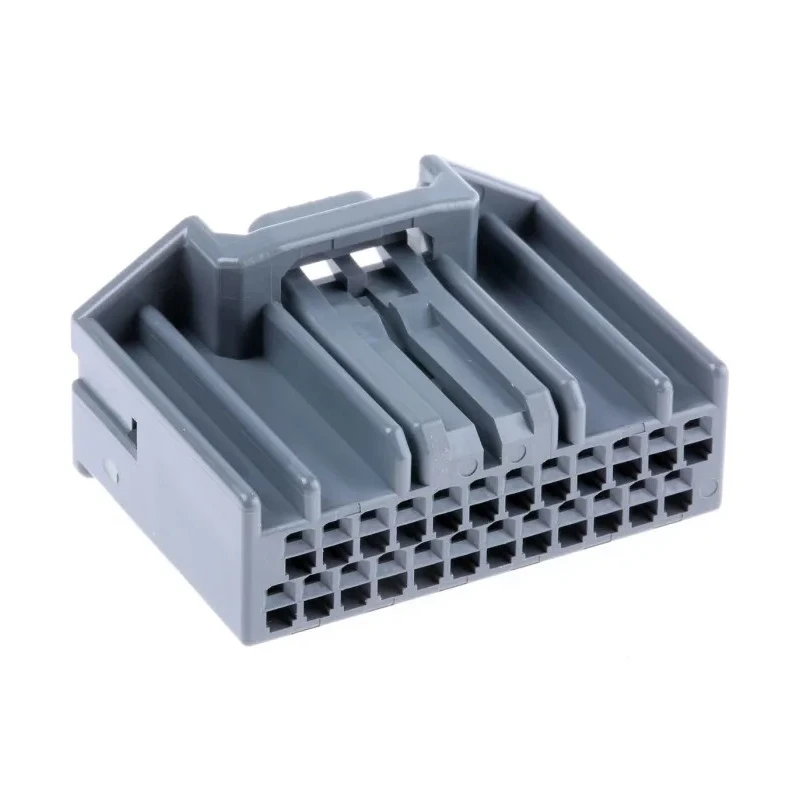

JAE MX34 Automotive Connector Female Grey Cable 24 Way Crimp Termination
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Colour | Grey |
| Current | 3A |
| Height | 14mm |
| Model | MX34 |
| Depth | 21.3mm |
| Width | 29.5mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polyphenylene Ether, Nylon |
| Series | MX34 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Socket Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 24 |
Key Features
- Features 24 contacts with a 2-row socket housing design.
- Termination type is crimp for secure wire attachment.
- Current rating is 3A suitable for automotive electrical systems.
- Constructed with polyphenylene ether and nylon housing materials for durability.
- Contact plating is tin for corrosion resistance and reliable conductivity.
- Operating temperature range from -40°C to 85°C ensures performance in harsh environments.
- Designed with a preset double locking mechanism for secure mating.
- Color-coded grey for easy identification and installation.
Product Description
JAE MX34024SF1 automotive connector is a female cable socket housing with 24 contacts arranged in 2 rows designed for crimp termination. It operates at a current rating of 3 amperes, making it suitable for various automotive electrical systems requiring reliable and durable connection solutions.
The connector body is made of polyphenylene ether and nylon, offering robust mechanical strength and chemical resistance. Tin plating on the contacts provides excellent corrosion resistance and enhances electrical conductivity. With a compact size of 29.5mm width, 21.3mm depth, and 14mm height, it is ideal for space-constrained automotive applications.
Designed with a preset double locking mechanism and a durable box-type pin header system, the connector ensures secure mating and prevents incomplete contact insertion, improving overall system integrity and safety.
The operating temperature range of -40°C to 85°C enables reliable performance under extreme environmental conditions. The grey color aids in easy identification and wiring management. This product complies with RoHS standards, ensuring it meets environmental and safety regulations.
Typical MX34 series automotive connector accessories and headers complement this component for expanded functionality and system integration. Applications include automotive wiring harnesses, control modules, sensor connections, and other vehicular electrical systems.
Features 24 contacts with a 2-row socket housing design. Termination type is crimp for secure wire attachment. Current rating is 3A suitable for automotive electrical systems. Constructed with polyphenylene ether and nylon housing materials for durability.
Contact plating is tin for corrosion resistance and reliable conductivity. Operating temperature range from -40°C to 85°C ensures performance in harsh environments. Compact dimensions: 29.5mm width, 21.3mm depth, and 14mm height.
Designed with a preset double locking mechanism for secure mating. Color-coded grey for easy identification and installation. Complies with RoHS standards ensuring environmental safety.
This automotive connector is ideal for industrial, automotive manufacturing, electrical wiring harness assembly, and repair applications requiring precision and durability. Browse EnvMart’s extensive catalog for compatible JAE Automotive Connectors and accessories to complete your system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector is 3A, making it suitable for automotive electrical systems.
The connector is constructed with polyphenylene ether and nylon housing materials, providing robust mechanical strength and chemical resistance.
It operates within a temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.
This model features 24 contacts arranged in a 2-row socket housing design.
The termination type for this connector is crimp, which provides secure wire attachment.
The dimensions of this connector are 29.5mm in width, 21.3mm in depth, and 14mm in height.
This connector is color-coded grey for easy identification and installation.
Yes, it complies with RoHS standards, ensuring it meets environmental and safety regulations.
It is suitable for automotive wiring harnesses, control modules, sensor connections, and other vehicular electrical systems.
The contacts are plated with tin, providing excellent corrosion resistance and enhancing electrical conductivity.
The connector is designed with a preset double locking mechanism for secure mating, preventing incomplete contact insertion.
The country of origin for this connector is India.
