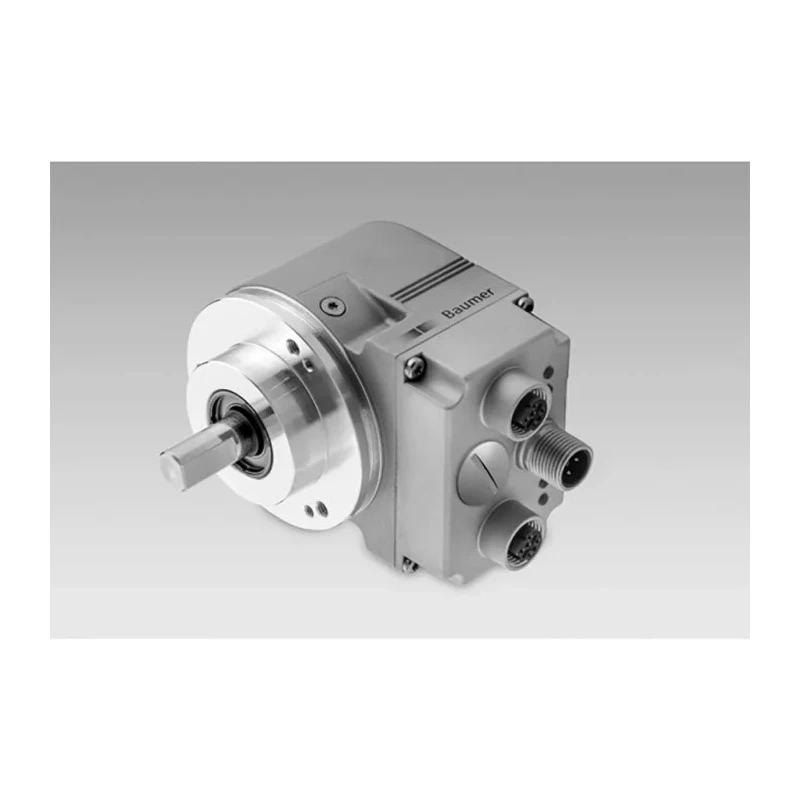

Baumer Optical Absolute Encoder EAL580 Series 30V DC, Analogue Signal, Solid Shaft 10 mm EAL580

Free Delivery in India | Lowest Global Shipping Charges

Baumer Optical Absolute Encoder EAL580 Series 30V DC, Analogue Signal, Solid Shaft 10 mm EAL580

Name: Baumer Optical Absolute Encoder EAL580 Series 30V DC, Analogue Signal, Solid Shaft 10 mm EAL580
Brand: Baumer
SKU: 304491
Price: 1033.45 USD
Availability: InStock



Category Absolute Encoder Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Model	EAL580
IP Rating	IP65
Mount Type	Clamping Flange Mount
Series	EAL580
Overall Width	58mm
Maximum Operating Temperature	85°C
Max. Resolution	single turn 18 bit, multi turn 16 bit
Minimum Operating Temperature	-40°C
Shaft Diameter	10mm
Overall height	90.9mm
Shaft Type	Solid
Terminal type	M12 Flange Connector
Interface Type	Ethernet/IP
Standards/Approvals	UL
Maximum Supply Voltage	30V dc
Overall Depth	59mm
Encoder Technology	Optical
Maximum Revolutions	6000rpm
Output Signal Type	Analogue

Key Features

Equipped with a clamping flange mount for secure installation.
Maximum revolutions up to 6000 rpm suitable for high speed operations.
Designed with IP65 rating for protection against dust and water ingress.
Provides high resolution with 18 bit single turn and 16 bit multi turn accuracy.
Features an M12 flange connector for reliable Ethernet/IP interface.
Operating temperature range from -40°C to 85°C supports harsh environments.
Incorporates LED status display and button for preset/reset operations.
Built to resist magnetic field interferences ensuring signal integrity.

Product Description

Baumer EAL580 Series Optical Absolute Encoder is designed for precise motion control in industrial automation systems. Operating at a supply voltage of 30V DC, it provides analogue output signals through a solid 10 mm shaft type. The encoder employs high-resolution optical sensing technology with a maximum single-turn resolution of 18 bits and multi-turn resolution of 16 bits, enabling highly accurate position feedback.

The product features a sturdy clamping flange mount and an M12 flange connector supporting Ethernet/IP communication protocol. With an IP65 protection rating, it withstands dust and water exposure, suitable for demanding environments. The encoder supports speeds up to 6000 rpm and operates reliably within a temperature range from -40°C to 85°C.

Its design offers excellent resistance against magnetic fields, enhancing its robustness in electromagnetic challenging conditions.

The compact dimensions - height 90.9 mm, width 58 mm, and depth 59 mm - enable integration in space-constrained automated machinery. Made in Germany, the Baumer EAL580 encoder adheres to strict quality and safety standards including UL approvals.

Clamping flange mounting ensures secure installation. High resolution optical sensing delivers precise measurement. Robust IP65 rating suitable for industrial environments. Ethernet/IP interface with M12 connector ensures stable communication.

Temperature tolerant from -40°C to 85°C for versatile applications. Magnetic field resistant design maintains signal fidelity. LED status and preset/reset button allow user-friendly operation. Compact dimensions support integration in various machinery types.

Manufactured in Germany with UL standards compliance.

This Baumer absolute encoder is ideal for industrial automation, manufacturing processes, motion control systems, and robotics applications. Find the product in the EnvMart Electronics & Electricals catalog under Sensors → Absolute Encoder for reliable position sensing solutions.
