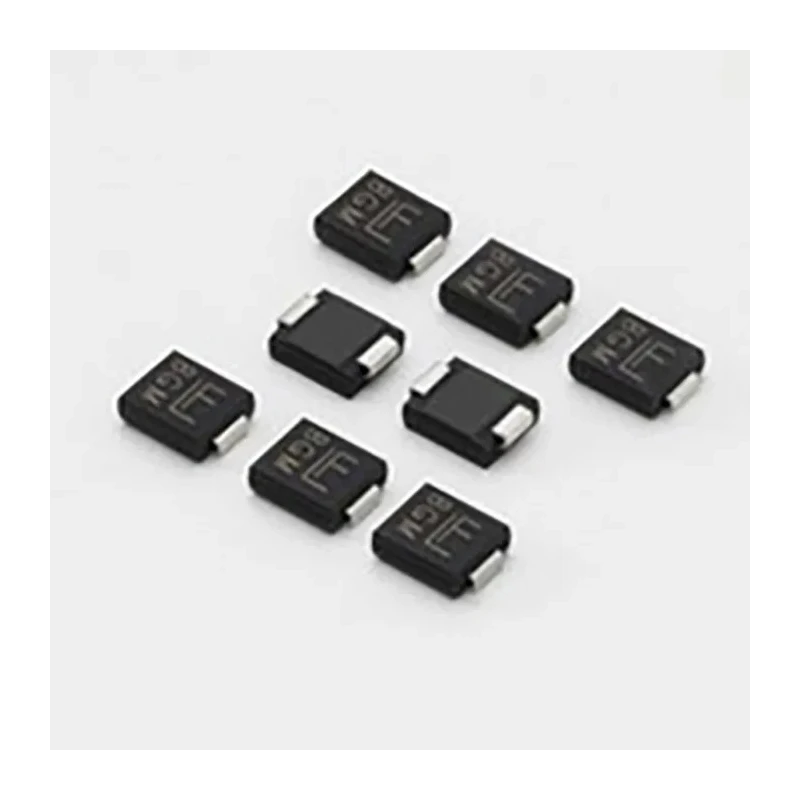

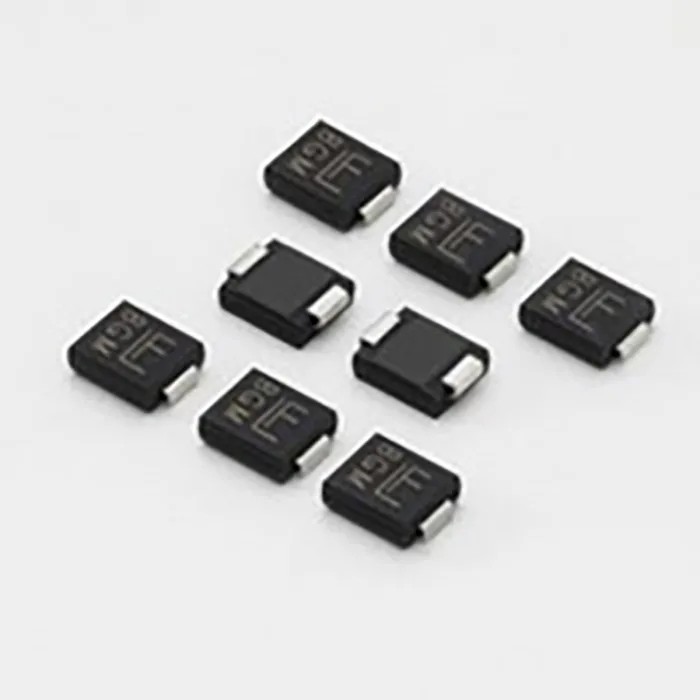

Littelfuse Uni-Directional TVS Diode, 1.5 kW, 2-Pin DO-214, Surface Mount, 350V Stand-off, SMCJ350A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Response time | 1.0 ps |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | SMCJ350A |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SMCJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 567V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 391V |
| Maximum Reverse Stand-off Voltage Vwm | 350V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.6A |
| Maximum Reverse Leakage Current | 1μA |
| Fast response time | typically less than 1.0ps from 0 Volts to V(BR) min |
| High temperature soldering | 250 degrees C/10 seconds at terminals |
| Repetition Rate (duty cycle) | 0.05% |
Key Features
- Provides high-performance transient voltage protection for electronic circuits.
- Uni-directional configuration with single diode element for precise voltage clamping.
- Designed with a 1.5 kW peak pulse power dissipation capability.
- Surface mount DO-214 package with optimized board space and low profile.
- Features a minimum breakdown voltage of 391 V and a maximum reverse stand-off voltage of 350 V.
- Fast response time, typically less than 1.0 ps, ideal for protecting sensitive equipment.
- Operates reliably between -65°C and 150°C, suitable for demanding environments.
- Clamping voltage rated at 567 V and peak pulse current up to 2.6 A.
Product Description
The Littelfuse SMCJ350A Uni-Directional TVS Diode is a high-performance semiconductor component engineered to safeguard electronic circuits against transient voltage events such as lightning surges and switching spikes. Featuring a single-element, uni-directional configuration, this diode delivers precise and rapid clamping action, minimizing the risk of damage to sensitive equipment.
With a peak pulse power dissipation of 1.5 kW and a maximum reverse stand-off voltage rated at 350 V, the SMCJ350A is capable of supporting robust transient protection applications on modern PCB assemblies. The surface mount DO-214 package, with dimensions of 7.11 mm length, 6.22 mm width, and 2.41 mm height, is engineered for space efficiency and low profile demand.
This TVS diode offers a minimum breakdown voltage of 391 V while maintaining a clamping voltage of 567 V and a peak pulse current of up to 2.6 A. It is suitable for environments requiring reliable performance from -65°C to 150°C. Enhanced with built-in strain relief and a glass passivated junction, the diode ensures greater durability and low inductance characteristics.
The SMCJ series is halogen-free and designed for surface mounting, optimizing board layout and supporting high-temperature soldering up to 250°C for 10 seconds at terminals. Excellent clamping capability and a fast response time of typically less than 1.0 picosecond guarantee swift transition from 0 Volts to minimum breakdown voltage, ensuring superior protection.
Typical applications include industrial automation, communications systems, consumer electronics, laboratory instrumentation, and manufacturing equipment where transient voltage suppression is critical. The diode supports ESD protection and is ideal for designing circuits requiring high current surges and efficient voltage control.
In summary, this Littelfuse SMCJ350A TVS diode is recommended for engineers seeking advanced, reliable protection for circuit boards and sensitive electronic systems in commercial, industrial, and laboratory environments.
Browse other TVS Diodes and Littelfuse semiconductor products in the Electronics & Electricals and Semiconductor categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse SMCJ350A TVS diode has a peak pulse power dissipation capability of 1.5 kW.
The maximum reverse stand-off voltage for the SMCJ350A is rated at 350 V.
The clamping voltage of this TVS diode is rated at 567 V.
This model features a fast response time, typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage.
The dimensions of the SMCJ350A are 7.11 mm in length, 6.22 mm in width, and 2.41 mm in height.
This model operates reliably between -65°C and 150°C, making it suitable for demanding environments.
The SMCJ350A features a single element per chip in its uni-directional configuration.
The maximum peak pulse current for the SMCJ350A is up to 2.6 A.
This model is designed for surface mounting in a DO-214 package.
Yes, it supports high-temperature soldering up to 250°C for 10 seconds at the terminals.
The minimum breakdown voltage for this diode is 391 V.
This TVS diode is recommended for applications in industrial automation, communications systems, consumer electronics, and laboratory instrumentation where transient voltage suppression is critical.
