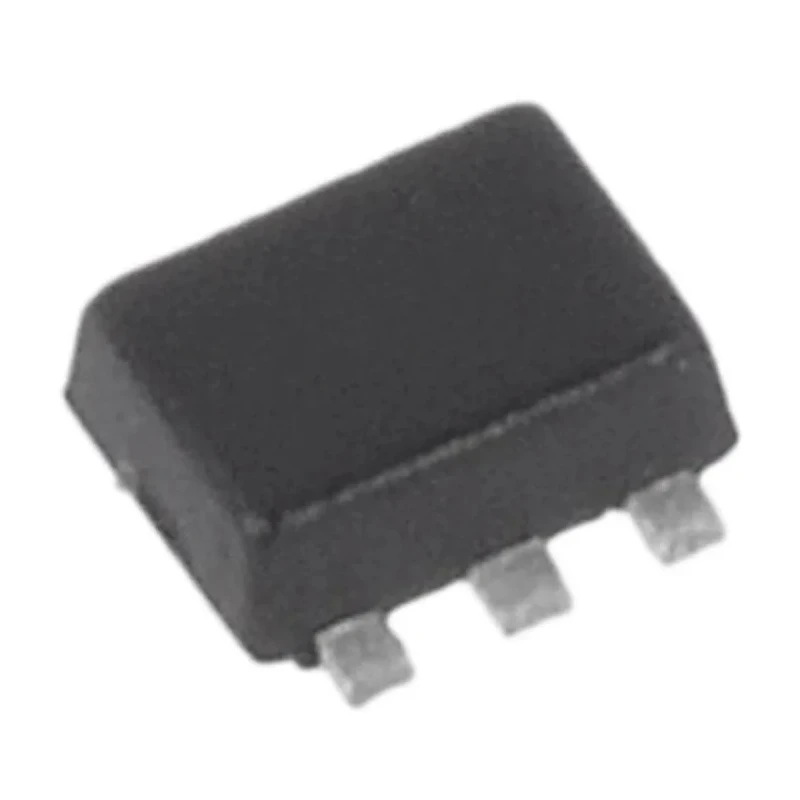

onsemi 1-Element Uni-Directional TVS Diode SOT-553, 5.5V Breakdown, AEC-Q101, 6-Pin NUP4114UPXV6T2G
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | NUP4114UPXV6T2G |
| Width | 1.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-553 |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.5V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 12A |
| Maximum Reverse Leakage Current | 1μA |
| Small Body Outline Dimensions on SC88 Package | 0.082 x 0.078 (2.10 mm x 1.25 mm) |
| Standoff Voltage | 5.5 V |
| Low Body Height | 0.043 (1.10 mm) |
Key Features
- Uni-directional TVS diode in a compact SOT-553 package.
- Minimum breakdown voltage of 5.5V ensures robust protection against electrical transients.
- Maximum reverse stand-off voltage of 5.5V and clamping voltage VC of 10V.
- Offers ESD protection up to IEC6100042 Level 4, ideal for sensitive electronic interfaces.
- Surface-mount device with ultra-low capacitance, suitable for USB 2.0, HDMI, and Display Port applications.
- Automotive AEC-Q101 standard compliance for reliability in demanding environments.
- Maximum peak pulse current rating of 12A for high reliability under surge conditions.
- Low body height (1.10mm) allows installation in tight spaces.
Product Description
The onsemi NUP4114UPXV6T2G is a 1-element uni-directional Transient Voltage Suppression (TVS) diode housed in a SOT-553 surface-mount package. Engineered for high-speed electronic data line applications, it serves as a robust solution for safeguarding against electrostatic discharge (ESD) and voltage transients. Featuring a minimum breakdown voltage of 5.5V and a maximum reverse stand-off voltage of 5.5V, the diode offers reliable protection for interfaces such as USB 2.0, HDMI, DVI, DisplayPort, and LVDS.
This model meets automotive-grade AEC-Q101 standards, making it particularly suitable for deployments in both consumer electronics and automotive systems. Its single-diode configuration and 6-pin layout allow for efficient integration in PCB assemblies where space and reliability are essential.
The device supports a clamping voltage (VC) of 10V and can handle a maximum peak pulse current (Ippm) of 12A, ensuring that transient surges are mitigated effectively. With ultra-low capacitance and low leakage performance, it minimizes interference with high-speed signals and preserves the integrity of sensitive data transmission.
Physical dimensions of the SOT-553 package are 1.7mm length, 1.3mm width, and 0.6mm height, with a low body height of 1.10mm. This allows for compact PCB designs and compatibility with modern miniaturized systems. The response time is typically less than 1.0 ns, providing rapid defense against ESD.
The NUP4114UPXV6T2G diode is Pb-free and includes PPAP capability for sites requiring advanced production control. Typical applications span LVDS, USB 2.0 hubs, HDMI ports, DisplayPort connectors, and other high-speed digital interfaces sensitive to ESD.
Industries served include electronics manufacturing, automotive systems, industrial instrumentation, and consumer electronics. The compact package, high reliability, and automotive-standard compliance make it highly suitable for professional designs.
Uni-directional TVS diode in a compact SOT-553 package. Minimum breakdown voltage of 5.5V ensures robust protection against electrical transients. Maximum reverse stand-off voltage of 5.5V and clamping voltage VC of 10V.
Offers ESD protection up to IEC6100042 Level 4, ideal for sensitive electronic interfaces. Surface-mount device with ultra-low capacitance, suitable for USB 2.0, HDMI, and Display Port applications. Automotive AEC-Q101 standard compliance for reliability in demanding environments.
Maximum peak pulse current rating of 12A for high reliability under surge conditions. Compact dimensions: 1.7mm length, 1.3mm width, and 0.6mm height. Low body height (1.10mm) allows installation in tight spaces. Low leakage response, typically less than 1.0 ns for fast reaction time.
For more TVS Diodes and onsemi semiconductor products, explore the EnvMart electronics catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this diode is 5.5V, providing reliable protection against electrical transients.
It has a maximum peak pulse current rating of 12A, ensuring high reliability under surge conditions.
The physical dimensions of the SOT-553 package are 1.7mm in length, 1.3mm in width, and 0.6mm in height.
This model complies with the AEC-Q101 automotive standard, making it suitable for demanding environments.
The clamping voltage (VC) for this diode is 10V, which helps mitigate transient surges effectively.
The diode can operate within a temperature range of -40°C to 125°C, accommodating various environmental conditions.
It is suitable for high-speed electronic data line applications, including USB 2.0, HDMI, DVI, DisplayPort, and LVDS.
The NUP4114UPXV6T2G features a single diode configuration, which is efficient for PCB integration.
The response time is typically less than 1.0 ns, providing rapid defense against electrostatic discharge (ESD).
The maximum reverse leakage current is specified at 1μA, which helps maintain low interference with high-speed signals.
The body height of the SOT-553 package is 1.10mm, allowing for installation in tight spaces.
This model supports surface mounting, making it suitable for compact PCB designs.
