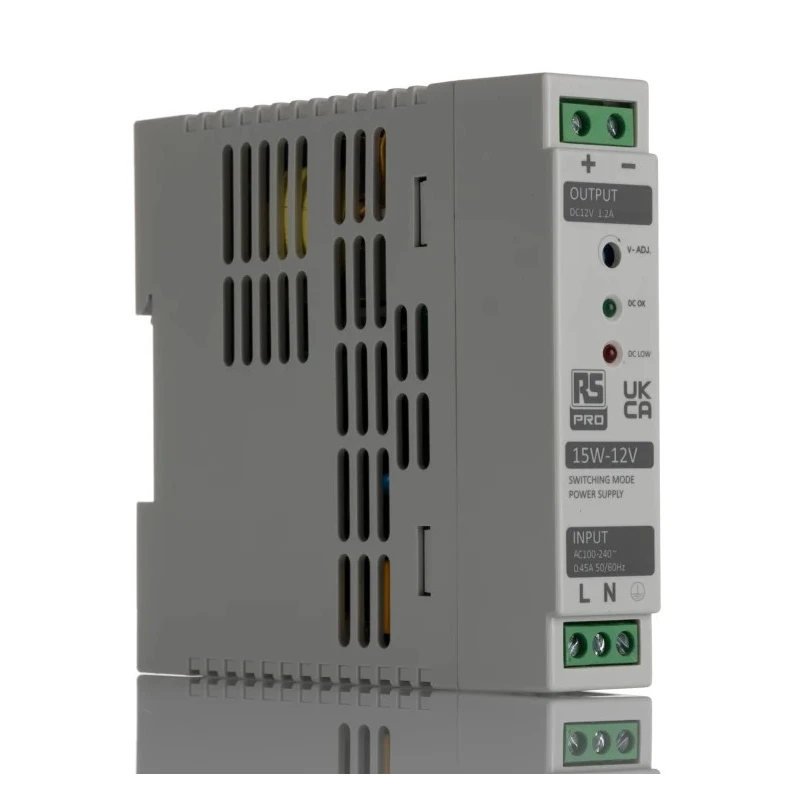

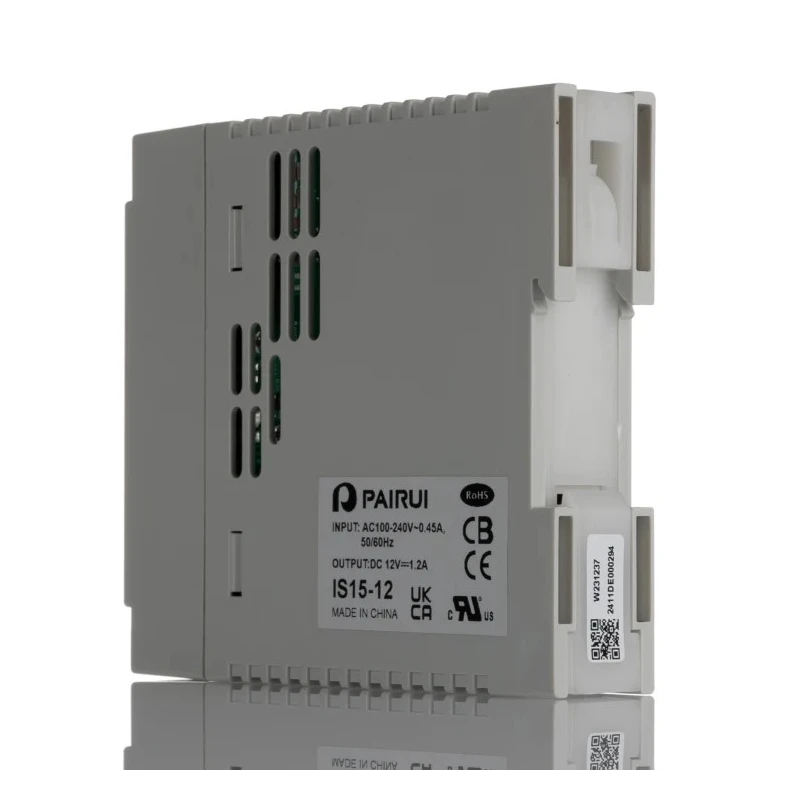

RND RS PRO Switch Mode DIN Rail Power Supply 264V AC Input 12.3V DC, 1.2A Output, 15W 136-8301

Free Delivery in India | Lowest Global Shipping Charges

RND RS PRO Switch Mode DIN Rail Power Supply 264V AC Input 12.3V DC, 1.2A Output, 15W 136-8301



Category Switching Power Supplies Brand RND Condition New

Specifications

Country of Origin	China
Brand	RND
Power	15W
Efficiency	83%
Height	95mm
Model	136-8301
Depth	108mm
Width	22.5mm
Output Current	1.2A
Maximum Operating Temperature	70°C
Sub Type	Switch Mode Power Supply
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Standards/Approvals	cUL, UL, FCC, cULus, CB, CE
Maximum Output Voltage	12.3V dc
Minimum Input Voltage	90V ac

Key Features

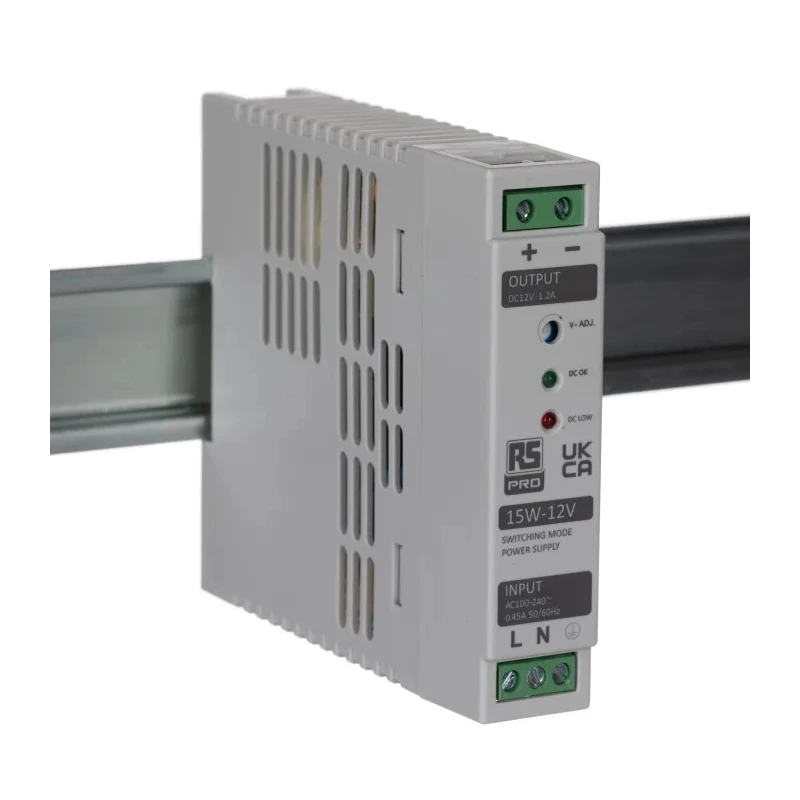

Compact 35mm DIN rail mounting design.
Universal AC input voltage range from 90V to 264V AC single phase.
High power efficiency of 83%.
Operating temperature range from -25°C to 70°C.
LED indicators for DC power presence and low voltage warning.
Protections include short circuit, over voltage, over current, and over temperature.
Complies with cUL, UL, FCC, cULus, CB, and CE standards.
Free air convection cooling eliminates the need for fans.

Product Description

RND 136-8301 RS PRO Switch Mode DIN Rail Power Supply features a compact 35mm DIN rail mounting chassis designed to provide efficient DC power conversion with a universal AC input voltage range from 90V to 264V. Delivering a stable 12.3V DC output at 1.2A current with 15W power, this unit supports single-phase AC input and offers high reliability for industrial and automation applications.

Designed for use in industrial control systems, factory automation, and transportation infrastructure, this power supply converts AC mains input to a regulated DC output suitable for powering PLCs, relays, and other DC operated equipment. Its construction enables space-saving installation in compact enclosures thanks to the DIN rail mounting format.

Key features include efficient operation at 83% efficiency, extended operating temperature range from -25°C to 70°C, and full-load burn-in testing to ensure early failure detection and durability. The power supply uses free air convection cooling, removing the need for noisy fans and increasing reliability.

It is equipped with LED indicators for DC power presence and low voltage warning. Additionally, the device integrates multiple protections including short circuit, over voltage, over current, and over temperature safeguards, ensuring safe and stable operation in diverse industrial environments.

Certified to comply with major safety and electromagnetic compatibility standards such as cUL, UL, FCC, cULus, CB, and CE, this product meets stringent global requirements for commercial and industrial power supplies.

Compact 35mm DIN rail mounting design. Universal AC input voltage: 90-264V AC single phase. Output voltage: 12.3V DC at 1.2A. Power rating: 15 watts with 83% efficiency. Operating temperature: −25°C to 70°C. Free air convection cooling for quiet operation.

LED indicators for DC status notifications. Protections: short circuit, over voltage, over current, over temperature. Safety and EMC certifications: cUL, UL, FCC, cULus, CB, CE.

This DIN rail power supply is ideal for industries requiring reliable DC power in compact control panels such as manufacturing automation, water treatment plants, and transportation systems.
