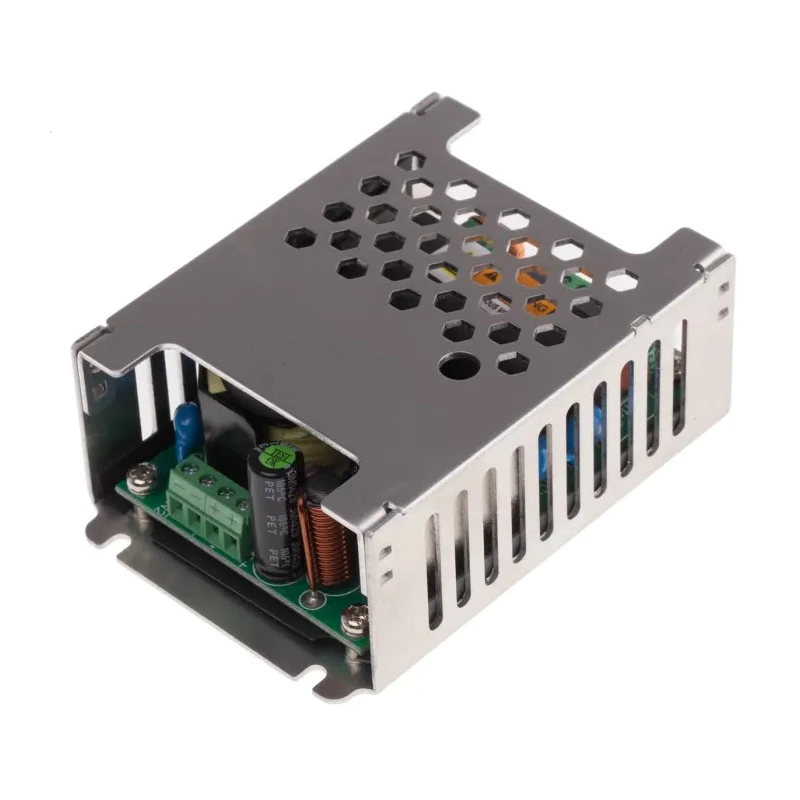

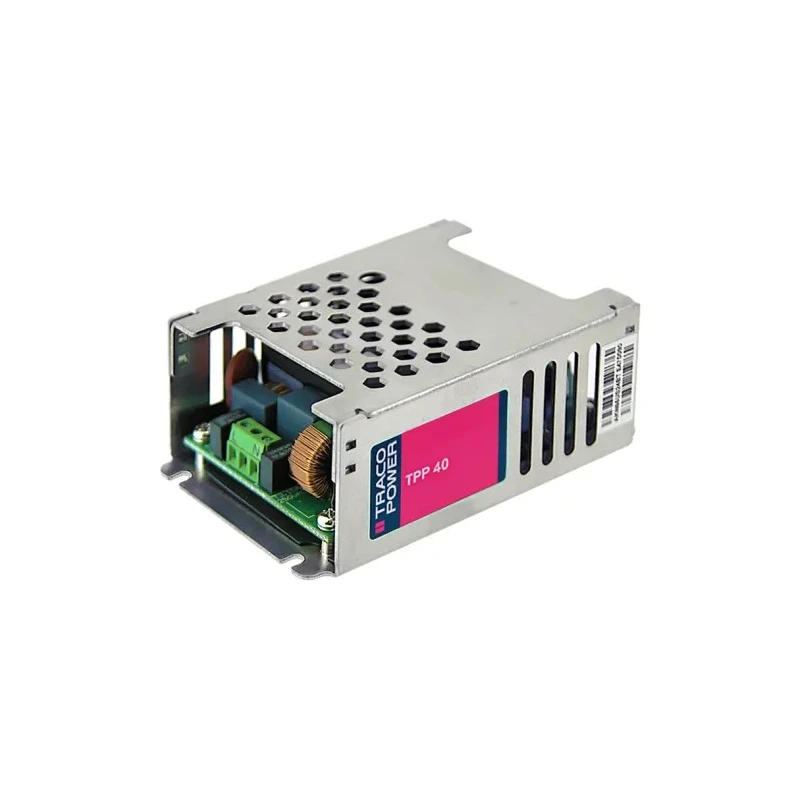

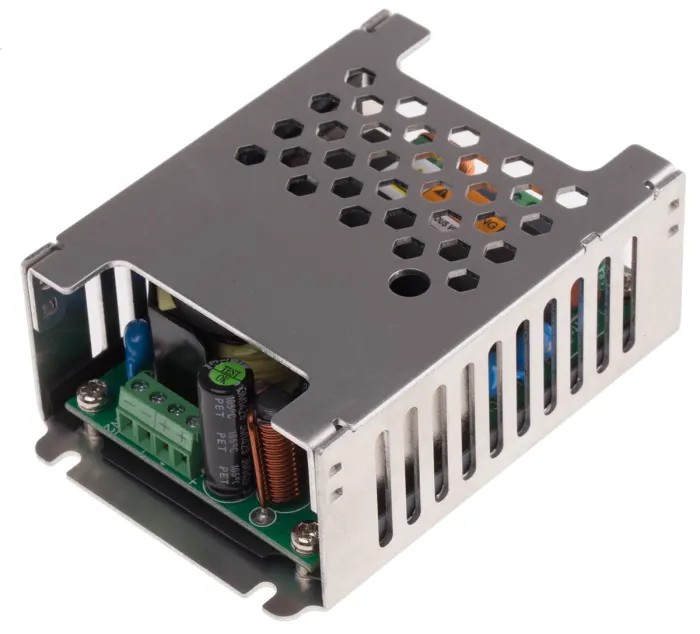

TRACOPOWER 40W Medical Switching Power Supply 24V 1.67A Chassis Mount TPP 40-124

TRACOPOWER TPP 40-124 is a high-efficiency 40W switching power supply designed for medical and demanding industrial applications requiring reliable 24V DC output with a current rating of 1.67A. This chassis mount power supply complies with stringent medical safety standards including 2 x MOPP certification per ANSI/AAMI ES 60601-1 and IEC/EN 60601-1 3rd edition, providing electrical isolation suitable for patient-connected equipment.

The device supports a wide input AC voltage range from 85V to 264V, ensuring compatibility with multiple power grids globally. It operates efficiently with a typical efficiency of 92%, reducing energy waste and heat generation. The operating temperature range from -40°C to +73°C, with load derating beyond 80%, makes it suitable for industrial environments with temperature variations.

Engineered with an integrated Class B EMI filter and active power factor correction (>95%), the TPP 40-124 offers low leakage current and minimal electromagnetic interference, integral for sensitive medical and aerospace electronics. Its compact form factor at 60.5mm width and 34.5mm depth, along with its lightweight design of 169 grams, enables easy integration into space-critical equipment racks and devices.

This power supply features 4000VAC isolation between input and output, meeting the latest medical safety guidelines for protection against electrical shock hazards. It is RoHS compliant and manufactured in Taiwan, Province of China.

Ideal applications include medical device power supplies, laboratory instruments, automation control systems, and any industry where compact, high-performance Switching Power Supplies are required with certified medical safety standards.

The unit offers high efficiency of 92% for optimal power usage. Wide input voltage range from 85V AC to 264V AC allows broad compatibility. Operating temperature range spans from -40°C to +73°C with 80% load derating. Designed with 2 x MOPP medical safety certifications according to ANSI/AAMI ES 60601-1 and IEC 60601-1 standards.

Compact dimensions of 60.5mm width and 34.5mm depth optimize space usage in installations. Includes built-in Class B EMI filter for noise suppression. Low leakage current and active power factor correction (>95%) enhance safety and power quality.

Robust 4000VAC input to output isolation supports safe use in medical environments. Lightweight design at 169g facilitates easy mounting and handling. Explore the Electronics & Electricals category on EnvMart for more high-quality power supplies and components.
