MEAN WELL 150W Open Frame Switching Power Supply 24V DC Output, 90-370V AC Input EPP-150-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 150W Open Frame Switching Power Supply 24V DC Output, 90-370V AC Input EPP-150-24

Name: MEAN WELL 150W Open Frame Switching Power Supply 24V DC Output, 90-370V AC Input EPP-150-24
Brand: MEAN WELL
SKU: 367499
Price: 80.59 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	100.8W
Efficiency	93%
Length	101.6mm
Model	EPP-150-24
Depth	29mm
Gross Weight	200g
Width	29mm
Mount Type	Chassis
Series	EPP-150
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protection	Short circuit / Overload / Over voltage/ Over temperature
Standards/Approvals	UL 6681, IEC 6681, TUV BS ENEN 6681, EAC TP TC 004
Maximum Output Voltage	24V dc
SMPS Output Current	6.25A
Minimum Input Voltage	90V ac

Key Features

Compact chassis mounting design suitable for miniaturized equipment.
Wide input voltage range from 90V AC to 370V DC ensures flexible power sources.
High efficiency up to 93% reduces energy losses and heat generation.
Operating temperature range from -30°C to 70°C supports various ambient environments.
Protected against short circuit, overload, over voltage, and over temperature conditions.
Low no-load power consumption below 0.5W complies with energy efficiency norms.
Measures 101.6mm length, 29mm width, and 29mm depth for easy integration.
Lightweight at approximately 200g for easy installation.

Product Description

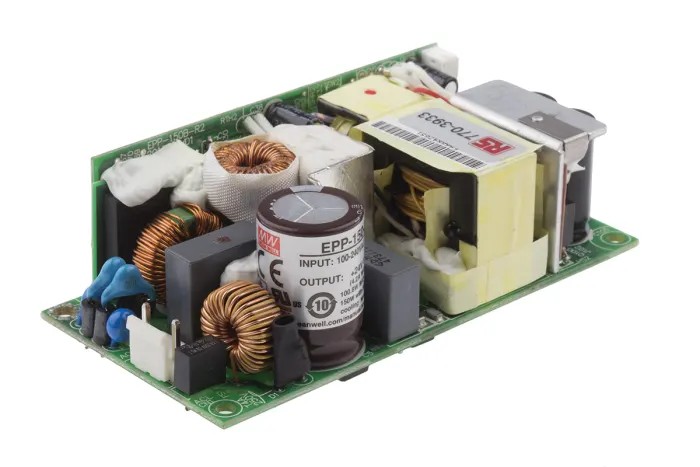

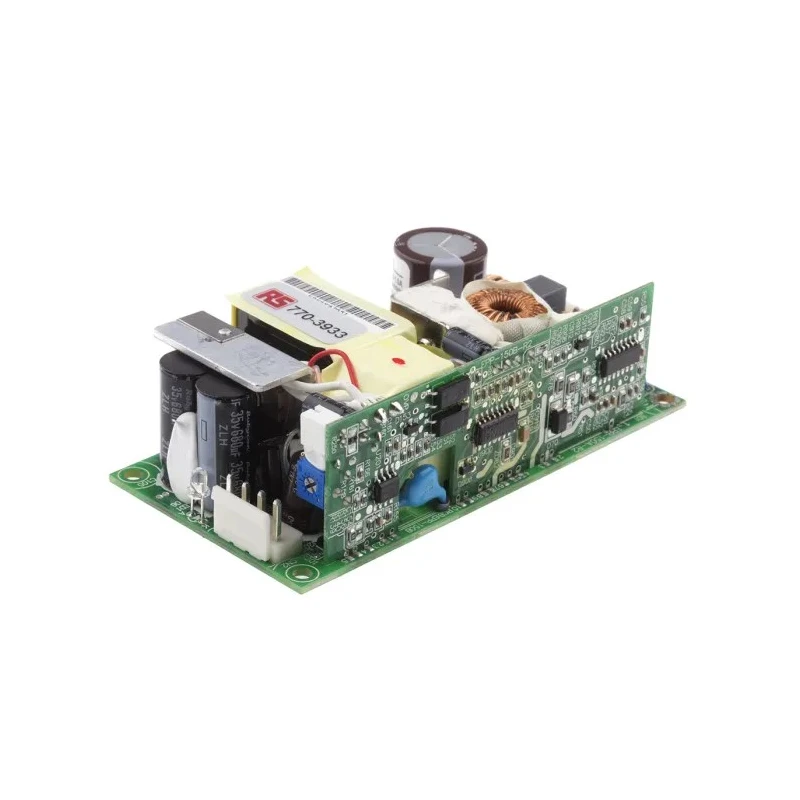

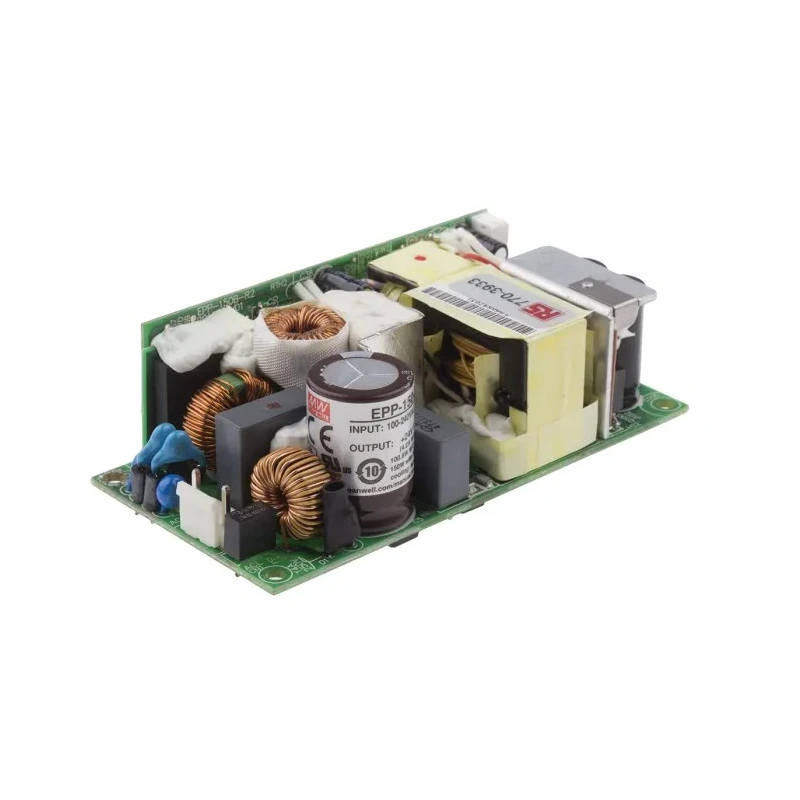

MEAN WELL EPP-150-24 is a 150W open frame Switching Power Supply designed for reliable and efficient power conversion in industrial, electronic, and automation equipment. It provides a stable 24V DC output with a single output channel. The power supply accepts a wide input voltage range from 90V AC to 370V DC, making it suitable for various power environments.

This chassis-mounted unit features a compact form factor with dimensions of 101.6mm (L) x 29mm (W) x 29mm (D) and weighs just 200 grams, ideal for miniaturized applications where space is critical. Operating safely within a temperature range from -30°C to +70°C, it supports free-air convection cooling and can be further cooled by a DC fan for higher power output up to 150W.

Efficiency reaches up to 93%, ensuring minimal energy loss and adherence to ErP energy regulations. The EPP-150-24 power supply incorporates multiple protection features including short circuit, overload, over voltage, and over temperature safeguards to ensure operational safety and equipment protection.

This high-performance power supply is suitable for automation, electrical machinery, control panels, and other industrial applications that demand low no-load power consumption and robust reliability.

Compact chassis mounting design suitable for miniaturized equipment. Wide input voltage range from 90V AC to 370V DC ensures flexible power sources. High efficiency up to 93% reduces energy losses and heat generation. Operating temperature range from -30°C to 70°C supports various ambient environments.

Protected against short circuit, overload, over voltage, and over temperature conditions. Low no-load power consumption below 0.5W complies with energy efficiency norms. Measures 101.6mm length, 29mm width, and 29mm depth for easy integration.

Lightweight at approximately 200g for easy installation. Designed for free air convection cooling and fan cooling options up to 150W. Explore a full selection of power supplies and switching power modules at EnvMart for your industrial and electronic power conversion needs.
