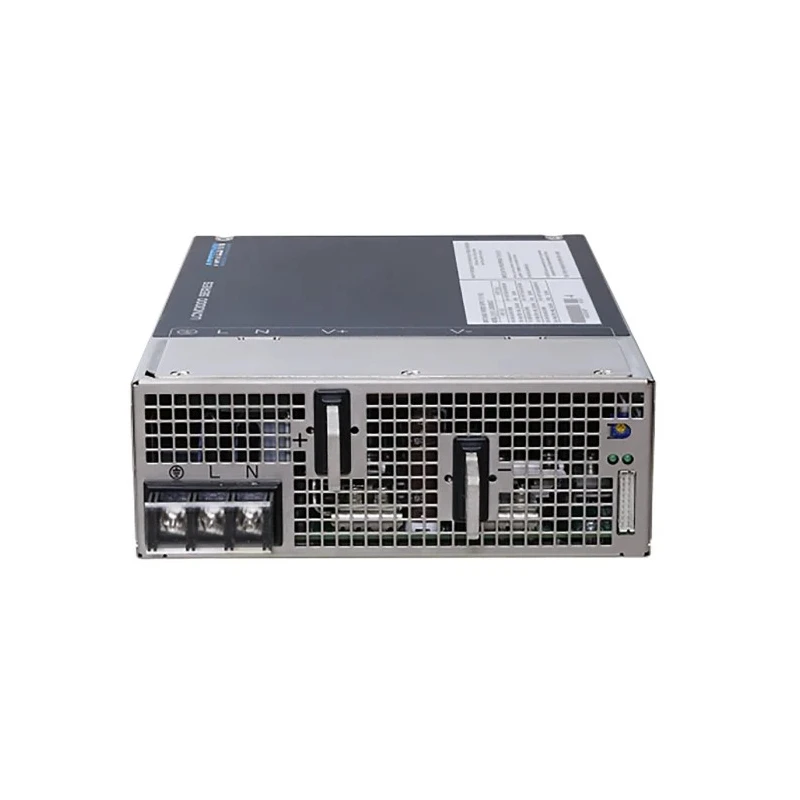

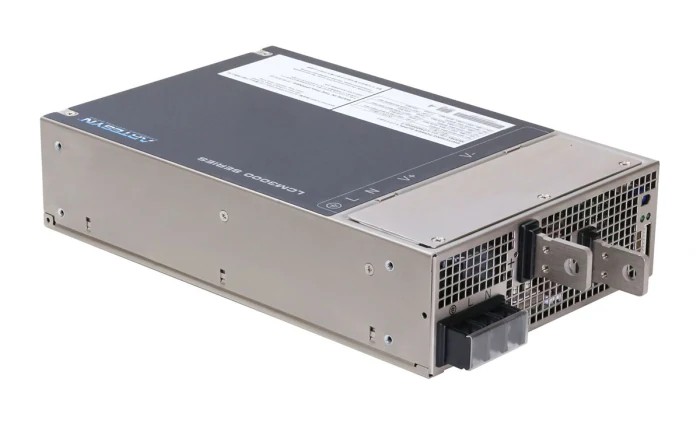

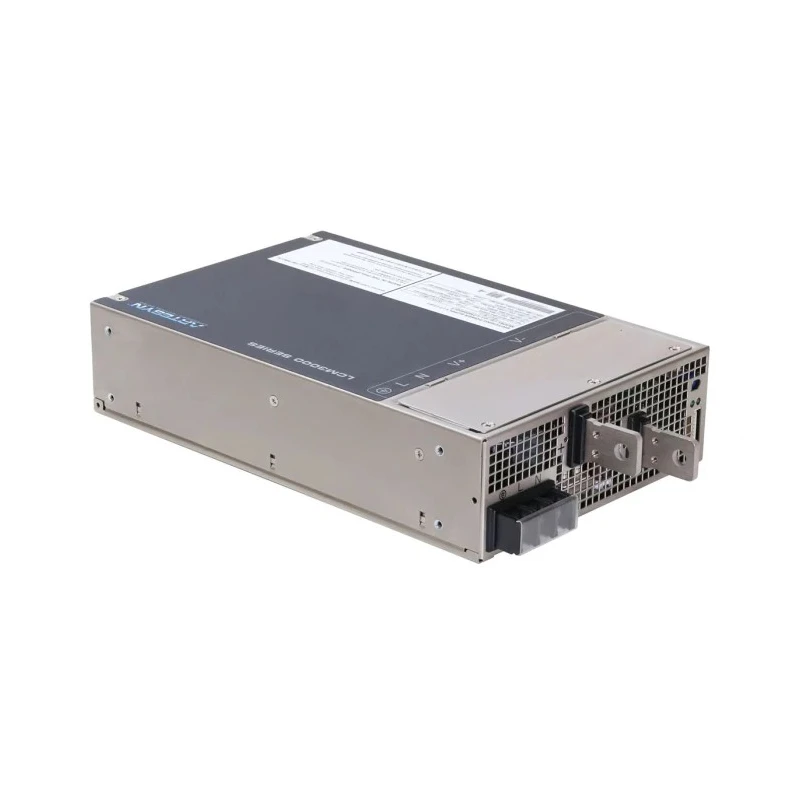

Artesyn / Advanced Energy Artesyn Advanced Energy 48V dc 3kW Chassis Mount Switching Power Supply LCM3000W-T

Free Delivery in India | Lowest Global Shipping Charges

Artesyn / Advanced Energy Artesyn Advanced Energy 48V dc 3kW Chassis Mount Switching Power Supply LCM3000W-T

Name: Artesyn / Advanced Energy Artesyn Advanced Energy 48V dc 3kW Chassis Mount Switching Power Supply LCM3000W-T
Brand: Artesyn / Advanced Energy
SKU: 420733
Price: 1289 USD
Availability: InStock



Category Switching Power Supply Brand Artesyn / Advanced Energy Condition New

Specifications

Country of Origin	India
Brand	Artesyn / Advanced Energy
Power	3kW
Efficiency	90%
Length	177.8mm
Model	LCM3000W-T
Depth	63.5mm
Gross Weight	3.7kg
Width	276.86mm
Mount Type	Chassis
Series	LCM3000W-T
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	CE, UL, EN, RoHS
Maximum Output Voltage	48V dc
SMPS Output Current	62.5A
Minimum Input Voltage	90V ac

Key Features

Operates within an input voltage range of 90V to 264V AC.
Single output power supply with output current rated at 62.5A.
Wide operating temperature tolerance from -40°C to 70°C.
Compact chassis mount form factor measuring 177.8mm length, 276.86mm width, and 63.5mm depth.
High efficiency up to 90% ensuring energy savings.
Equipped with digital signal processor for enhanced control.
Conformal coat option available for environmental protection.
Complies with CE, UL, EN, and RoHS standards for safety and quality.

Product Description

Artesyn / Advanced Energy LCM3000W-T Switching Power Supply is a robust chassis mount unit designed for consistent performance in industrial and electronic applications. It outputs a stable 48V DC voltage at a power rating of 3kW, with a current output of 62.5A, making it suitable for demanding power supply needs.

The device operates efficiently across a broad input voltage spectrum from 90V AC to 264V AC and sustains performance in extreme environmental conditions ranging from -40°C up to 70°C. Its compact dimensions of 177.8mm (L) x 276.86mm (W) x 63.5mm (D) facilitate easy integration into equipment chassis.

This power supply features advanced digital signal processor control and offers a conformal coating option to enhance resistance to environmental factors. It boasts a high efficiency of 90%, which contributes to reduced energy consumption and operating costs.

Designed with variable speed smart fans, the unit ensures optimal thermal management under various load conditions. Certified to meet CE, UL, EN, and RoHS standards, this product guarantees safety and reliability.

Common applications include the machine tool industry, mobile phone charging systems, and security equipment, where reliable and high-efficiency power supplies are critical. Operates within an input voltage range of 90V to 264V AC.

Single output power supply with output current rated at 62.5A. Wide operating temperature tolerance from -40°C to 70°C. Compact chassis mount form factor measuring 177.8mm length, 276.86mm width, and 63.5mm depth. High efficiency up to 90% ensuring energy savings.

Equipped with digital signal processor for enhanced control. Conformal coat option available for environmental protection. Complies with CE, UL, EN, and RoHS standards for safety and quality. Ideal for use in machine tool industry, mobile phone chargers, and security systems.

Includes variable speed smart fans for thermal management. Explore more power supply options with Artesyn at EnvMart for industrial and electronic applications.
