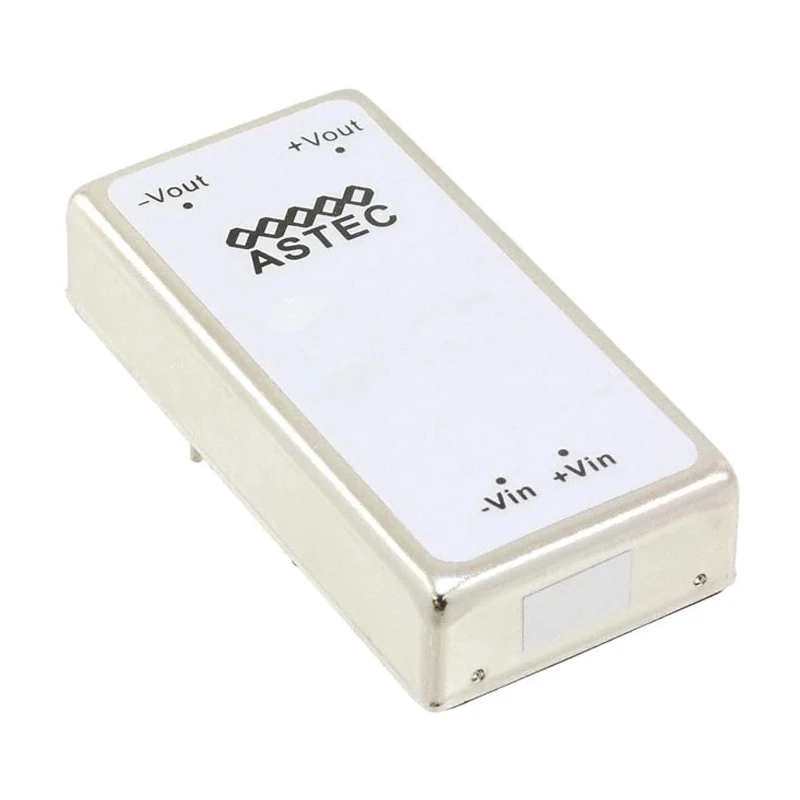

Artesyn / Advanced Energy AEE DC/DC Converter 12V DC 1.25A 75V DC Input 18V Input 15W Through Hole AEE01B36-LS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Artesyn / Advanced Energy AEE DC/DC Converter, 12V |
| Brand | Artesyn / Advanced Energy |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | AEE01B36-LS |
| Depth | 11.3mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | AEE |
| Maximum Operating Temperature | 71°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | CE, UL |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.25A |
| Output Voltage Adjustment Range | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 1.5A |
| Input Ratio | 1:6 |
| Output Voltage 2 | -5V dc |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio1 | 6 |
| 15W regulated, isolated DC-DC converter with a wide 4 | 1 input range and a 1in x 2in package. This isolated DC-DC converter is available with single or dual outputs |
Key Features
- Encapsulated through-hole mounting for secure installation.
- High isolation voltage of 1.5 kV DC for safety and noise reduction.
- Operating temperature from -40°C to 71°C ensures durability in harsh environments.
- Efficiency rated at 84% optimizes power consumption.
- Compact dimensions of 50.8mm length, 25.4mm width, and 11.3mm depth.
- Ripple and noise limited to 100mV maintaining output stability.
- Meets CE and UL standards for quality and reliability.
- Mean Time Between Failures (MTBF) of 1,000,000 hours highlights robust design.
Product Description
Artesyn / Advanced Energy AEE01B36-LS DC/DC Converter is a high-performance, regulated isolated power supply designed for efficient voltage conversion and power delivery in industrial, electronic, and commercial settings.
This DC/DC converter operates with an input voltage range of 18V to 75V DC and delivers a regulated 12V DC output at 1.25A with a maximum output power of 15W. Its compact encapsulated package supports through-hole mounting, making it suitable for PCB applications requiring secure installation. The converter exhibits an impressive efficiency of 84%, helping reduce energy losses.
The device provides 1.5 kV DC isolation voltage between input and output, ensuring electrical safety and mitigating interference in sensitive systems. This unit maintains low ripple and noise at 100mV, enhancing signal integrity for sensitive electronics.
Operational over a wide temperature range from -40°C to 71°C, the converter is well-suited for use in demanding environmental conditions common in industrial automation, telecommunications, instrumentation, and power management circuits.
Conforming to CE and UL certifications, this DC/DC converter also features robust protection mechanisms including under voltage lockout, over current protection, and automatic restart upon fault conditions, ensuring reliable and safe operation.
With a MTBF exceeding 1 million hours, the Artesyn / Advanced Energy AEE01B36-LS is engineered for long service life and dependable performance.
Use cases include industrial power supply modules, laboratory instrumentation, telecommunications power systems, and embedded electronics requiring stable regulated DC voltage conversion.
Encapsulated through-hole design for PCB integration. Wide 4:1 input voltage ratio enabling versatile applications. Built-in EMI filtering to meet EN 55022 Class A standards without external components. Shielded metal case with insulated baseplate provides heat dissipation and electrical isolation.
Over current and short circuit protection with auto restart functionality. Compact 1 in x 2 in form factor suitable for space-limited applications. Reliable and stable voltage conversion with high efficiency. Suitable for industrial, commercial, telecommunications, and laboratory use.
Explore more in EnvMart's range of power supplies and DC/DC Converters for optimized electronic power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AEE01B36-LS provides a regulated output voltage of 12V DC with an output current of 1.25A, delivering a maximum output power of 15W.
This converter operates with an input voltage range of 18V to 75V DC, allowing for a wide range of applications.
The efficiency of this model is rated at 84%, optimizing power consumption during operation.
The dimensions of the AEE01B36-LS are 50.8mm in length, 25.4mm in width, and 11.3mm in depth.
The AEE01B36-LS features an isolation voltage of 1.5 kV DC, ensuring electrical safety between input and output.
The AEE01B36-LS supports through-hole mounting, which is ideal for secure installation on PCBs.
The ripple and noise of this converter are limited to 100mV, which helps maintain output stability.
This model conforms to CE and UL standards, indicating compliance with quality and safety requirements.
It includes over current protection, under voltage lockout, and automatic restart functionality to enhance reliability and safety.
This DC/DC converter is suitable for industrial power supply modules, laboratory instrumentation, telecommunications power systems, and embedded electronics.
