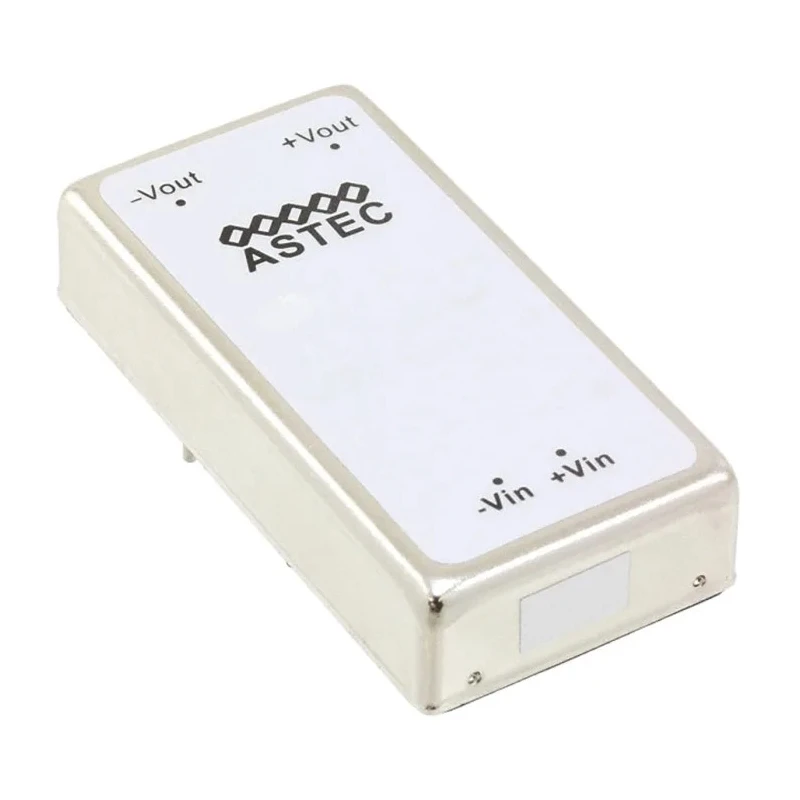

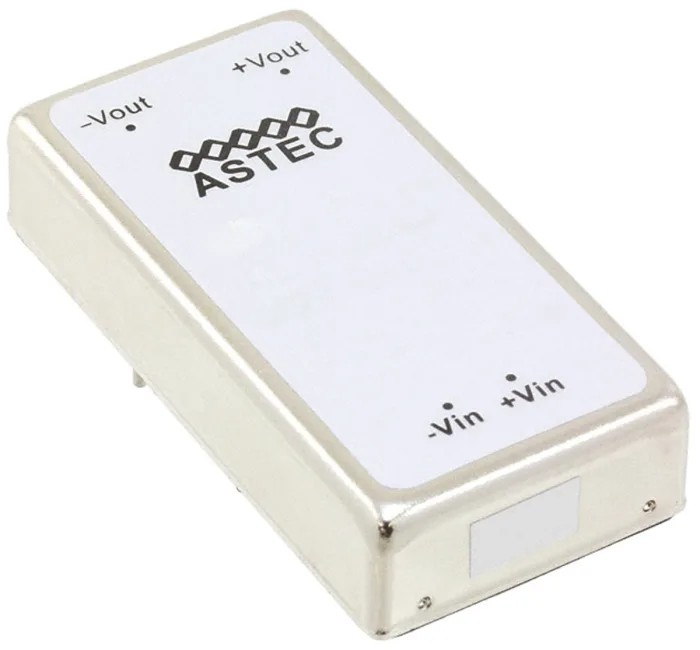

Artesyn / Advanced Energy 5V DC/DC Converter, 3 A Output, 75V DC Input, 15 W Power, Through Hole Mount, Max AEE03A36-LS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Artesyn / Advanced Energy AEE DC/DC Converter, 5V |
| Brand | Artesyn / Advanced Energy |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | AEE03A36-LS |
| Depth | 11.3mm |
| Mount Type | Through Hole |
| Series | AEE |
| Package Type | 1 x 2 in |
| Minimum Operating Temperature | 71°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | CE, UL |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio 1 | 6 |
| 15W regulated, isolated DC-DC converter with a wide 4 | 1 input range and a 1in x 2in package. This isolated DC-DC converter is available with single or dual outputs |
Key Features
- Wide input voltage range from 18 V to 75 V DC ensures versatile operation.
- High efficiency of 84% reduces energy loss and heat generation.
- Single output with 1.5 kV DC input/output isolation enhances safety.
- Compact 1 x 2 inch package suitable for space-conscious applications.
- Through hole mount type for robust mechanical stability.
- Maximum operating temperature rating of 71°C without derating.
- Ripple and noise level at 100 mV supports clean power delivery.
- Built-in protections include undervoltage lockout, overcurrent, and short circuit auto restart.
Product Description
Artesyn / Advanced Energy AEE03A36-LS is a high-performance DC/DC converter designed to deliver a single regulated 5V output at 3A current from a wide input voltage range of 18V to 75V DC. It supports a maximum output power of 15W and is housed in a compact 1 x 2 inch through hole mount package. Its 84% efficiency and low ripple and noise of 100mV ensure reliable and clean power for sensitive electronics.
This DC/DC converter features a high isolation voltage of 1.5 kV DC between input and output circuits, enhancing safety and protection of connected systems. The device has a shielded metal case with an insulated baseplate to reduce electromagnetic interference, making it suitable for industrial, laboratory, and telecommunications applications.
Built-in protections include undervoltage lockout to prevent damage during low input conditions, overcurrent protection, and automatic restart on short circuits, ensuring operational reliability. The maximum operating temperature is rated at 71°C, which allows operation in demanding environments without performance degradation.
The product meets CE and UL safety standards, providing assurance for quality and compliance in various industrial sectors. Its industry-standard pin-out and packaging as supplied in a tube make it convenient for assembly and integration into PCB designs.
This DC/DC converter is ideal for industrial automation, power management systems, telecommunication power supplies, instrumentation, and medical equipment. Its wide input voltage range makes it adaptable for various power sources while maintaining consistent output voltage and current.
Wide 4:1 input voltage range for flexible power supply compatibility. Regulated single output with high reliability and efficiency. 1.5 kV DC input/output isolation for enhanced safety. Compact size enables use in space-limited applications.
Meets CE and UL standards for global compliance. Shielded metal case reduces electromagnetic interference. Built-in protection features ensure robust operation. High MTBF of over 1 million hours indicates long service life.
Through hole mount type ensures mechanical stability on PCB. Suitable for industrial, laboratory, and commercial applications. Explore EnvMart's comprehensive range of DC/DC Converters and other electronic components to find compatible products for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 3A.
It operates within a wide input voltage range of 18V to 75V DC.
The maximum output power is 15W.
The dimensions of this unit are 50.8mm in length and 11.3mm in depth, packaged in a 1 x 2 inch format.
It features a through hole mount type, ensuring robust mechanical stability.
This model has an efficiency rating of 84%, which helps reduce energy loss and heat generation.
Built-in protections include undervoltage lockout, overcurrent protection, and automatic restart on short circuits.
It has an isolation voltage of 1.5 kV DC between input and output circuits, enhancing safety.
The ripple and noise level is specified at 100mV, supporting clean power delivery.
The maximum operating temperature is rated at 71°C without derating.
It meets CE and UL safety standards, providing assurance for quality and compliance.
This DC/DC converter is suitable for industrial automation, power management systems, telecommunications, instrumentation, and medical equipment.
