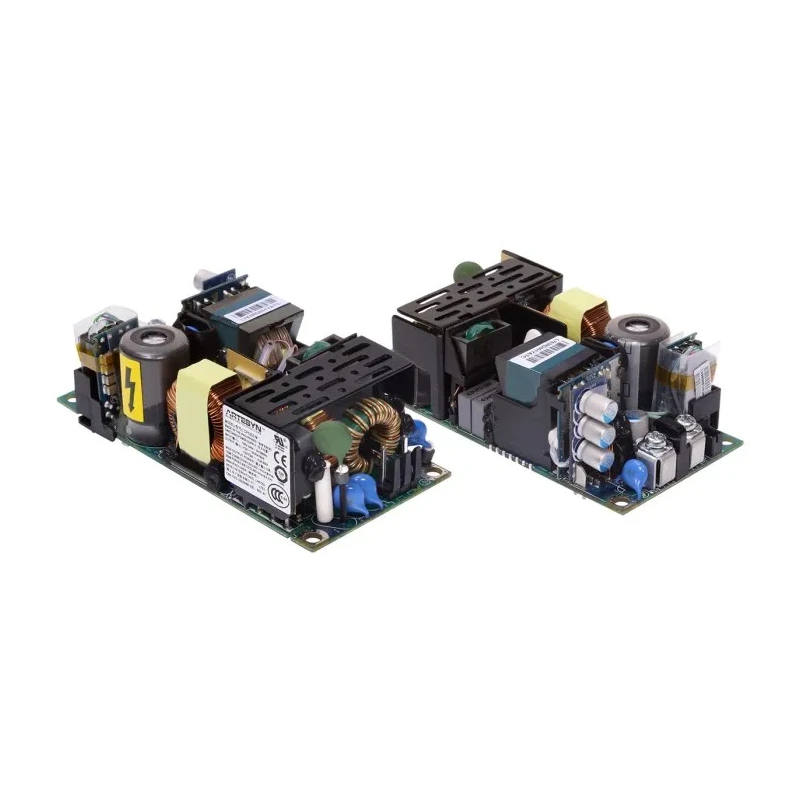

Artesyn / Advanced Energy Switching Power Supply 48V DC 155W 264V AC PCB Mount CPS258-M

Artesyn / Advanced Energy CPS258-M Switching Power Supply is a high-density, single output AC-DC power supply delivering 155 watts of power at 48 volts DC output. Designed with a compact 2-inch by 4-inch open-frame form factor, it is suitable for a wide range of industrial, medical, and light industrial system applications requiring reliable and efficient power conversion.

This power supply accepts a universal AC input voltage from 90V AC to 264V AC and provides a stable 48V DC output with a typical output current of 5.21 amperes. It supports free air convection cooling and forced air cooling via its 12V fan output, enabling durable operation under varying environmental conditions.

The CPS258-M meets medical BF type standards, ensuring compliance for medical equipment safety. Certifications include CE, EN, UL/CSA 62368-1 and 60601-1 standards, and CCC certification, guaranteeing regulatory compliance and operational safety.

Its design incorporates advanced features such as dual input fuses for overload protection, active power factor correction for reduced power consumption, and a built-in Class B EMI filter for low electromagnetic interference, making it suitable for sensitive electronic environments.

Operating temperature range spans from -20°C to +70°C, providing robust performance in diverse ambient conditions. Its compact dimensions (101.6 mm length, 32.77 mm width, 32.77 mm depth) and PCB mount type make it an ideal choice for space-constrained installations.

This power supply series is widely used in industrial automation, laboratory instrumentation, communication systems, and medical devices where high efficiency, safety, and compact design are critical. Artesyn's CPS258-M exemplifies durability, compliance, and technical excellence in power supply solutions.

Features a compact PCB mount design for versatile installation. Operates with a universal input voltage range from 90V AC to 264V AC. Single output delivering 5.21A output current with efficiency up to 93%. Operates safely within temperature range from -20°C to 70°C.

Includes dual input fuse and active power factor correction for enhanced safety and performance. Medical Type BF ready with multiple safety standard approvals including CE, UL/CSA, and CCC certifications. Designed for forced air and natural convection cooling ensuring stable operation.

Compact dimensions of 101.6mm (L) x 32.77mm (W) x 32.77mm (D) for space-saving designs. Explore more power supplies and switching power supply units at EnvMart for industrial and medical power needs.
