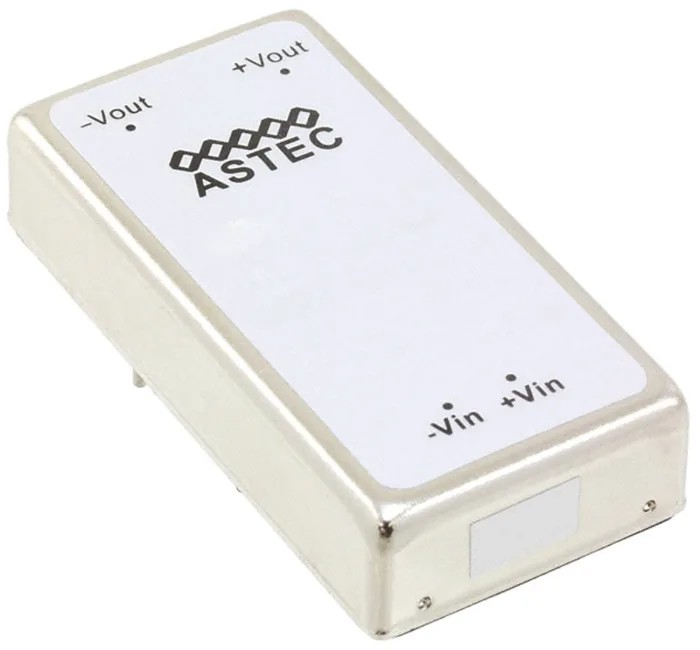

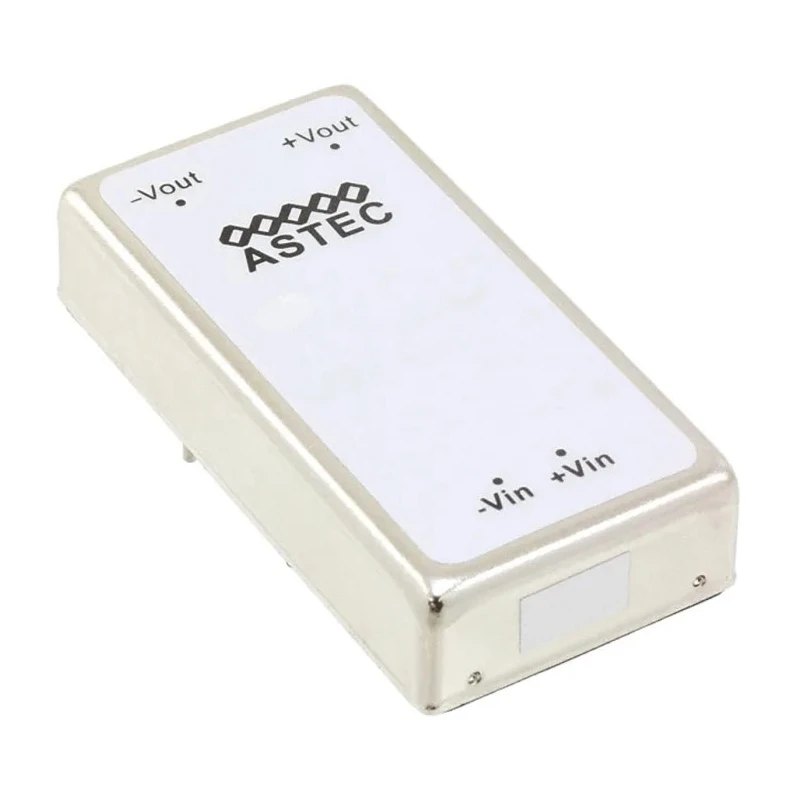

Artesyn / Advanced Energy Artesyn Advanced Energy Regulated Isolated DC-DC Converter 5V DC, 3A Output, 18-75V DC AEE03A36-LS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Artesyn / Advanced Energy AEE DC/DC Converter, 5V |
| Brand | Artesyn / Advanced Energy |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | AEE03A36-LS |
| Depth | 11.3mm |
| Mount Type | Through Hole |
| Series | AEE |
| Package Type | 1 x 2 in |
| Minimum Operating Temperature | 71°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | CE, UL |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio 1 | 6 |
| 15W regulated, isolated DC-DC converter with a wide 4 | 1 input range and a 1in x 2in package. This isolated DC-DC converter is available with single or dual outputs |
Key Features
- It provides regulated and isolated single output with an efficiency of 84%.
- The device offers 1.5kV DC isolation voltage ensuring protection between input and output.
- It includes built-in filters that comply with EN 55022 Class A standards without external components.
- Overcurrent, undervoltage lockout, and short circuit protections are integrated with auto restart functionality.
- The package measures 1 x 2 inch with a depth of 11.3 mm and length of 50.8 mm.
- The operating temperature range supports up to a maximum of 71°C without derating.
- Designed with a shielded metal case and insulated baseplate for heat dissipation and safety.
- The mean time between failures (MTBF) exceeds 1,000,000 hours indicating high reliability.
Product Description
Artesyn / Advanced Energy AEE03A36-LS is a regulated isolated DC-DC converter designed for electronic component applications requiring stable 5V DC output at 3A with an input voltage range from 18V to 75V DC and power rating of 15W. It is suited for through hole mounting and supports maximum operating temperatures up to 71°C.
This DC-DC converter features an ultra-wide 4:1 input voltage range and regulated outputs to ensure smooth and continuous power supply in industrial, laboratory, communications, and electronic system applications. The device offers 1.5kV DC isolation between input and output for enhanced electrical safety and noise reduction.
Equipped with an internal filter complying with EN 55022 Class A without any need for external components, it provides clean power output suitable for sensitive electronics. Protection features include undervoltage lockout, overcurrent protection, and short circuit protection with automatic restart, increasing durability and reliability.
The compact 1 x 2 inch package includes a shielded metal case and insulated baseplate to maintain device integrity and thermal management. The unit's MTBF of over one million hours underscores its suitability for demanding industrial and commercial applications.
Wide input voltage range from 18V to 75V DC enables flexible power sources. High efficiency of 84% reduces energy loss and heat generation. Through hole mounting supports easy integration into printed circuit boards. Maximum operating temperature of 71°C allows for robust performance in various environments.
1.5kV DC isolation voltage protects against electrical faults and interference. Compact size of 1 x 2 inches facilitates space-saving system designs. Built-in protections enhance safety and device longevity. Complies with CE and UL standards and approvals.
Ideal for industrial controls, telecommunication equipment, instrumentation, and other electronics requiring stable DC power conversion. Explore related DC-DC converters at EnvMart for additional options and technical specifications.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 5V DC with a maximum output current of 3A.
This model supports an input voltage range from 18V to 75V DC.
The converter has an efficiency of 84%.
It offers an isolation voltage of 1.5kV DC between input and output.
The package measures 1 x 2 inches with a depth of 11.3 mm.
It includes overcurrent protection, undervoltage lockout, and short circuit protection with auto restart functionality.
This model is designed for through hole mounting.
The maximum operating temperature is 71°C.
It complies with CE and UL standards and approvals.
The MTBF exceeds 1,000,000 hours, indicating high reliability.
The ripple and noise level is specified at 100mV.
It is suitable for industrial controls, telecommunication equipment, instrumentation, and other electronics requiring stable DC power conversion.
