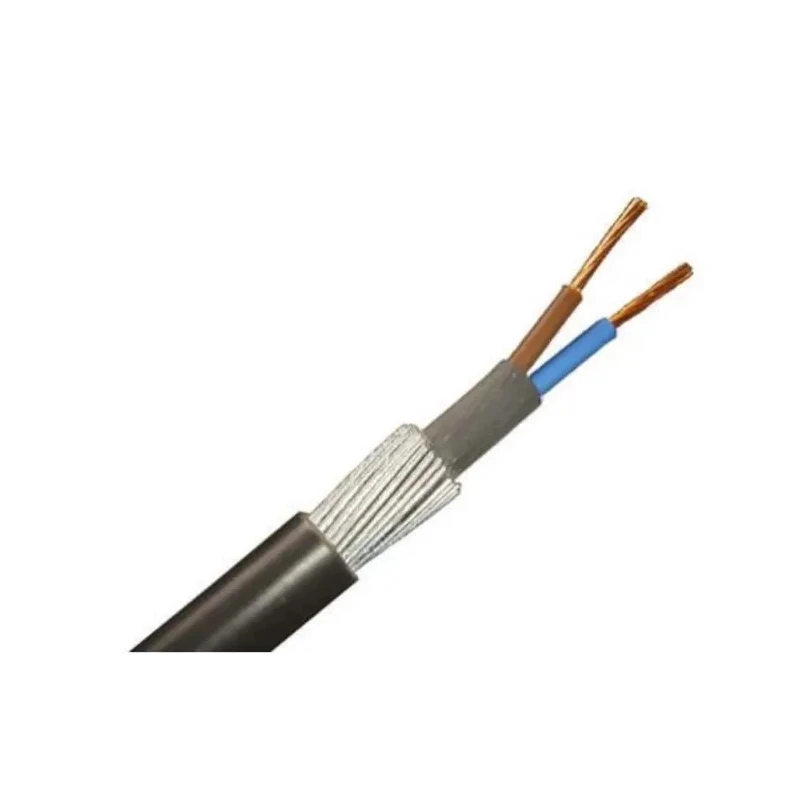

RS PRO 2 Core Power Cable Black 1.5mm² 90°C 50m Polyvinyl Chloride 196-4667

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Core Power Cable Black 1.5mm² 90°C 50m Polyvinyl Chloride 196-4667

Name: RS PRO 2 Core Power Cable Black 1.5mm² 90°C 50m Polyvinyl Chloride 196-4667
Brand: RS PRO
SKU: 421996
Price: 20.22 USD
Availability: InStock



Category Power Cable Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	1000, 600V
Brand	RS PRO
Model	196-4667
Cable Length	50m
Insulation	Thermosetting XLPE Type GP8 to BS 7655-1.3
Outside diameter	11mm
Maximum Operating Temperature	90°C
Number Of Cores	2
Conductor Material	Annealed Copper
Minimum Operating Temperature	-15°C
Jacket Material	Polyvinyl Chloride
Conductor	plain annealed copper class 2 Stranded to BS EN
Standards/Approvals	BASEC
Jacket Colour	Black
Fire Behaviour	Flame Retardant
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.53mm
Size of Strands	0.53mm
Cable CSA	1.5mm²
Bedding	Compatible Polymeric Material (PVC)
RS PRO 1.5 mm² 2 Core Armoured Cable Polyvinyl Chloride PVCBrand	RS PRO
Sheathing	PVC Type 9 to BS 7655-4.2
Steel Wire Armour	Galvanised Steel Wire

Key Features

The cable features black polyvinyl chloride (PVC) jacket for durability and flame retardance.
Conductor made of annealed copper with stranded construction for flexibility.
Designed to operate at voltages up to 1000V and 600V.
Includes galvanised steel wire armour for mechanical protection.
Suitable for industrial, construction, manufacturing, and electrical automation applications.
Minimum operating temperature is -15°C, ensuring performance in various environments.
Complies with BASEC standards for quality and safety.
Outside diameter measures approximately 11mm, making it suitable for various electrical installations.

Product Description

RS PRO 196-4667 2 Core Power Cable with a cable sectional area of 1.5mm², designed for high performance in electrical power and industrial cable applications. The cable features a black polyvinyl chloride (PVC) jacket that offers excellent flame retardant properties and protection against external mechanical stresses.

This Power Cable includes two cores made from annealed copper which is stranded and conforms to BS EN60228 standards. It is insulated with thermosetting XLPE Type GP8 and has compatible polymeric bedding, galvanized steel wire armour, and PVC Type 9 sheathing manufactured as per BS 7655 and BS 5467 standards.

The cable operates at a safe voltage level of up to 1000V (AC) and withstands a maximum temperature of 90°C, while the minimum operating temperature is -15°C. Its nominal outside diameter is 11mm, and it features 7 strands per core, each 0.53mm in size, providing flexibility and mechanical strength.

The cable jacket is made from polyvinyl chloride providing electrical insulation and flame retardance. Conductor material consists of plain annealed copper class 2 for efficient conductivity. Steel wire armouring enhances durability and protection against mechanical damage.

The product is suited for use in electrical automation, industrial wiring, mains distribution, construction, and manufacturing sectors. Manufactured in the United Kingdom, this cable meets BASEC approvals ensuring reliability and safety.

Please consider this cable for your electrical infrastructure projects where durability, safety, and compliance with industrial standards are required. Explore more electrical cables in the Electronics & Electricals category on EnvMart.
