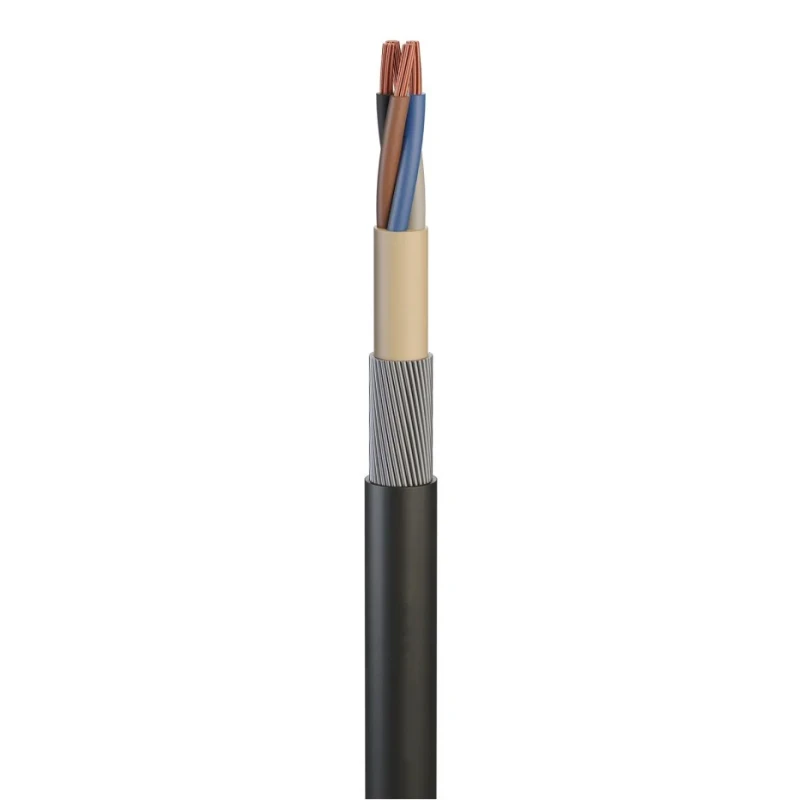

RS PRO 2 Core Power Cable 16mm² 90 °C Cross Linked Polyethylene Copper Conductor 1000, 600V 185-3997
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 185-3997 |
| Outside diameter | 20mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked Polyethylene |
| Standards/Approvals | BS EN 60228 |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 1.70mm |
| Size of Strands | 1.70mm |
| Cable CSA | 16mm² |
Key Features
- The copper conductor is stranded with 7 strands of 1.70mm for optimal conductivity.
- Insulated with thermosetting cross-linked polyethylene (XLPE) jacket providing high temperature resistance.
- Rated for voltages of 1000V and 600V suitable for industrial and commercial applications.
- Designed to operate at temperatures ranging from -15°C to a maximum of 90°C safely.
- Robust outer jacket diameter of 20mm ensures enhanced mechanical protection and durability.
- Suitable for installations in air, surface mounting, cable trays, embedded concrete, direct burial, and ducting underground.
- BS EN 60228 compliant ensuring quality and safety standards are met.
- Manufactured in the United Kingdom ensuring adherence to high manufacturing standards.
Product Description
RS PRO 185-3997 2 Core Power Cable 16mm² 90 °C Cross Linked Polyethylene features stranded copper conductors with a cross-sectional area of 16mm², designed for reliable electrical power transmission.
This cable is insulated with a thermosetting cross-linked polyethylene (XLPE) jacket type GP8, providing excellent thermal and electrical insulation with a nominal outer diameter of 20mm. The robust design supports voltages up to 1000V and 600V AC rated usage.
The cable delivers high performance across an operating temperature range from -15°C to 90°C, suitable for challenging environments where thermal endurance is essential.
Its construction includes galvanised steel wire armour (SWA) for mechanical protection and a PVC type 9 sheath enhancing its durability. The stranded configuration consists of 7 strands of 1.70mm copper wire ensuring flexibility and conductivity.
Applications include industrial wiring, mains power distribution, and installations requiring secure and long-lasting electrical cabling whether laid on cable trays, embedded in concrete, or buried underground.
The copper conductor consists of 7 x 1.70mm strands for excellent electrical performance. Cross Linked Polyethylene jacket offers high temperature and abrasion resistance. Voltage rating up to 1000V and 600V for versatile electrical use.
Operating temperature range ensures cable reliability in extreme cold and heat. Outer diameter of 20mm supports robust installation needs. Armoured with galvanised steel wire for mechanical protection. BS EN 60228 certification confirms compliance with industry standards.
Manufactured in the United Kingdom adhering to quality manufacturing practices. This cable is ideal for use in industrial, commercial, electrical distribution, infrastructure cabling, and building wiring where dependable power delivery is critical.
Explore more RS PRO electrical cables and power transmission products at EnvMart for reliable, high-quality solutions.
