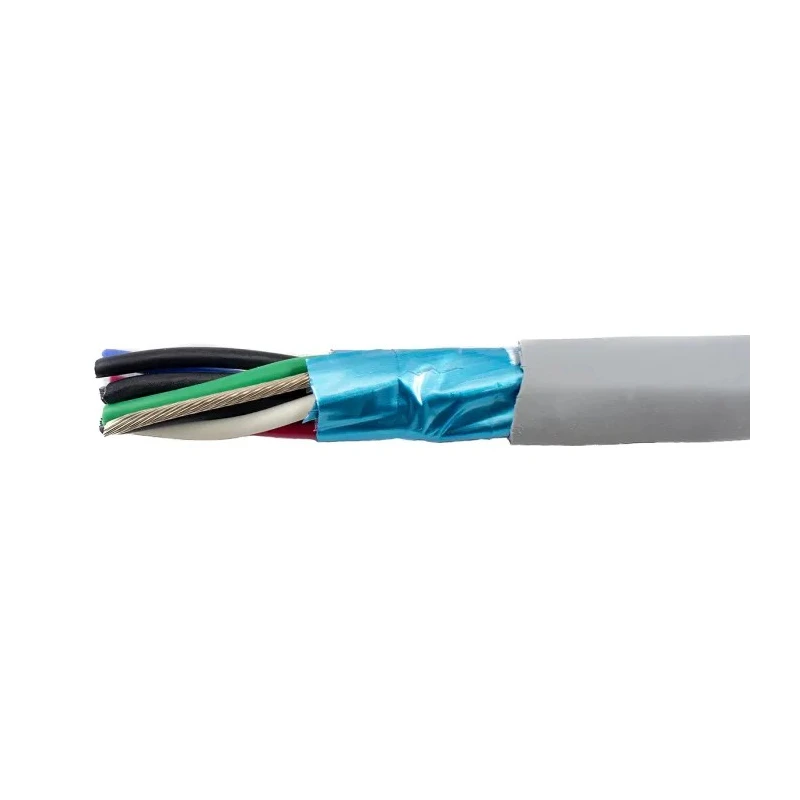

Alpha Wire Ecogen Ecocable Mini Series Data Cable 5 Pairs 0.09 mm² 30 m Grey Sheath MPPE 78105 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09 mm² |
| Model | 78105 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.34mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.171 inch (4.34 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | MPPE |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 40AWG |
| Size of Strands | 40AWG |
| Number of Pairs | 5 |
| Conductors | 5, White/Black, White/Brown, White/Red, White/Orange, White/Yellow |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable operates reliably within a temperature range from -40°C to 80°C.
- It features halogen-free, foil shielded construction with a low specific gravity for lightweight use.
- Designed for 300 V applications with UL, CSA, and CE approvals.
- Its mPPE insulation and jacket make it fully recyclable and resistant to EMI.
- Suitable for communication, automation, telecommunication, and industrial machinery protection.
- Each conductor consists of 19 strands of 40AWG wire for flexibility and durability.
- The cable jacket thickness is 0.015 inch (0.38 mm) with an insulation thickness of 0.007 inch (0.18 mm).
- The nominal outside diameter measures 4.34 mm, enabling space-efficient installations.
Product Description
Alpha Wire 78105 SL005 Ecogen Ecocable Mini Series Data Cable is a high-performance data cable featuring 5 pairs (10 cores) of 0.09 mm² stranded tinned copper conductors encapsulated within a grey mPPE jacket. Engineered for industrial, communication, telecommunication, and automation applications, this cable operates efficiently within a temperature range of -40°C to +80°C, ensuring durability under harsh conditions.
The cable's EcoCable Mini series boasts a halogen-free design with foil shielding that combines an aluminum/polyester shield and a tinned copper drain wire, providing excellent resistance to electromagnetic interference (EMI). Its mPPE jacket and insulation contribute to its lightweight nature and recyclability, making it a sustainable and efficient choice for modern industrial wiring needs.
Constructed with 19 strands of 40AWG conductors per core and a nominal outside diameter of 4.34 mm, this cable offers flexibility and easy handling for installations in confined spaces. The jacket thickness is 0.015 inch (0.38 mm), with insulation thickness of 0.007 inch (0.18 mm), meeting stringent UL, CSA, and CE standards for safety and performance.
The cable supports communication signals with high fidelity and low interference. Its zero halogen materials reduce toxic emissions in fire scenarios. Applications include radio transmitters, electronic circuits, studios, and industrial machinery compliant with NFPA 79 requirements.
EcoCable Mini is suitable for use in environments demanding stringent fire safety and electrical protection. Alpha Wire's renowned build quality ensures performance reliability and long service life.
This product is ideal for electrical power and industrial cable installations where size, weight, and environmental safety are key considerations. Alpha Wire Ecogen Ecocable Mini Series Data Cable provides engineers and installers with a high-quality, environmentally friendly solution compliant with leading international standards.
Explore more high-quality Data Cables and industrial wiring solutions at EnvMart for reliable and future-ready installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 80°C.
The nominal outside diameter of this model is 4.34 mm.
This cable features 5 pairs of conductors, totaling 10 cores.
It uses mPPE insulation, which is halogen-free and contributes to its lightweight and recyclable nature.
The voltage rating for this data cable is 300V.
The conductors are made of stranded tinned copper wire, consisting of 19 strands of 40AWG wire per core.
The jacket thickness is 0.015 inch (0.38 mm) and the insulation thickness is 0.007 inch (0.18 mm).
This cable has UL, CSA, and CE approvals, ensuring compliance with safety and performance standards.
It is suitable for communication, automation, telecommunication, and industrial machinery protection applications.
The minimum operating temperature for this cable is -40°C.
The cable is halogen-free, which reduces toxic emissions in fire scenarios.
The length of this data cable is 30 meters.
