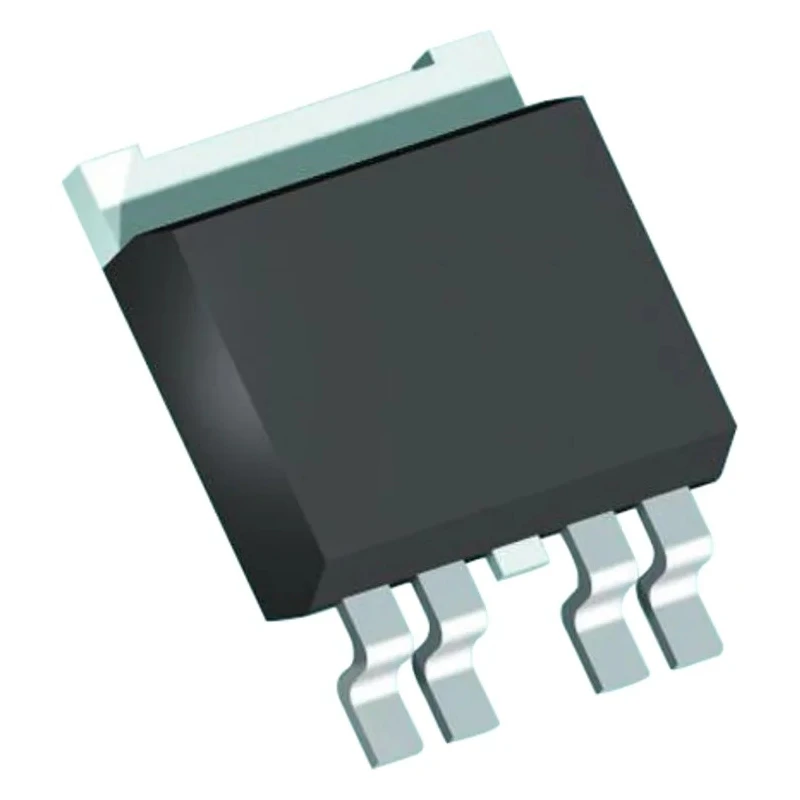

Infineon High Side Power Switch IC Single Channel 65A Current 5-Pin TO-252 BTS5012SDAAUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.3mm |
| Length | 6.5mm |
| Model | BTS5012SDAAUMA1 |
| Width | 6.22mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BTS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 65A |
| Number of outputs | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 5.50V |
| Switch On Resistance RdsOn | 32mΩ |
Key Features
- Operates with supply voltage from 5.5V to 20V.
- Incorporates overload, short-circuit, thermal shutdown and overvoltage protection.
- Features low switch on resistance of 32 milliohms for efficient power handling.
- Designed for operation from -40°C to 150°C ensuring reliability under harsh conditions.
- Compact surface mount TO-252 package with dimensions 6.5mm×6.22mm×2.3mm.
- Meets Automotive AEC standard and is RoHS compliant.
- Includes electrostatic discharge protection enhancing device robustness.
- Ideal for automotive and industrial power management applications.
Product Description
Infineon BTS5012SDAAUMA1 is a PROFET smart high-side power switch IC designed to provide robust power switching with integrated protections. It features a single channel capable of switching currents up to 65A, making it suitable for demanding automotive and industrial applications that require reliable high current switching.
The device operates within a voltage range of 5.5 to 20 volts, optimized for surface mount applications using its compact TO-252 5-pin package measuring 6.5mm in length, 6.22mm width, and 2.3mm height. It effectively handles power with a low on-resistance of 32 milliohms, minimizing energy losses and heat generation.
Safety and reliability are ensured through multiple protective features including overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, and enhanced electrostatic discharge (ESD) resilience. It conforms to RoHS standards and the automotive AEC standard, highlighting its suitability for automotive electronics.
The BTS series devices from Infineon are designed to simplify power management in complex systems by integrating smart protective functionalities and enabling safer operation with minimal external components. Typical use cases include automotive body electronics, industrial motor controls, and power distribution systems.
Operates with supply voltage from 5.5V to 20V. Incorporates overload, short-circuit, thermal shutdown and overvoltage protection. Features low switch on resistance of 32 milliohms for efficient power handling. Designed for operation from -40°C to 150°C ensuring reliability under harsh conditions.
Compact surface mount TO-252 package with dimensions 6.5mm×6.22mm×2.3mm. Meets Automotive AEC standard and is RoHS compliant. Includes electrostatic discharge protection enhancing device robustness. Ideal for automotive and industrial power management applications.
Explore more Infineon Power Switch ICs and power management solutions in the EnvMart catalog to find components that meet your design needs.
