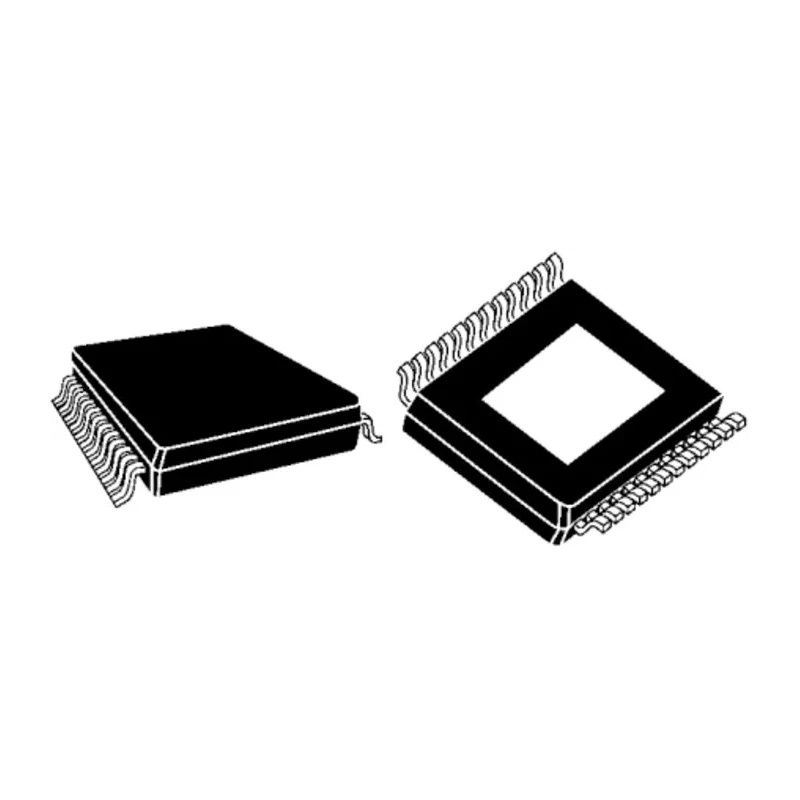

STMicroelectronics High Side 1 Driver Power Switch IC 12-Pin PowerSSO VN5016AJTR-E
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 5mm |
| Model | VN5016AJTR-E |
| Width | 4mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | VIPower M0-5 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerSSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 60A |
| Number of outputs | 1 |
| Standards/Approvals | 2002/95/EC |
| Pin Count | 12 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 4.5V |
| Switch On Resistance RdsOn | 32mΩ |
Key Features
- Low switch on resistance of 32mΩ for efficient power switching.
- Operates at supply voltages from 4.5V to 36V.
- Supports a high operating current up to 60A for heavy load applications.
- Wide operating temperature range from -40°C to 150°C suitable for harsh environments.
- Compact PowerSSO 12-pin surface mount package with dimensions 5mm x 4mm x 1.65mm.
- Compliant with RoHS directive 2002/95/EC ensuring environmental safety.
- Designed for high reliability in automotive and industrial power switch scenarios.
- Single output and input configuration for straightforward control and switching.
Product Description
STMicroelectronics VN5016AJTR-E is a high side 1 driver power switch integrated circuit designed to safely drive high currents in resistive, inductive, and capacitive grounded loads. Packaged in a compact 12-pin PowerSSO surface-mount format with a height of 1.65mm, this IC offers a robust low on-resistance power switch combined with accurate analogue circuitry for diagnostic, protection, and control functions.
The device supports an operating current of up to 60A within a wide supply voltage range of 4.5V to 36V, making it suitable for demanding automotive and industrial environments. The temperature operating range spans from -40°C to 150°C which allows reliable use under harsh conditions. This part is RoHS compliant according to the 2002/95/EC directive ensuring environmental compatibility.
Featuring a single output and input topology, the VN5016AJTR-E is designed for ease of integration in power management circuits. Typical applications include load switching and protection in automotive systems, industrial machinery, and other domains requiring intelligent power switch control.
Low switch on resistance of 32mΩ ensures minimal power loss and heat generation. Single output and input configuration provides precise and reliable switching. Surface mount PowerSSO package enables compact PCB designs and efficient heat dissipation.
Wide operating temperature and supply voltage ranges accommodate diverse environments. Robust design for inductive and capacitive loads enhances application versatility. Compliant with automotive industry requirements though not specifically automotive standard certified.
Diagnostic and protection functions integrated for device and system safety. Morocco manufactured unit, ensuring quality production standards.
This power switch IC is ideal for industrial, automotive, and power management applications requiring safe and efficient high-current switching. It aids in enhancing production efficiency by providing reliable power control and protection in electronic designs.
