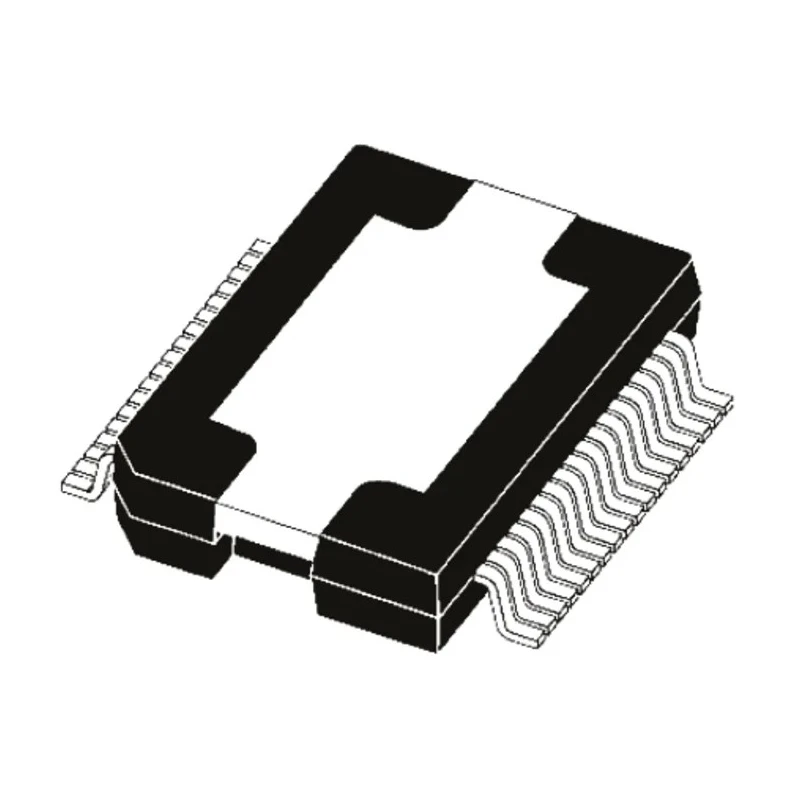

STMicroelectronics High Side Power Switch IC 36-Pin PowerSO Package 0.24Ω RdsOn 700mA ISO8200B
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.5mm |
| Length | 16mm |
| Model | ISO8200B |
| Width | 11.1mm |
| Mount Type | Surface |
| Number of inputs | 8 |
| Series | ISO8200B |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 700mA |
| Number of outputs | 8 |
| Interface Type | Parallel |
| Pin Count | 36 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 300mV |
| Switch On Resistance RdsOn | 0.24Ω |
Key Features
- Operates from 300mV minimum to 36V maximum supply voltage.
- Provides 8 parallel inputs and outputs for reliable switching.
- Supports operating current up to 700mA to handle moderate loads.
- Compact dimensions of 16mm length, 11.1mm width, and 3.5mm height.
- Wide operating temperature range from -40°C to 125°C for harsh environments.
- Meets multiple international approvals including IEC 61000-4 series and UL 1577 standards.
- Surface mount configuration ensures easy PCB integration with PowerSO package.
- Galvanic isolation enhances power management and safety in electronic designs.
Product Description
STMicroelectronics ISO8200B is a high side power switch IC featuring 8 outputs with a low on resistance of 0.24Ω. Packaged in a compact 36-pin PowerSO format, this IC is designed for surface mounting in power management applications. It operates over a wide voltage range from 300mV to 36V and supports an operating current of 700mA, making it suitable for controlling moderate power loads.
The device’s dimensions are 16mm in length, 11.1mm in width, and 3.5mm in height, allowing for space-efficient PCB layouts. It is engineered for reliability in demanding conditions with an operating temperature spectrum from -40°C to 125°C. This robustness makes it ideal for industrial, automotive, and manufacturing power control systems that require galvanic isolation for enhanced safety and noise immunity.
Compliance with international standards such as IEC 61000-4-8, UL 1577, and IEC 61000-4-5 further certifies its suitability in critical power switching roles. The parallel interface for 8 inputs and outputs enables flexible design architectures in high-side switching tasks.
Operates with a minimum supply voltage of 300mV and a maximum of 36V. Supports up to 8 outputs and inputs for multifunction control. Maintains low switch on resistance for efficient power transfer. Compact PowerSO package with easy surface mount installation.
Wide temperature operation from -40°C to 125°C for extended reliability. Meets rigorous international approvals ensuring standardized performance. Galvanic isolation improves system protection and reduces interference. Ideal for industrial automation, power management, and electronic switching.
This Power Switch IC is a core component for engineers designing efficient and safe power distribution and control circuits. Its combination of compactness, reliability, and compliance with standards facilitates rapid development and deployment in diverse applications.
Explore the extensive range of power management ICs from STMicroelectronics on EnvMart to find compatible parts and enhance your electronic designs with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 36V.
It supports an operating current of up to 700mA.
This unit has dimensions of 16mm in length, 11.1mm in width, and 3.5mm in height.
The minimum operating voltage is 300mV.
It features 8 parallel inputs and outputs for flexible control.
The switch on resistance is 0.24Ω.
It operates within a temperature range of -40°C to 125°C.
This model is packaged in a 36-pin PowerSO format for surface mounting.
It meets IEC 61000-4 series and UL 1577 standards for safety and performance.
The interface type for this model is parallel.
The country of origin for this power switch IC is India.
It is suitable for industrial automation, power management, and electronic switching applications.
