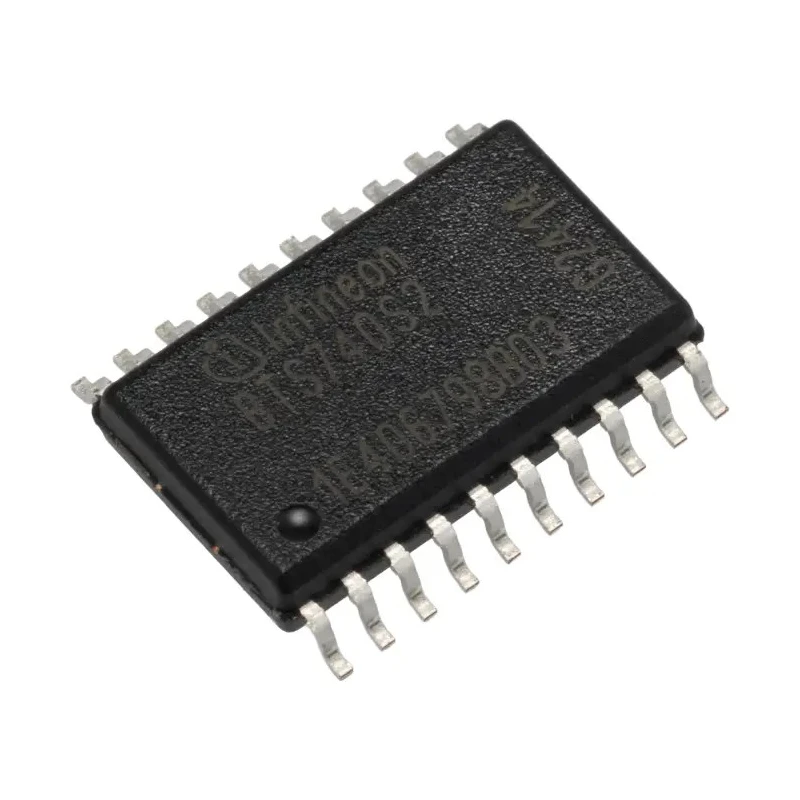

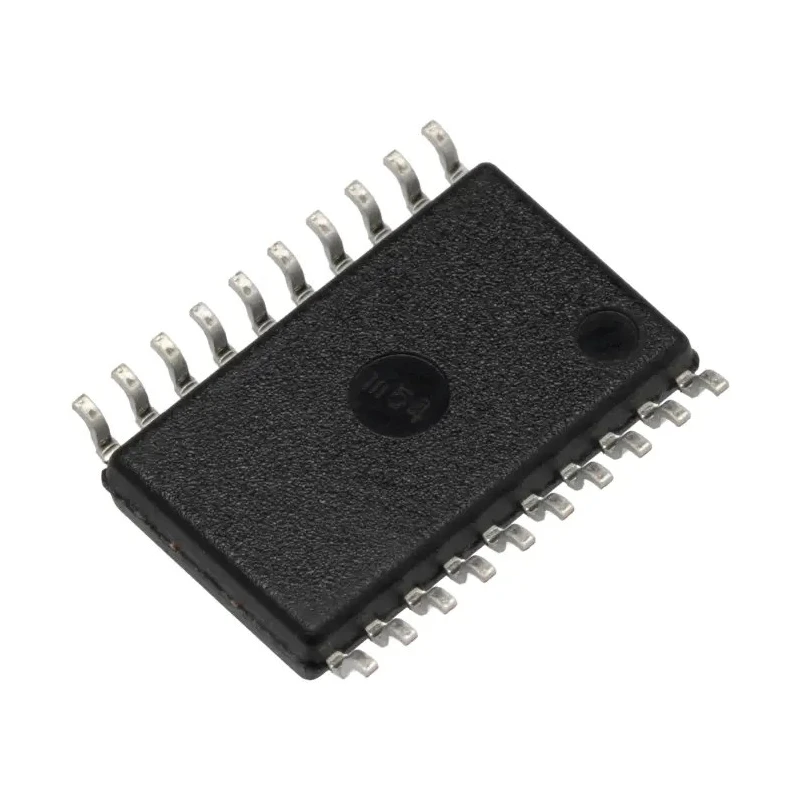

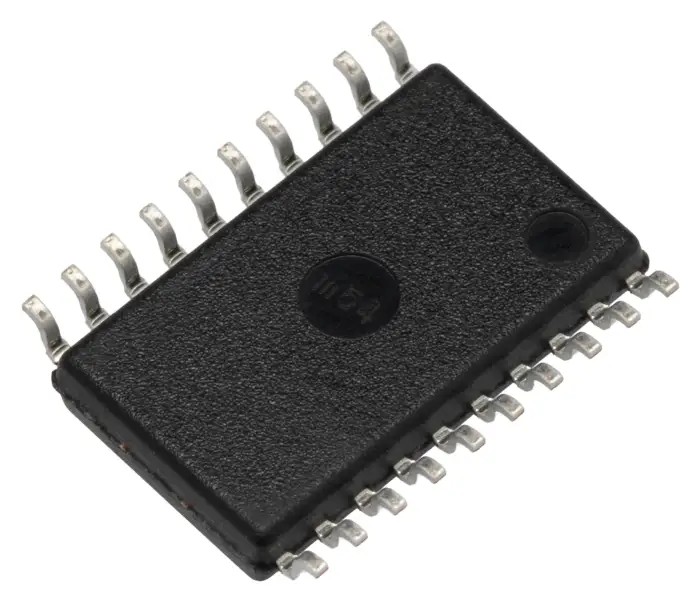

Infineon High Side 2 Output Power Switch IC 3.8W Power Rating 5-34V Supply Voltage 20-Pin DSO BTS740S2XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.65mm |
| Length | 12.8mm |
| Model | BTS740S2XUMA1 |
| Width | 10.3mm |
| Mount Type | Surface |
| Number of inputs | 2 |
| Series | BTS740S2 |
| Power Rating | 3.8W |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Pin Count | 20 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 34V |
| Minimum Supply Voltage | 5V |
| Switch On Resistance RdsOn | 30mΩ |
Key Features
- High side topology provides reliable load switching on the positive supply rail.
- Two independent outputs and inputs suitable for automotive and industrial load control.
- Low on-resistance of 30mΩ reduces conduction losses for efficient operation.
- Supports operating temperatures from -40°C up to 150°C for harsh environments.
- Compact 20-pin DSO surface-mount package ensures easy PCB integration.
- Power rating of 3.8W allows moderate continuous dissipation for vehicle electronics.
- Compliant with AEC automotive standards for robustness and reliability.
- Designed for applications such as lighting, indicator circuits, body control modules, and small motor drivers.
Product Description
Infineon BTS740S2XUMA1 is a high side power switch IC designed for automotive and industrial control applications, capable of handling a power rating of 3.8W and spanning an operating supply voltage of 5V to 34V within a compact 20-pin DSO surface-mount package.
The device integrates two independent power switch outputs with corresponding inputs, enabling precise and controlled switching of vehicle subsystems or industrial loads on the positive voltage rail. The low switch on resistance of 30mΩ minimizes conduction losses, improving energy efficiency and thermal performance.
This power switch IC operates across a broad temperature range from -40°C, supporting cold start conditions, up to 150°C for high-temperature environments such as under-the-hood vehicle installations.
Its robust design complies with the Automotive Electronics Council (AEC) standards, making the BTS740S2XUMA1 suitable for critical vehicle electronics like lighting circuits, body control modules, dashboard power distribution, and motor driver predrivers for small actuators.
High side switch topology for positive rail load control. Dual outputs with independent inputs for versatile control. Low on-resistance of 30mΩ for efficient power delivery. Wide supply voltage range 5V to 34V. Automotive-grade temperature range -40°C to 150°C.
Compact 20-pin DSO surface-mount package for automated assembly. Compliance with AEC automotive standards ensuring reliability. Ideal for lighting, body control, and actuator motor drives.
This Power Switch IC is a fundamental component for modern automotive and industrial power management systems, supporting reliable and energy-efficient load switching. Its compact DSO footprint facilitates integration on control boards, enabling streamlined design processes in electronic control units and vehicle subsystems.
Explore the extensive range of power management ICs and automotive-grade semiconductor components on EnvMart for your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 3.8W, allowing for moderate continuous dissipation in applications such as vehicle electronics.
It operates within a supply voltage range of 5V to 34V, making it suitable for various automotive and industrial applications.
The maximum operating temperature is 150°C, which supports high-temperature environments such as under-the-hood vehicle installations.
This power switch IC features two independent outputs, allowing for versatile control of loads.
The switch on-resistance (RdsOn) is 30mΩ, which helps minimize conduction losses for efficient operation.
It comes in a compact 20-pin DSO surface-mount package, facilitating easy integration onto PCBs.
The dimensions are 12.8mm in length, 10.3mm in width, and 2.65mm in height.
It complies with AEC automotive standards, ensuring robustness and reliability for automotive applications.
The minimum operating temperature is -40°C, allowing it to function effectively in cold start conditions.
It is designed for applications such as lighting circuits, body control modules, and small motor drivers.
This model has two independent inputs, enabling controlled switching of loads.
The high side topology provides reliable load switching on the positive supply rail, which is essential for various control applications.
