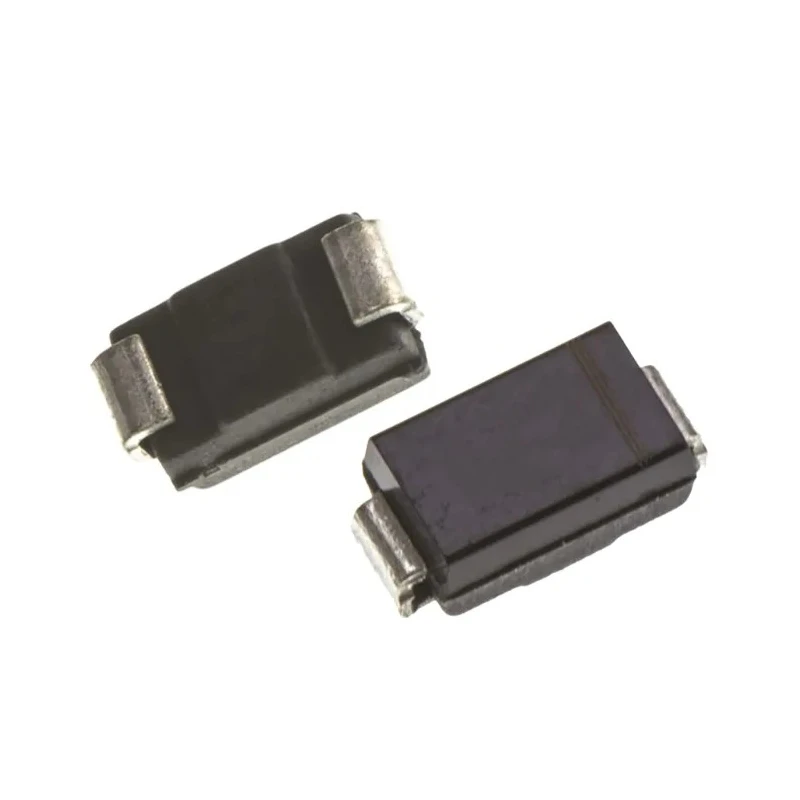

STMicroelectronics 1 Element Single 10 V Zener Diode 600 W DO-214AC (SMA) SMA6J10A-TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1 Element Single 10 V Zener Diode 600 W DO-214AC (SMA) SMA6J10A-TR

Name: STMicroelectronics 1 Element Single 10 V Zener Diode 600 W DO-214AC (SMA) SMA6J10A-TR
Brand: STMicroelectronics
SKU: 262508
Price: 0.18 USD
Availability: InStock



Category Zener Diodes Brand STMicroelectronics Condition New

Specifications

Country of Origin	Morocco
Brand	STMicroelectronics
Height	2.45mm
Length	5.35mm
Model	SMA6J10A-TR
Mount Type	Surface
Series	SMA6J
Maximum Operating Temperature	175°C
Package Type	DO-214AC (SMA)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	600W
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	200nA
Nominal Zener Voltage Vz	10V
Zener Type	Transil
Stand-off voltage range	from 5 V to 188 V

Key Features

Nominal zener voltage of 10 V ensures stable voltage regulation.
Maximum power dissipation is 600 W at 10/1000 μs pulse, suitable for transient voltage suppression.
Compact DO-214AC (SMA) package optimizes PCB space utilization.
Operation temperature range from -55°C to 175°C supports robust performance in harsh environments.
Low maximum reverse leakage current of 200 nA improves device reliability.
Designed to protect sensitive electronic equipment from electrostatic discharge and electrical overstress.
Unidirectional Transil technology offers low clamping voltage for enhanced circuit protection.
Manufactured with planar technology for high junction temperature stability and low leakage current.

Product Description

STMicroelectronics SMA6J10A-TR is a single-element Zener diode with a nominal zener voltage of 10 V, housed in a compact DO-214AC (SMA) surface mount package. It provides a maximum power dissipation of 600 W (10/1000 μs) pulse, making it ideal for protecting sensitive electronic circuits against transient voltages, electrostatic discharges, and electrical overstress events common in industrial and commercial electronics.

The device features Transil diode technology offering unidirectional clamping with low leakage current, ensuring superior protection with minimal performance degradation over extended use. Its planar technology construction enhances reliability and stability at elevated junction temperatures up to 175°C, suitable for demanding environments.

Operating over a temperature range from -55°C to 175°C, this diode is compatible with a wide variety of industrial, automotive, and electronic applications requiring robust surge voltage protection. The compact DO-214AC package reduces footprint on printed circuit boards, allowing efficient space usage in densely packed designs.

With a very low maximum reverse leakage current of 200 nA and test current of 10 mA, the SMA6J10A-TR diode balances sensitive performance and protective capability. It is designed for surface mounting with two pins, simplifying assembly and integration.

Nominal zener voltage: 10 V. Maximum pulse power dissipation: 600 W (10/1000 μs surge). Unidirectional Transil diode for effective transient suppression. Wide operating temperature range: -55°C to 175°C. Low reverse leakage current and high junction temperature stability.

Compact surface mount DO-214AC (SMA) package. Designed for protecting semiconductors and electronic components. Manufactured in Morocco ensuring high product quality.

This robust and reliable component is suitable for use in industrial electronics, telecom equipment, power supplies, computer motherboards, and automotive systems where transient voltage protection is critical. Its long operational life and effective surge suppression enhance system safety and longevity. Browse our catalog for more STMicroelectronics Zener Diodes and related semiconductor products at EnvMart.
