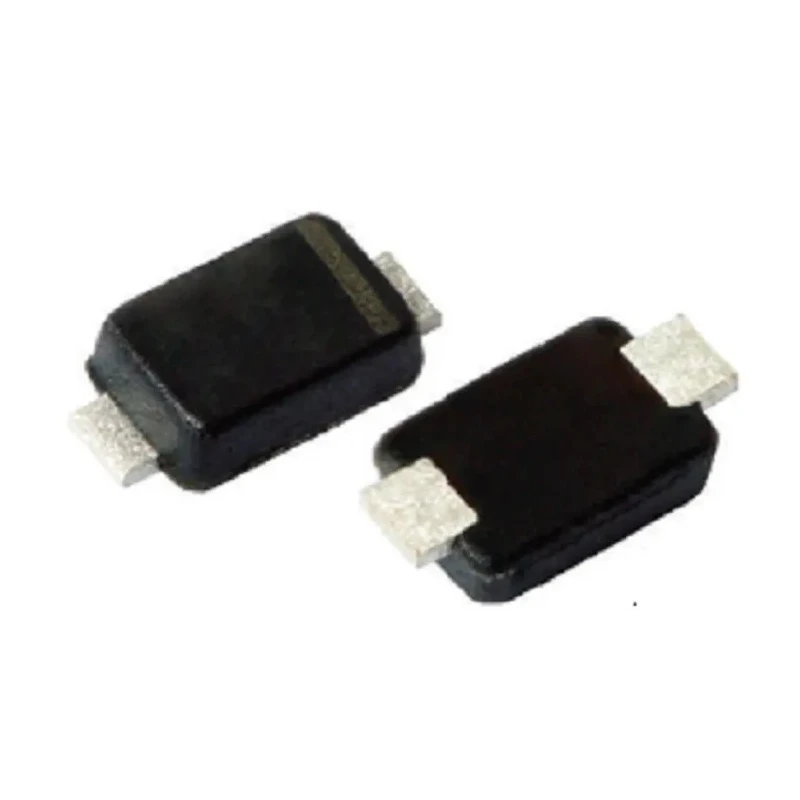

Vishay 23.77 V 500 mW General Purpose Zener Diode, Single Element, Surface Mount DO-219AC (MicroSMF) PLZ24B-HG3_A/H

Vishay PLZ24B-HG3_A/H Zener Diode is a silicon planar device designed for general purpose voltage regulation and protection. This single element diode is housed in a compact DO-219AC (MicroSMF) surface mount package, making it suitable for high-density PCB assemblies. It is capable of dissipating a maximum power of 500 mW and maintains stable zener voltage at 23.77 V with a maximum zener impedance of 35 Ω, ensuring excellent voltage regulation.

The device features a low leakage current of 200 nA and is tested at 5 mA zener current, making it highly efficient for power-sensitive electronics. Its operating temperature range spans from -55°C to 150°C, allowing reliable operation in industrial and automotive environments. The diode is RoHS compliant and meets IEC 61760-1 and IEC 61000-4-2 standards, along with AEC-Q101 automotive qualification, guaranteeing quality and durability.

Measuring 2.5 mm length and 0.6 mm height, this diode supports automated assembly processes via wave and reflow soldering, withstanding a high temperature soldering profile up to 260°C. Its surface mount design reduces board space and improves assembly efficiency.

Common applications include voltage stabilization, overvoltage protection, and signal conditioning in industrial, automotive, and consumer electronic circuits. The diode’s robust characteristics ensure stable and long-lasting performance in various electrical and electronic manufacturing sectors.

The diode delivers excellent voltage stability and low leakage current. Constructed with a silicon planar technology for durable performance. Maximum power dissipation is 500 mW, suitable for low power applications. Features a compact low-profile package measuring 2.5 mm in length and 0.6 mm in height.

Operates within a temperature range from -55°C up to 150°C for reliable performance in harsh environments. Compliant with RoHS, IEC 61760-1, IEC 61000-4-2 standards and certified AEC-Q101 automotive qualified. Ideal for industrial, automotive, and electronic circuit voltage regulation and protection applications.

Wave and reflow solderable with high-temperature soldering tolerance at terminals. Explore similar Vishay discrete semiconductor components and Zener Diodes on EnvMart for comprehensive industrial and electronic solutions.
