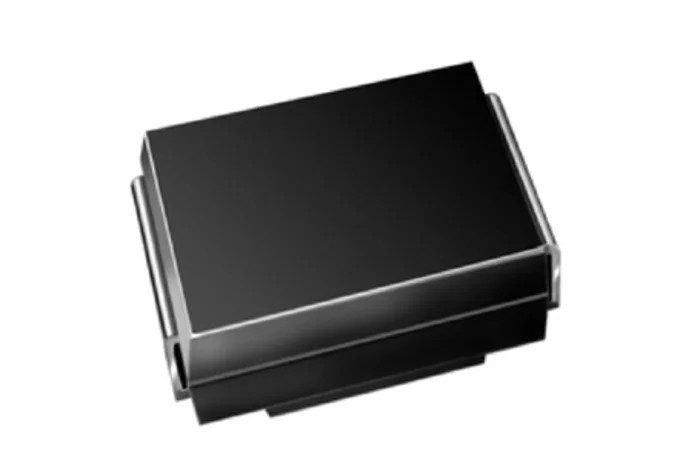

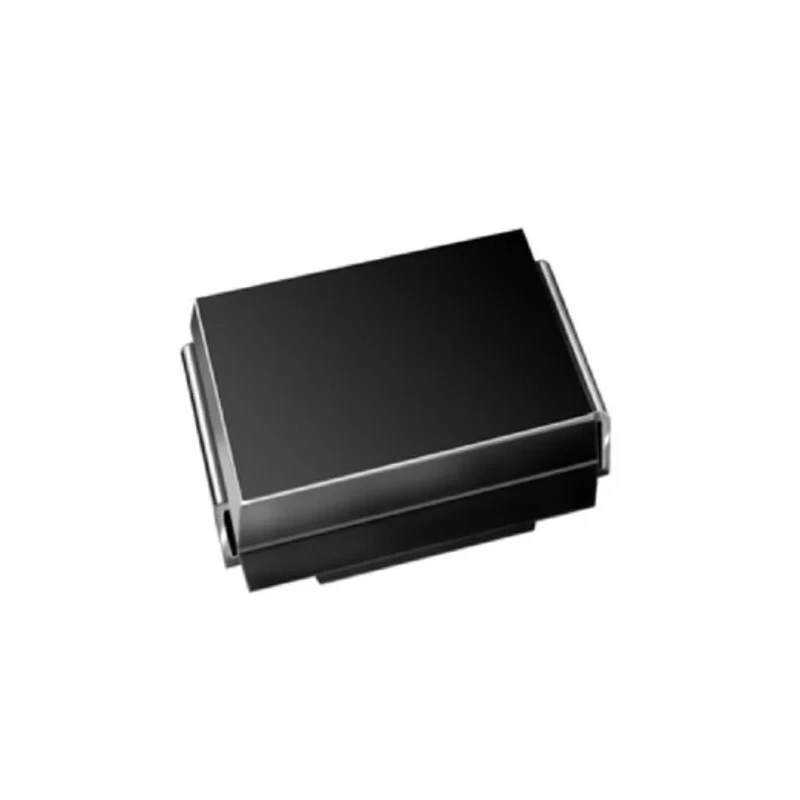

Vishay Surface Mount 27 V 1.5 W Voltage Regulator Zener Diode Single Pin DO-214AA SMZJ3799BHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.44mm |
| Length | 4.57mm |
| Model | SMZJ3799BHM3_A/H |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.5W |
| Diode Configuration | Single |
| Test Current It | 13.9mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 27V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 23Ω |
Key Features
- This diode features a nominal Zener voltage of 27 V with a tolerance of ±5%.
- It has a maximum power dissipation of 1.5 W for robust voltage regulation.
- The device comes in a compact surface mount DO-214AA package with 2 pins.
- Maximum operating temperature is 150°C, minimum is -55°C making it suitable for harsh environments.
- The diode has a low Zener impedance of 23 Ω ensuring stable voltage regulation.
- It is glass passivated for enhanced durability and performance.
- The test current for the Zener voltage is 13.9 mA.
- Maximum reverse leakage current is limited to 5 μA.
Product Description
Vishay SMZJ3799BHM3_A/H is a high-quality surface mount Zener diode designed for voltage regulation applications with a nominal voltage of 27 V and power dissipation capability of 1.5 W. It is housed in a low-profile DO-214AA package that allows automated PCB assembly, ideal for industrial and electronic protection circuits.
This diode features a single chip element configuration providing reliable and stable voltage regulation with a Zener voltage tolerance of ±5%. The device is glass passivated for enhanced junction protection, ensuring long-term reliability in harsh electrical environments.
The diode operates over a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive applications. With maximum reverse leakage current limited to 5 μA and Zener impedance of 23 Ω, it ensures minimal power loss and accurate voltage regulation.
The SMZJ3799BHM3_A/H meets RoHS requirements and complies with automotive standard AEC-Q101, ensuring suitability for automotive-grade electronics. Its compact size of 4.57 mm length and 2.44 mm height facilitates use in space-constrained surface mount device assemblies.
Nominal Zener voltage: 27 V with ±5% tolerance. Maximum power dissipation of 1.5 W. Surface mount DO-214AA 2-pin package. Operating temperature range from -55°C to 150°C. Low Zener impedance of 23 Ω for stable regulation.
Glass passivated chip junction for durability. Test current of 13.9 mA at nominal voltage. Maximum reverse leakage current of 5 μA. Compliant with RoHS and automotive standard AEC-Q101. Compact dimensions suitable for automated PCB assembly.
This Zener diode is widely used in industrial, automotive, and general electronic circuits for voltage regulation and protection. Its reliable performance, robust construction, and compliance with standards make it a dependable component in power supply and protection modules.
