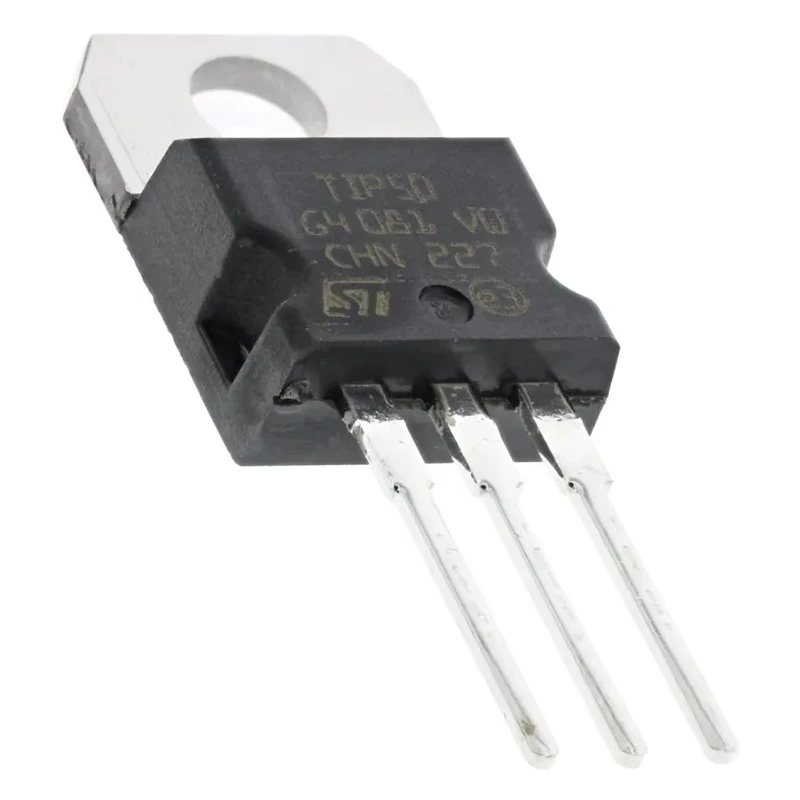

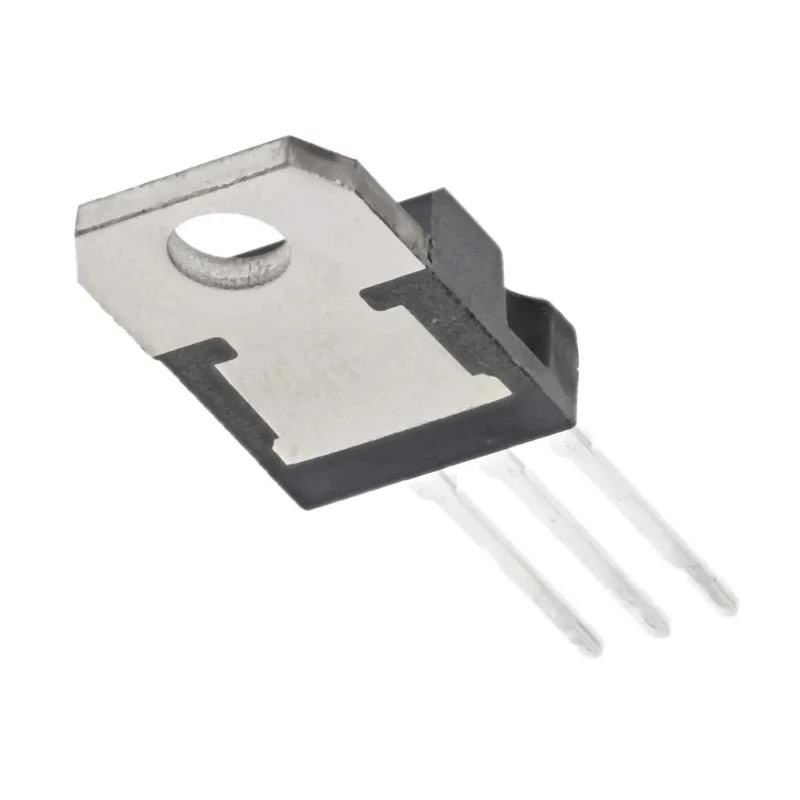

STMicroelectronics 1 A NPN Bipolar Transistor 400 V TO-220 Package TIP50

STMicroelectronics TIP50 is a high voltage NPN bipolar transistor designed for power switching and amplification applications. With a maximum collector-emitter voltage of 400 V and a maximum collector current of 1 A, it is suitable for industrial, electronic, and consumer power control circuits.

This transistor comes in a TO-220 package that facilitates through-hole mounting, making it compatible with various printed circuit boards and heatsink attachments. Featuring a maximum power dissipation of 2 W, the TIP50 effectively manages thermal loads in demanding environments.

The device's electrical characteristics include a minimum DC current gain of 10 and a maximum transition frequency of 10 MHz, making it well-suited for moderate speed switching applications in electronic systems. It operates reliably within a temperature range of 0°C to 150°C, suitable for a variety of thermal conditions in industrial and consumer electronics.

Its compact physical dimensions (29.75 mm height, 4.6 mm width, and 10.4 mm length) enable versatile integration in space-constrained designs. The 3-pin configuration supports standard transistor interfacing, making it easy to implement into existing circuit designs.

This STMicroelectronics bipolar transistor is ideal for semiconductor applications requiring reliable high voltage switching such as power supplies, motor drivers, and general purpose electronic circuits. Its robust specifications cater to both commercial and industrial electronics markets.

Maximum DC collector current of 1 A for power applications. High voltage collector-emitter rating of 400 V for switching. TO-220 package type for easy mounting and heat dissipation. NPN transistor polarity with single transistor configuration.

Maximum power dissipation of 2 W to handle moderate loads. DC current gain minimum of 10 and transition frequency up to 10 MHz. Operating temperature range from 0 to 150°C for reliability. Compact size for various electronic designs.

Three-pin configuration for standard connectivity. Explore more in the Semiconductor and Bipolar Transistors category for your industrial and electronic component needs at EnvMart.
