| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | MSB92ASWT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Standards/Approvals | RoHS Pb-Free |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -300V |
| Minimum DC Current Gain hFE | 120 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V dc |
| Maximum Collector Base Voltage VCBO | -300V |
| Maximum Power Dissipation Pd | 150mW |
| Transistor Configuration | Single |

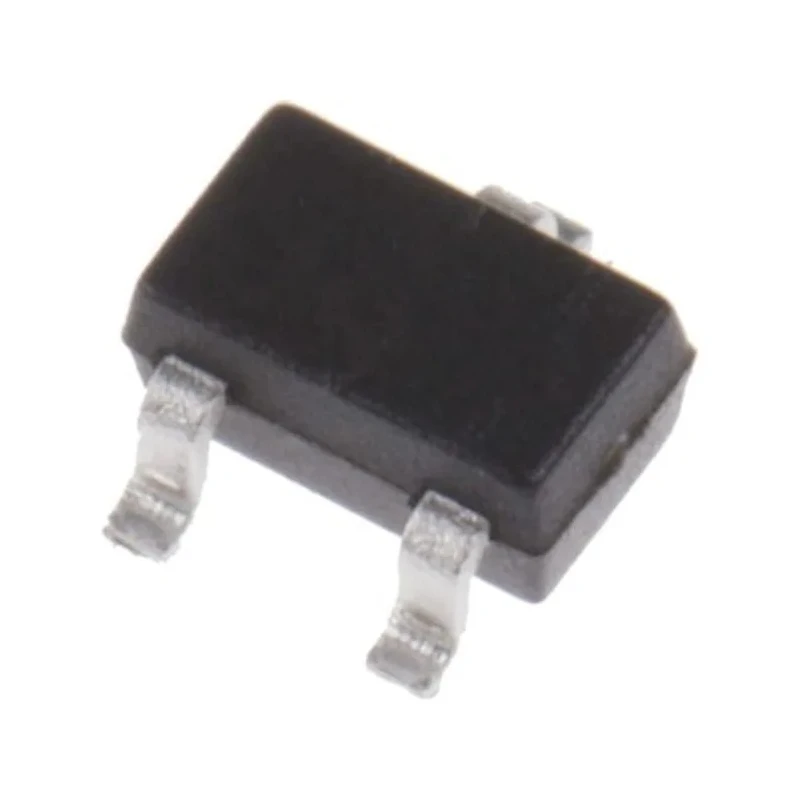

onsemi MSB92ASWT1G is a high voltage digital transistor designed for general purpose amplifier applications and other circuit functions requiring reliable switching and signal amplification. As a PNP bipolar transistor, it features a collector-emitter voltage rating of -300V, ensuring high voltage handling in diverse electronic designs. The device supports a maximum collector-base voltage of -300V and dissipates up to 150 mW of power, making it suitable for low power applications while maintaining robust performance.
Its SC-70/SOT-323 surface-mount package is optimized for modern PCB assembly, allowing designers to integrate it efficiently in compact layouts. The MSB92ASWT1G offers a minimum DC current gain (hFE) of 120, ensuring efficient signal amplification even in demanding environments. The transistor supports a maximum emitter-base voltage of 5V DC, and the 3-pin configuration simplifies connection in both new and existing designs.
Measuring just 2.2mm in length, 1.35mm in width, and 1.1mm in height, this model fits seamlessly into highly dense circuit boards, supporting the trend toward miniaturization in electronic assemblies. The maximum operating temperature of 150°C extends its reliability for industrial and commercial use, including instrumentation, control systems, consumer electronics, and signal processing applications.
Applications include general purpose signal amplification, switching functions, and integration into PCB assemblies where surface mount design is critical. The device also facilitates quick assembly due to its standard package and pinout. It is Pb-Free and RoHS compliant, catering to environmentally responsible manufacturing needs.
Industrial users benefit from the stable high voltage operation in amplifier circuits, laboratory equipment, sensor interfaces, and control systems. The device's surface-mount design makes it compatible with automated assembly lines in manufacturing, commercial hardware, and embedded systems.
Explore more surface mount Bipolar Transistors and digital transistors from onsemi at EnvMart for advanced electronics and industrial solutions.
