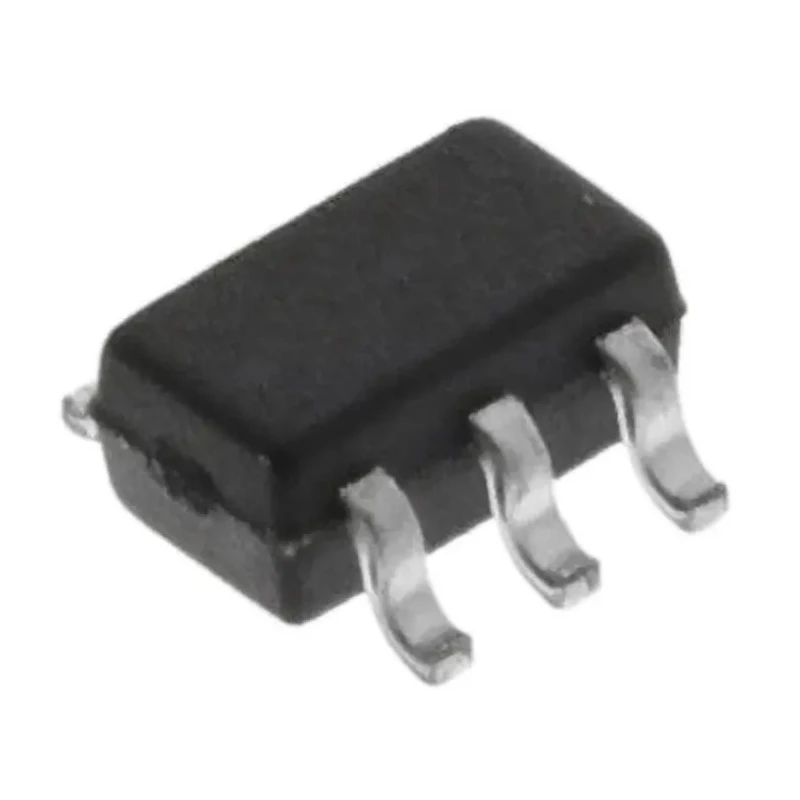

onsemi Digital Transistor 50 V NPN 100 mA Surface Mount SOT-363, 6-Pin MUN5232DW1T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Digital Transistor 50 V NPN 100 mA Surface Mount SOT-363, 6-Pin MUN5232DW1T1G

Name: onsemi Digital Transistor 50 V NPN 100 mA Surface Mount SOT-363, 6-Pin MUN5232DW1T1G
Brand: onsemi
SKU: 82779
Price: 0.05 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	MUN5232DW1T1G
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-363
Standards/Approvals	Pb-Free, RoHS
Pin Count	6
Maximum Continuous Collector Current Ic	100mA
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	15
Transistor Polarity	NPN
Maximum Collector Emitter Saturation Voltage VceSAT	0.25V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	385mW
Transistor Configuration	Dual
Nexperia Digital Transistor, 100 mA NPN, 50 V, 6-Pin UMTBrand	Nexperia

Key Features

50 V NPN digital transistor designed for compact circuit integration.
Maximum continuous collector current rating of 100 mA for versatile signal switching.
Surface mount SOT-363 package allows for efficient PCB design in automotive and electronic applications.
Incorporates integrated bias resistors to minimize component count and save board space.
Dual transistor configuration suited for high-density applications.
RoHS-compliant and Pb-free for environmentally friendly electronics manufacturing.
Automotive standard AEC-Q101 ensures reliability in vehicle electronics.
Maximum power dissipation of 385 mW supports demanding signal and switching conditions.

Product Description

The onsemi MUN5232DW1T1G Digital Transistor is a compact, high-performance NPN device designed for integration into a variety of electronic circuits. This model provides a maximum collector-emitter voltage of 50 V and supports a continuous collector current of up to 100 mA, making it suitable for numerous signal switching applications.

Featuring a surface mount SOT-363 package, this transistor offers efficient PCB space management, especially useful in automotive, industrial, and commercial electronic designs. The device uses a dual transistor configuration with integrated bias resistor networks, significantly reducing the number of discrete components required when compared to traditional transistor setups. This not only simplifies circuit design but also improves reliability and reduces assembly costs.

RoHS-compliancy and Pb-free construction ensure compatibility with modern manufacturing standards for environmental safety. The automotive standard AEC-Q101 qualification allows for deployment in automotive electronics where high reliability and rugged performance are required. With a maximum power dissipation of 385 mW and a pin count of 6, this transistor is a robust choice for circuits demanding substantial switching capabilities in a small form factor.

The integrated bias network contains both series base and base-emitter resistors, streamlining logic-level circuit integration and simplifying design and layout processes. Its minimum DC current gain of 15 and low saturation voltage further enhance operational efficiency.

Applications for the MUN5232DW1T1G include automotive circuit boards, industrial control panels, portable electronic devices, and general-purpose signal processing where board space and component minimization are priorities.
