Epson 50MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount CA Package Q3309CA40004912

Free Delivery in India | Lowest Global Shipping Charges

Epson 50MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount CA Package Q3309CA40004912

Name: Epson 50MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount CA Package Q3309CA40004912
Brand: Epson
SKU: 188921
Price: 7.03 USD
Availability: InStock



Category Oscillator Brand Epson Condition New

Specifications

Country of Origin	China
Brand	Epson
Height	1.4mm
Length	7mm
Model	Q3309CA40004912
Width	5mm
Mount Type	Surface
Series	SG-8002
Maximum Operating Temperature	70°C
Output Frequency	50MHz
Package Type	CA
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	0.7V
Oscillator Type	XO
Output Level	CMOS
EPSON, 50MHz XO Oscillator, ±50ppm CMOS, 4-Pin SMD Q3306JA41009001Brand	EPSON

Key Features

The oscillator operates at a fixed output frequency of 50 MHz.
Contains a 4-pin surface mount CA type package suitable for PCB mounting.
Output signal level is CMOS compatible for low power digital circuits.
Operating temperature range is from -20°C up to 70°C for reliability in various environments.
Maximum supply voltage tolerated is 0.7 V for safe operation.
The SG-8002 series oscillator uses PPL technology for wide frequency output options.
Ceramic casing provides durability and standard RoHS compliance.

Product Description

The Epson Q3309CA40004912 XO Oscillator is a high-precision 50MHz crystal oscillator designed for electronic applications requiring stable timing signals.

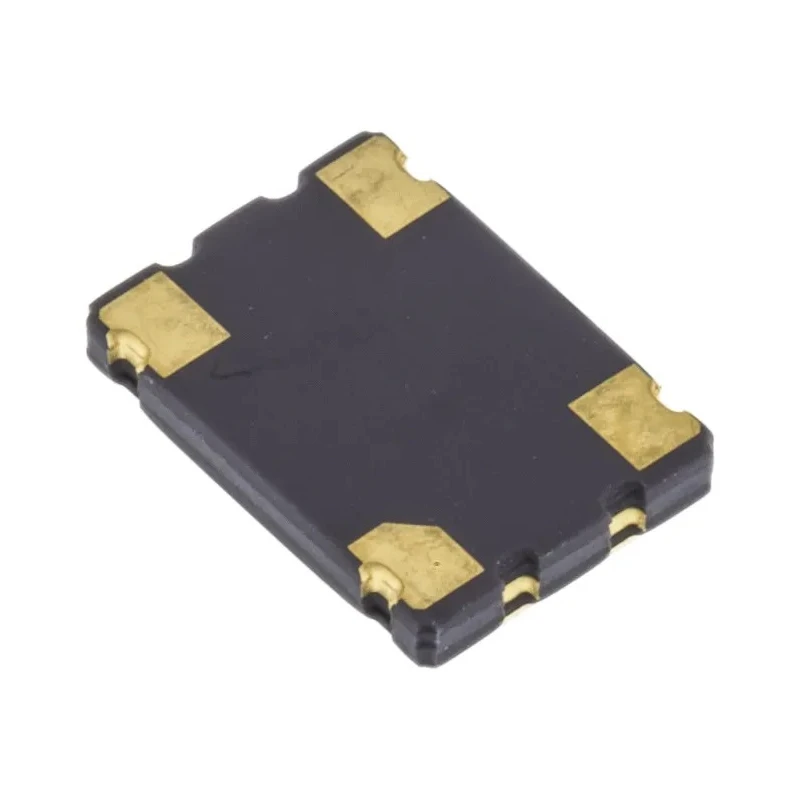

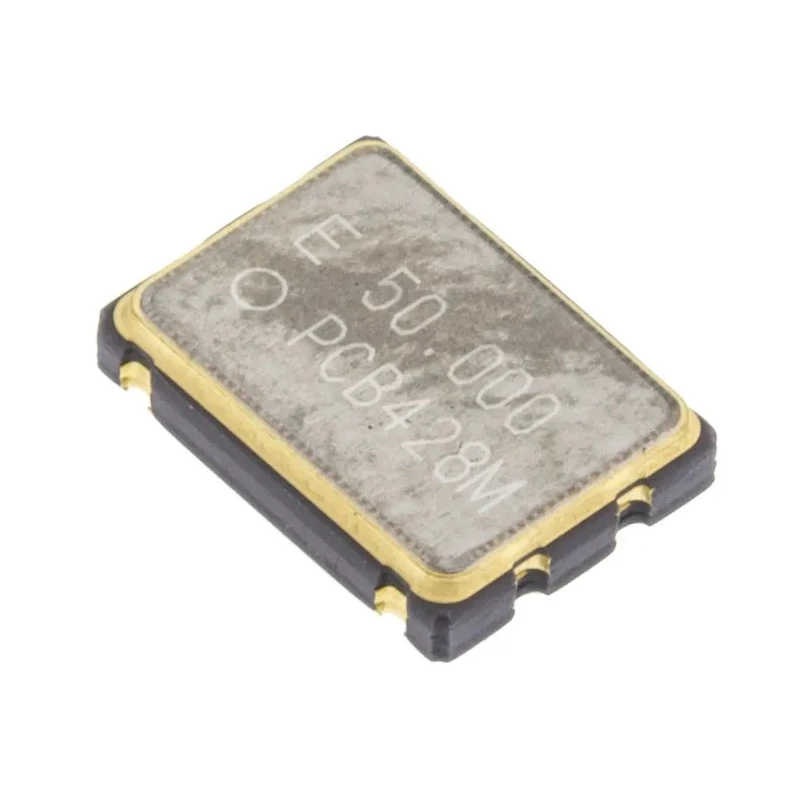

This surface mount device features a 4-pin ceramic (CA) package measuring 7 mm in length, 5 mm in width, and 1.4 mm in height. It delivers a CMOS output level with a maximum supply voltage of 0.7V, making it suitable for low-power digital circuits.

The oscillator maintains a frequency stability of ±50 ppm, providing reliable and accurate frequency output across an operating temperature range from -20°C to 70°C. It belongs to the SG-8002 series, which incorporates PPL technology to support a wide range of frequencies, including 50MHz. The unit is RoHS compliant and manufactured in China.

This crystal oscillator is ideal for use in telecommunications, automotive electronics, industrial control systems, and consumer electronic devices where precision timing is critical.

Fixed frequency of 50 MHz ensures consistent timing signals. Compact 4-pin surface mount design enables easy PCB integration. Ceramic case enhances durability and thermal stability. Wide operating temperature range suited for diverse environments.

CMOS output for compatibility with modern digital circuits. Low maximum supply voltage reduces power consumption. RoHS compliant, supporting environmentally responsible manufacturing. Explore the range of Epson Oscillators in the Electronics Components category at EnvMart for reliable and precise frequency solutions.
