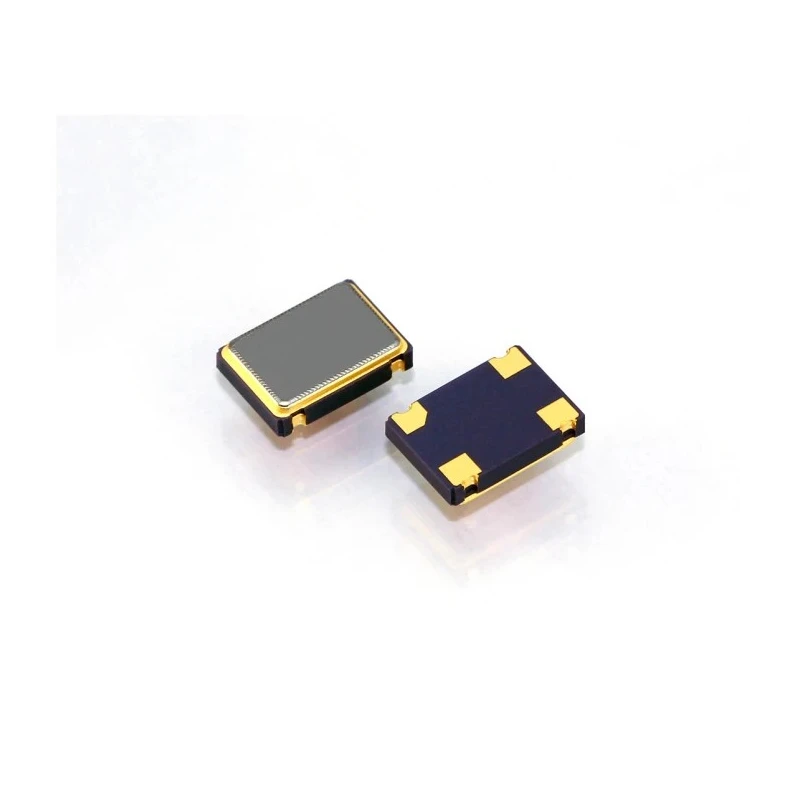

Ecliptek 4MHz XO Oscillator 20 ppm CMOS 4-Pin Surface Mount EC2620TS-4.000M TR

Free Delivery in India | Lowest Global Shipping Charges

Ecliptek 4MHz XO Oscillator 20 ppm CMOS 4-Pin Surface Mount EC2620TS-4.000M TR

Name: Ecliptek 4MHz XO Oscillator 20 ppm CMOS 4-Pin Surface Mount EC2620TS-4.000M TR
Brand: Ecliptek
SKU: 170616
Price: 1.55 USD
Availability: InStock



Category Oscillator Brand Ecliptek Condition New

Specifications

Country of Origin	Korea
Brand	Ecliptek
Operating Temperature	-10°C to 70°C
Package	4-SMD, No Lead
Height	1.8mm
Length	7mm
Model	EC2620TS-4.000M TR
Mounting Type	Surface Mount
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Output type	CMOS
Series	EC26
Maximum Operating Temperature	85°C
Output Frequency	4MHz
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Pin Count	4
Maximum Supply Voltage	3.3V
Oscillator Type	XO
Output Level	CMOS

Key Features

This oscillator features a CMOS output level suitable for various electronic devices.
It incorporates a surface mount 4-pin package for compact PCB designs.
The product operates reliably within a temperature range of -10°C to 85°C.
Maximum supply voltage is 3.3 volts, ensuring low power consumption.
The oscillator includes a standby function with tri-state high impedance pin connection.
It is supplied in tape and reel packaging to support automated assembly.
Compact dimensions of 7mm length, 5mm width, and 1.8mm height suit space-constrained applications.

Product Description

Ecliptek EC2620TS-4.000M TR 4MHz XO Oscillator is a high-precision quartz crystal clock oscillator designed for use in electronics requiring stable timing and frequency control. It features a frequency stability of ±20 ppm, making it ideal for demanding applications in industrial, telecommunications, computing, and embedded system environments.

This oscillator outputs a CMOS-level signal through a 4-pin surface mount package, enabling seamless integration with modern surface-mounted PCB assemblies. Its compact size of 7mm x 5mm x 1.8mm allows designers to utilize limited board space efficiently.

Operating reliably over a temperature range from -10°C to 85°C, this oscillator is suitable for a wide variety of climates and conditions. It supports a maximum supply voltage of 3.3 V, which contributes to energy-efficient operation and compatibility with low-voltage systems.

A notable feature is its standby (power-down) function enabled by the tri-state high impedance pin, allowing the oscillator to be disabled for power saving without affecting the device circuitry.

The EC2620TS series oscillator is packaged in tape and reel format, facilitating automated pick-and-place manufacturing processes and ensuring high reliability in mass production. This product's precision and robustness make it suitable for industrial control systems, communication devices, instrumentation, and consumer electronics.

It offers stable and reliable timing references essential for data acquisition, signal processing, and protocol synchronization tasks. The surface mount configuration supports automated assembly lines, enhancing manufacturing efficiency and reducing production costs.

Choose Ecliptek's EC2620TS-4.000M TR Oscillator for quality, durability, and precision in your electronic designs. Explore more components and solutions in the Electronics & Electricals category at EnvMart.
