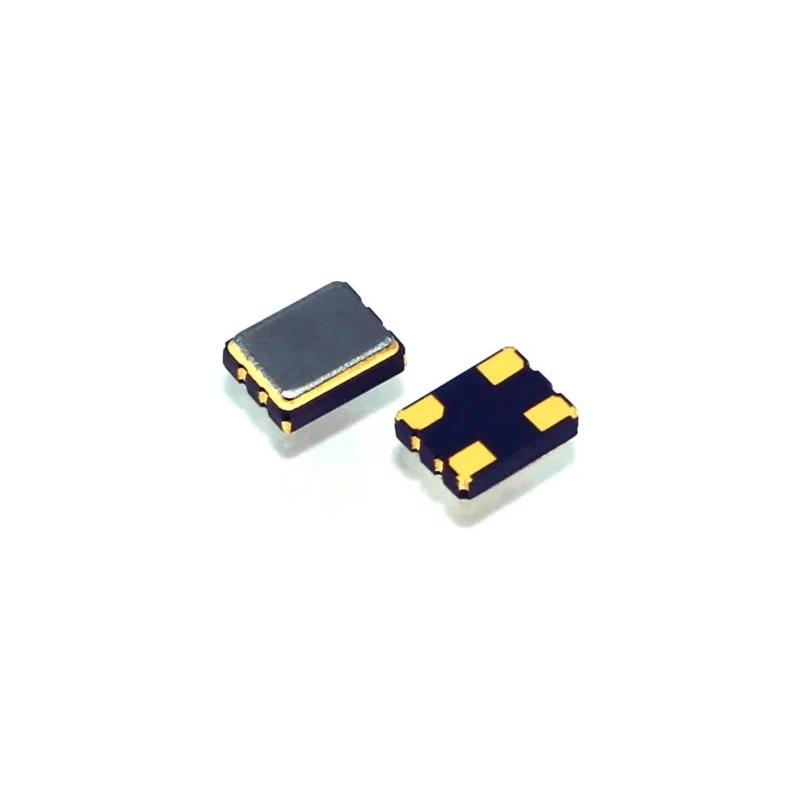

Ecliptek 25MHz XO Oscillator 25 ppm CMOS 4-Pin Surface Mount EB13E2J2H-25.000M TR

Ecliptek EB13E2J2H-25.000M TR is a 25MHz XO Oscillator offering 25 ppm frequency stability with CMOS output in a 4-pin surface mount package. It supports a maximum supply voltage of 3.3V and is designed for high reliability in electronic circuits.

This oscillator series utilizes quartz crystal technology to provide precise clock signals for industrial, electronics manufacturing, and consumer electronics applications. The compact footprint of 3.2mm by 2.5mm by 0.9mm allows for density-optimized PCB layouts.

Featuring tri-state logic control and tape and reel packaging, the device is optimized for automated pick-and-place assembly lines and high-volume manufacturing. The wide operating temperature of up to 200°C makes it suitable for harsh environments and industrial grade electronics.

This device does not have specific Automotive standards certification but boasts robust performance and reliability inherent with Ecliptek quartz technology. This oscillator operates at a nominal frequency of 25MHz with frequency stability of ±25 ppm.

Tri-state logic control enables flexible signal management. Compact 4-pin surface mount package for efficient PCB integration. Tape and reel packaging supports automated manufacturing processes. Operational range up to 200°C accommodates industrial and commercial applications.

Maximum supply voltage of 3.3V ensures low power consumption. Manufactured in Korea, Republic Of, reflecting quality standards. Typical applications include electronic equipment, industrial controls, communications devices, and other systems requiring precise clock signals.
