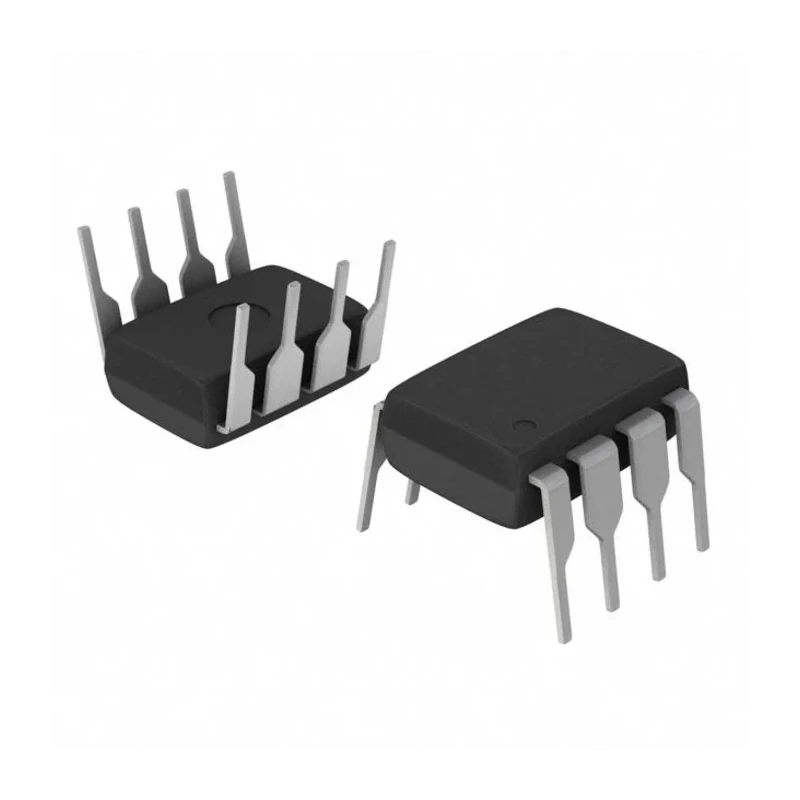

Renesas Electronics PS9513-AX DC Input Photocoupler Through Hole 8-Pin DIP PS9513-AX

Renesas Electronics PS9513-AX DC Input Photocoupler is a high-performance optocoupler designed with an AlGaAs LED input and photodiode output integrated on a single chip within an 8-pin DIP package. Its through-hole mount configuration facilitates easy assembly on printed circuit boards.

This device features a maximum forward voltage of 2.1 V and a maximum input current of 5 mA, providing reliable electrical input characteristics. It delivers a high isolation voltage of 1130 V, ensuring strong protection between input and output circuits.

The PS9513-AX demonstrates a typical rise and fall time of 4 microseconds, which guarantees a fast response suitable for industrial and electronic applications, including inverter power module (IPM) drive systems. It achieves low pulse width distortion and high common mode transient immunity, enhancing signal integrity.

The device operates reliably within a temperature range from -40°C to 100°C, making it suitable for a variety of environments. Current transfer ratio varies from a minimum of 44% to a maximum of 110%, enabling flexible performance tuning.

This RoHS compliant, UL approved, and lead-free photocoupler is packaged in tape and reel form, optimized for automated manufacturing processes. Through hole mount type suitable for easy PCB insertion. Features photodiode output with 8-pin DIP package.

Maximum forward voltage of 2.1 V ensures efficient operation. Typical rise and fall times of 4 microseconds for fast response. Isolation voltage rated at 1130 V for robust electrical isolation. Operating temperature range from -40°C to 100°C.

Maximum input current of 5 mA supports precise control. Current transfer ratio ranges between 44% minimum and 110% maximum. UL approved, Pb-free product meeting quality and environmental standards. Packaged in tape and reel format for automated assembly.

This photocoupler is ideal for use in industrial electronics, power electronics, automation systems, and manufacturing equipment where electrical isolation and signal integrity are critical. Explore more high-quality Electronic Components from Renesas Electronics in the Electronics Components category at EnvMart.
