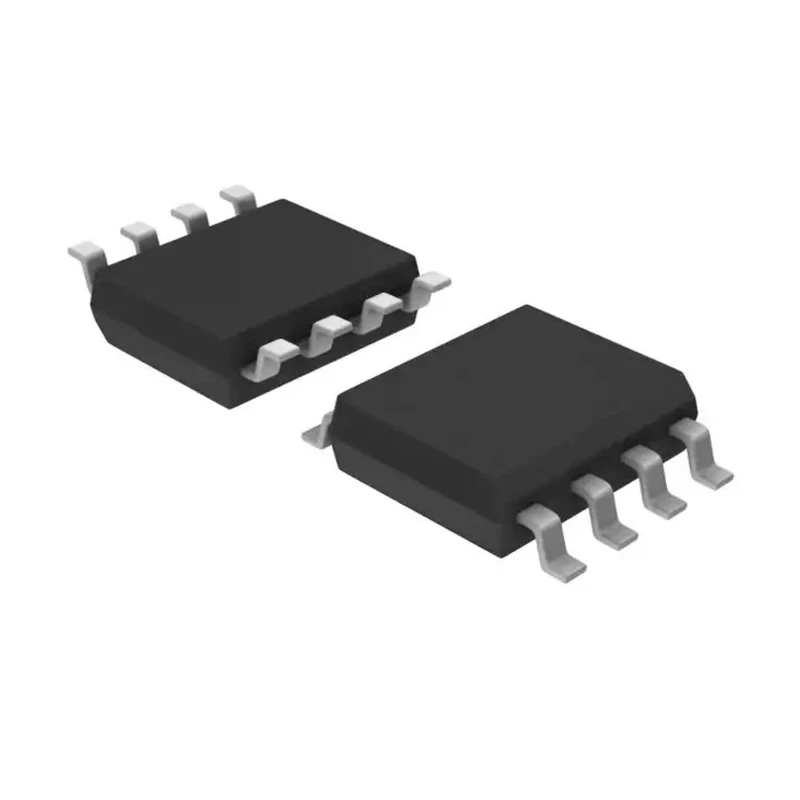

Renesas Electronics DC Input 2-Channel Photocoupler Surface Mount 8-Pin SO PS9821-2-F3-AX

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics DC Input 2-Channel Photocoupler Surface Mount 8-Pin SO PS9821-2-F3-AX

Name: Renesas Electronics DC Input 2-Channel Photocoupler Surface Mount 8-Pin SO PS9821-2-F3-AX
Brand: Renesas Electronics
SKU: 203347
Price: 5.85 USD
Availability: InStock



Category Electronic Components Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Model	PS9821-2-F3-AX
Packaging	Tape & Reel
Mount Type	Surface
Series	PS
Maximum Operating Temperature	85°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	12.5mA
Number Of Channels	2
Standards/Approvals	UL
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	20μs
Typical Fall Time	5μs
Isolation Voltage	566V

Key Features

This photocoupler features a surface mount 8-pin SO package.
Equipped with a GaAlAs LED and integrated photodetector IC.
Offers high common mode transient immunity suitable for industrial use.
Supports a maximum forward voltage of 1.8 V and maximum input current of 12.5 mA.
Typical rise and fall times are 20μs and 5μs respectively for fast response.
Isolation voltage up to 566 V ensures safe signal transfer.
Operating temperature range from -40°C to 85°C for diverse environments.
Packaged on tape and reel facilitating automated assembly.

Product Description

Renesas Electronics PS9821-2-F3-AX is a DC input 2-channel photocoupler housed in a compact surface mount 8-pin SO package. It integrates a GaAlAs light-emitting diode input and a photodetector IC combining a photodiode and signal processor, enabling reliable and low distortion signal isolation.

Engineered for high-speed applications, this photocoupler exhibits typical rise and fall times of 20μs and 5μs respectively, providing swift and accurate switching performance. It is designed to deliver high common mode transient immunity which improves noise rejection, making it well suited for industrial and electronic control equipment.

The device operates safely across a wide temperature range from -40°C to 85°C, handling varying environmental conditions. It supports a maximum forward voltage of 1.8 V and can handle an input current up to 12.5 mA.

With an isolation voltage rating of 566 V, it ensures robust electrical isolation between input and output, critical for protecting sensitive circuits. This photocoupler is UL approved, confirming its compliance with safety standards for reliable operation.

Supplied in tape and reel packaging, the product is optimized for surface mount technology (SMT) assembly lines, enhancing manufacturing efficiency. This photocoupler features a surface mount 8-pin SO package. Equipped with a GaAlAs LED and integrated photodetector IC.

Offers high common mode transient immunity suitable for industrial use. Supports a maximum forward voltage of 1.8 V and maximum input current of 12.5 mA. Typical rise and fall times are 20μs and 5μs respectively for fast response.

Isolation voltage up to 566 V ensures safe signal transfer. Operating temperature range from -40°C to 85°C for diverse environments. Packaged on tape and reel facilitating automated assembly. Ideal for industrial, electronics manufacturing, and instrumentation applications requiring reliable signal isolation and protection.
