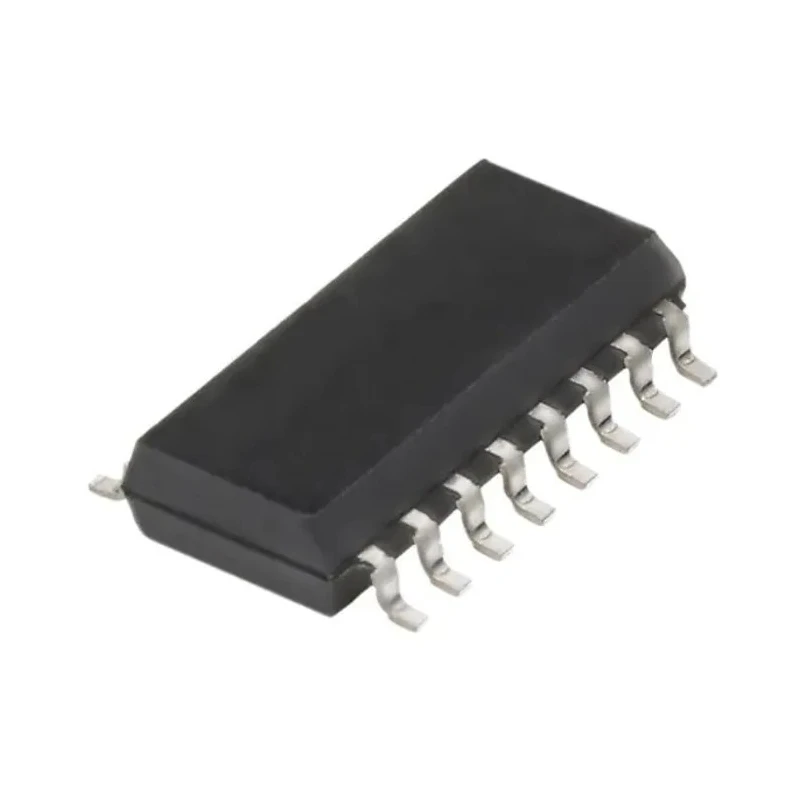

Renesas Electronics DC Input 4-Channel Photocoupler 16-Pin SSOP PS2805C-4-F3-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2805C-4-F3-A |
| Packaging | 3500 pcs/reel |
| Output type | Phototransistor |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 30mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL1577 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Typical Fall Time | 7μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features 4 channels in a compact 16-pin SSOP package.
- Maximum forward voltage of 1.4 V ensures low power consumption.
- Isolation voltage rated at 2500 Vrms for high safety levels.
- Wide operating temperature from -55°C to 100°C for harsh conditions.
- Typical rise and fall times of 5μs and 7μs support fast switching.
- Input current type is DC with maximum current of 30 mA.
- Minimum current transfer ratio of 50% ensures efficient signal transmission.
- Complies with UL1577 standards for quality and safety.
Product Description
Renesas Electronics PS2805C-4-F3-A DC Input 4-Channel Photocoupler is a high-performance optically coupled isolator combining a GaAs LED and an NPN silicon phototransistor within a plastic 16-pin SSOP package designed for high-density circuit applications. The device provides excellent cost performance and includes shielding to minimize ambient light interference, making it ideal for industrial and electronic component applications requiring reliable signal isolation.
This photocoupler features a maximum forward voltage of 1.4 V and supports an input current of up to 30 mA DC. It delivers a high isolation voltage of 2500 Vrms, allowing safe interfacing between different circuit sections. The typical rise and fall times of 5μs and 7μs respectively enable fast response times suitable for various switching and signal processing applications.
Operating over a wide temperature range from -55°C to 100°C, the PS2805C-4-F3-A can function reliably in extreme environments. It offers a minimum current transfer ratio of 50%, ensuring efficient coupling and signal transmission. The device meets UL1577 certification standards and is a Pb-free product, complying with modern environmental regulations.
This component is widely used in electronic circuits requiring optical isolation such as power supply units, signal isolation in communication equipment, industrial automation systems, and other electronic control hardware. Its compact SSOP package supports high-density mounting, helping reduce assembly size in modern electronics manufacturing.
4 phototransistor output channels for multiple signal isolations. High isolation voltage ensuring robust safety and reliability. Fast switching speeds with low forward voltage and power consumption. Wide temperature operating range for diverse industrial conditions.
RoHS compliant and environmentally friendly Pb-free construction.
Explore more electronic components like this in the Electronic Components category available at EnvMart for industrial, laboratory, electronic manufacturing, and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 100°C.
It has a high isolation voltage rating of 2500 Vrms, ensuring robust safety levels.
This unit features 4 channels, allowing for multiple signal isolations.
The input current type is DC, with a maximum input current of 30 mA.
The typical rise time is 5μs and the typical fall time is 7μs, supporting fast switching applications.
It has a minimum current transfer ratio of 50%, ensuring efficient signal transmission.
The PS2805C-4-F3-A comes in a 16-pin SSOP package, suitable for high-density circuit applications.
It complies with UL1577 standards, ensuring quality and safety in its applications.
The maximum forward voltage is 1.4 V, which helps in reducing power consumption.
It operates reliably over a wide temperature range from -55°C to 100°C.
This model is commonly used in power supply units, communication equipment, and industrial automation systems requiring optical isolation.
The country of origin for this photocoupler is India.
