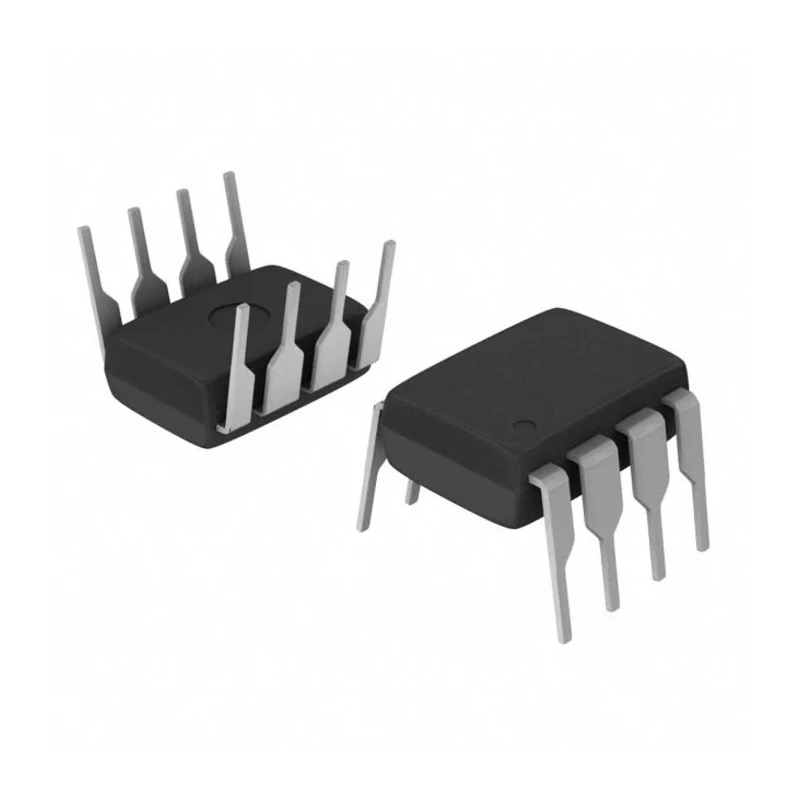

Renesas Electronics DC Input Photocoupler Through Hole 8-Pin DIP PS9513-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS9513-AX |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | Photodiode |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 5mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 2.1V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 110% |
| Minimum Current Transfer Ratio | 44% |
| Isolation Voltage | 1130V |
Key Features
- Equipped with an AlGaAs LED and photodiode for efficient optical coupling.
- Offers high common mode transient immunity and low pulse width distortion.
- Supports a maximum forward voltage of 2.1V and maximum input current of 5mA.
- Features an isolation voltage rating of 1130V for reliable electrical isolation.
- Operates within a temperature range of -40°C to 100°C.
- Includes a photodiode output type and through-hole mount.
- Packaged in tape and reel format suitable for automated assembly.
- Typical rise and fall times are 4μs enabling high-speed response.
Product Description
Renesas Electronics PS9513-AX is a DC input photocoupler featuring an 8-pin through-hole DIP package. It integrates an AlGaAs LED input and a photodiode with a signal processing circuit on a single chip, providing reliable optical isolation with high common mode transient immunity. The device is ideal for use in insulated gate bipolar transistor (IGBT) IPM drives and other industrial control systems.
This photocoupler supports a maximum forward voltage of 2.1V and can handle a maximum input current of 5mA, ensuring efficient signal transmission. The isolation voltage is rated at 1130V, safeguarding sensitive electronics from high-voltage transients.
Operating temperature range is from -40°C to 100°C, allowing deployment in harsh environments. The typical rise and fall times of 4μs enable fast switching and low pulse width distortion, optimizing performance in rapid signal processing applications.
The PS9513-AX comes packaged in tape and reel for streamlined manufacturing assembly processes. Its photodiode output type and DIP package facilitate compatibility with a broad range of electronic circuits requiring electrical isolation.
Features AlGaAs LED and photodiode coupled on one chip for compact integration. Designed for high common mode transient immunity and low pulse width distortion. Provides isolation voltage rating of 1130V for secure electrical separation.
Wide operating temperature ensures reliability in industrial applications. Typical switching times support high-speed signal processing. Through-hole DIP package suits standard PCB mounting techniques. Packaged in tape and reel for automated insertion and assembly.
Ideal for use in IPM drives and industrial control equipment.
This product is part of EnvMart's Electronics Components category and is suitable for use in electronic design, industrial automation, laboratory equipment, and manufacturing processes requiring high-performance optoelectronic isolation solutions.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this model is rated at 1130V, providing reliable electrical isolation for sensitive electronics.
It operates within a temperature range of -40°C to 100°C, making it suitable for harsh environments.
This model can handle a maximum input current of 5mA, ensuring efficient signal transmission.
It features a photodiode output type, which is suitable for various electronic circuits requiring electrical isolation.
The typical rise time for the PS9513-AX is 4μs, enabling fast switching in signal processing applications.
This model is packaged in tape and reel format, which is suitable for automated assembly processes.
The maximum forward voltage supported by this photocoupler is 2.1V.
It uses a through-hole mount type, which is compatible with standard PCB mounting techniques.
This model is UL approved, ensuring it meets specific safety and performance standards.
The PS9513-AX features a single channel design, making it suitable for various applications requiring optoelectronic isolation.
The maximum current transfer ratio for this model is 110%, with a minimum of 44%.
This model is ideal for use in insulated gate bipolar transistor (IGBT) IPM drives and other industrial control systems.
