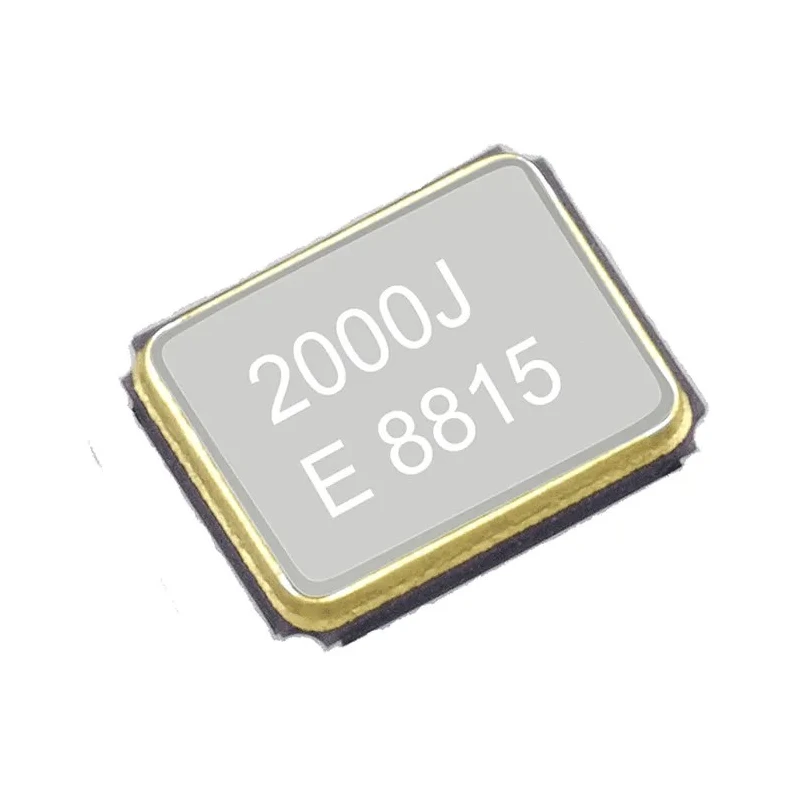

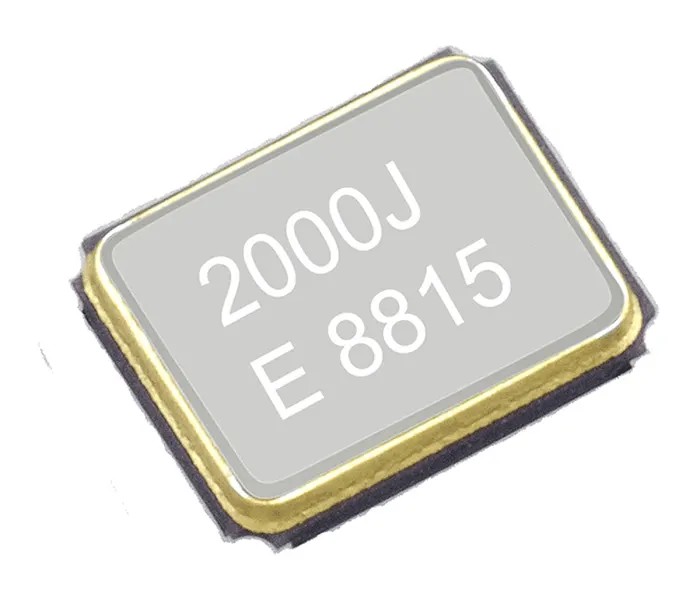

Epson 16 MHz Crystal Unit ±10 ppm Surface Mount TSX-3225 4-Pin 3.2 x 2.5 x 0.6 mm X1E000021011312

Free Delivery in India | Lowest Global Shipping Charges

Epson 16 MHz Crystal Unit ±10 ppm Surface Mount TSX-3225 4-Pin 3.2 x 2.5 x 0.6 mm X1E000021011312

Name: Epson 16 MHz Crystal Unit ±10 ppm Surface Mount TSX-3225 4-Pin 3.2 x 2.5 x 0.6 mm X1E000021011312
Brand: Epson
SKU: 317156
Price: 2.33 USD
Availability: InStock



Category Crystal Unit Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 48 MHz
Brand	Epson
Height	0.6mm
Length	3.2mm
Model	X1E000021011312
Width	2.5mm
Mount Type	Surface
Series	TSX3225
Maximum Operating Temperature	85°C
Package Type	TSX-3225
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU
External Dimensions	3.2 x 2.5 x 0.6 mm
Standards/Approvals	REACH, RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	10pF
Series Resistance	60Ω
Overtone order	Fundamental

Key Features

The crystal operates at a standard frequency of 16 MHz with a load capacitance of 10 pF.
Featuring a low profile package measuring 3.2 x 2.5 x 0.6 mm.
Designed for surface mounting with 4 pins ensuring reliable connectivity.
Operates within a temperature range from -40°C to 85°C for versatile applications.
Series resistance is rated at 60 Ω ensuring effective frequency stability.
Complies with REACH and RoHS standards for environmental safety.
Fundamental overtone order suitable for communication and clocking functions.
Ideal for mobile phones, Bluetooth modules, WLAN ISM band radios, and MPU clocks.

Product Description

Epson X1E000021011312 is a 16 MHz crystal unit designed for precise frequency control with ±10 ppm tolerance. Packaged in a TSX-3225 surface mount format with 4 pins, its compact dimensions of 3.2 mm length, 2.5 mm width, and 0.6 mm height enable easy integration into PCB designs. With a standard load capacitance of 10 pF and series resistance of 60 Ω, this crystal unit offers stable performance for electronic applications.

Operating across a temperature range from -40°C to 85°C, it is well-suited for various industrial, communication, and consumer devices including mobile phones, Bluetooth, WLAN ISM band radios, and MPU clock sources. The fundamental overtone order enhances its frequency stability, ensuring accurate timing signals.

This TSX3225FA-238 Series crystal unit incorporates a ceramic case, providing durability and resistance to environmental factors. It complies with REACH and RoHS standards, assuring compliance with environmental regulations. Although it is not automotive standard rated, it covers a broad range of applications in electronic circuits requiring reliable frequency generation.

The crystal unit operates at 16 MHz with ±10 ppm frequency tolerance. Compact surface mount TSX-3225 package with dimensions of 3.2 x 2.5 x 0.6 mm. Load capacitance of 10 pF and series resistance of 60 Ω ensure stable oscillation.

Wide operating temperature range from -40°C to 85°C for versatile environments. Compliance with REACH and RoHS standards for environmental compatibility. Designed primarily for mobile communication devices and timing circuits.

Fundamental overtone order for precise frequency stability. Ceramic case construction for enhanced durability in PCB mounting.

This Crystal Unit is essential for electronic design applications requiring a compact, reliable frequency source. Explore EnvMart categories for more advanced oscillators and frequency control components.
