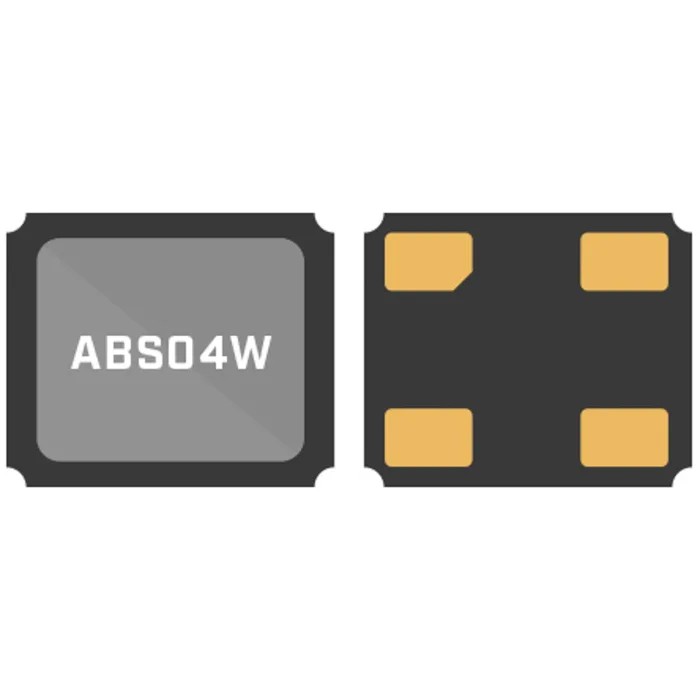

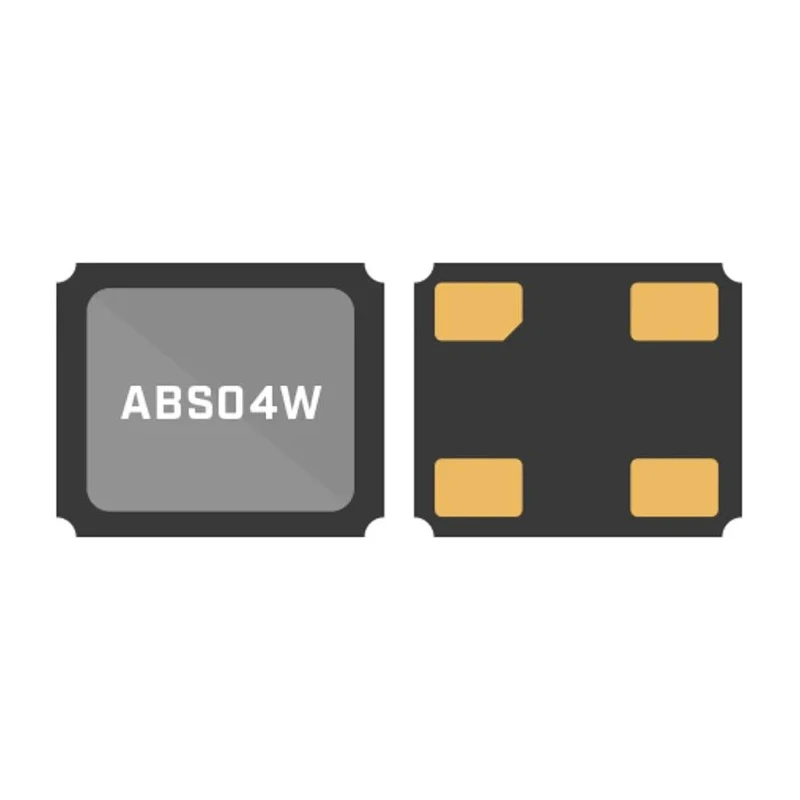

Abracon ABS04W-32.768KHZ-6-D2-T5 Surface Mount Crystal Unit 32.768 kHz ±10 ppm 4-Pin 1.2 x 1 x 0.35 mm, 4 pF

The Abracon ABS04W-32.768KHZ-6-D2-T5 is a high-precision surface mount crystal unit engineered for applications demanding stable and reliable timing. With a compact package measuring just 1.2 x 1 x 0.35 mm, this crystal is tailored for modern miniaturized electronics, including wearables, wireless modules, Bluetooth Low Energy (BLE) devices, and IoT solutions where space efficiency is critical.

This 4-pin tuning fork crystal operates at a standard frequency of 32.768 kHz, which is essential for real-time clocks and low-power microcontroller timing tasks. It offers a tight frequency tolerance of ±10 ppm and excellent frequency stability of 1 ppm, ensuring dependable timing even in demanding environments.

The low load capacitance requirement of 4 pF and series resistance of 130 kΩ optimize compatibility with low-energy system-on-chips (SoC) and microcontrollers, reducing current draw and startup times. The crystal is designed to deliver enhanced ESR performance across a wide operating temperature range from -40°C to 85°C, making it suitable for both consumer and industrial electronics.

The unit’s robust ceramic package guarantees durability and reliable operation. With full RoHS compliance, the product supports global environmental and safety standards, and the tape and reel packaging streamlines assembly for high-volume manufacturing lines.

Common applications include real-time clocks in microcontrollers, power management systems in wearables, M2M connectivity modules, NFC devices, and ISM band radio applications. The combination of low profile, small footprint, and high stability makes it a preferred choice for engineers needing accurate, miniaturized crystal timing solutions.

By choosing the Abracon ABS04W-32.768KHZ-6-D2-T5, designers enable their products to meet stringent timing specifications without sacrificing PCB real estate. Explore the extensive range of Abracon electronic timing products and related crystal units in EnvMart's Crystal Unit category for further options in precision timing components.
