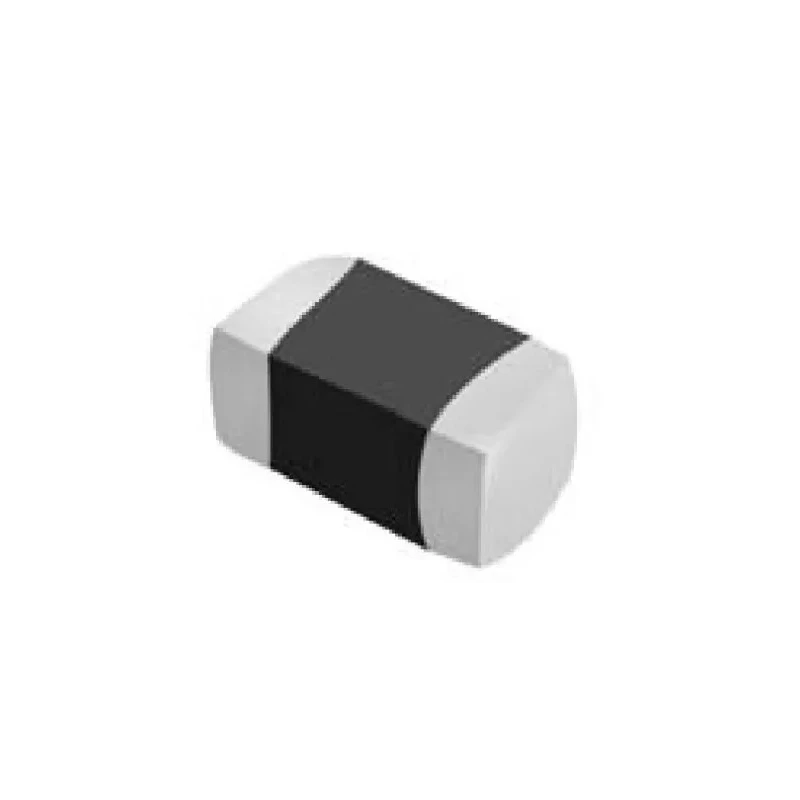

Abracon 0603 Shielded Surface Mount Inductor with Ferrite Core 1.5 μH Multilayer ±20% 420 mA Idc ASMPH-0603-1R5M-T

Abracon ASMPH-0603-1R5M-T is a shielded surface mount inductor featuring a multilayer construction with a ferrite core, delivering an inductance of 1.5 μH and supporting a maximum DC current of 420 mA. This very compact 0603 package with dimensions of 1.6 mm length, 0.8 mm height, and diameter is optimized for high efficiency and space-limited circuit boards.

The low-loss ferrite core combined with multilayer technology enables excellent support for high-speed switching frequencies commonly required in DC/DC converter applications. The magnetically shielded structure effectively eliminates cross coupling, improving signal integrity and circuit stability in demanding electronic environments.

With an operating temperature spanning -55°C to 125°C and a maximum DC resistance of 0.29 Ω, this inductor provides robust performance even under harsh operating conditions. Its multilayer construction enhances solderability and heat resistance, ensuring reliable assembly and longevity on the PCB.

Packaged in tape and reel format, this component is suited to automated surface mount technology assembly lines, enabling efficient high-volume manufacturing. Rated inductance of 1.5 μH with ±20% tolerance. Maximum DC current of 420 mA.

Compact 0603 footprint with 1.6 mm length and diameter. Ferrite core ensures low loss and high frequency performance. Magnetic shielding reduces cross coupling. Wide temperature range from -55°C to 125°C. Multilayer design for enhanced heat resistance and solderability.

Tape and reel packaging for SMT processes.

This surface mount inductor is ideal for industrial, commercial, consumer electronics, automotive, and telecommunications applications requiring compact, reliable inductive components. Browse more solutions in our Surface Mount Inductors category for diverse use cases in electronic circuit design and manufacturing.
