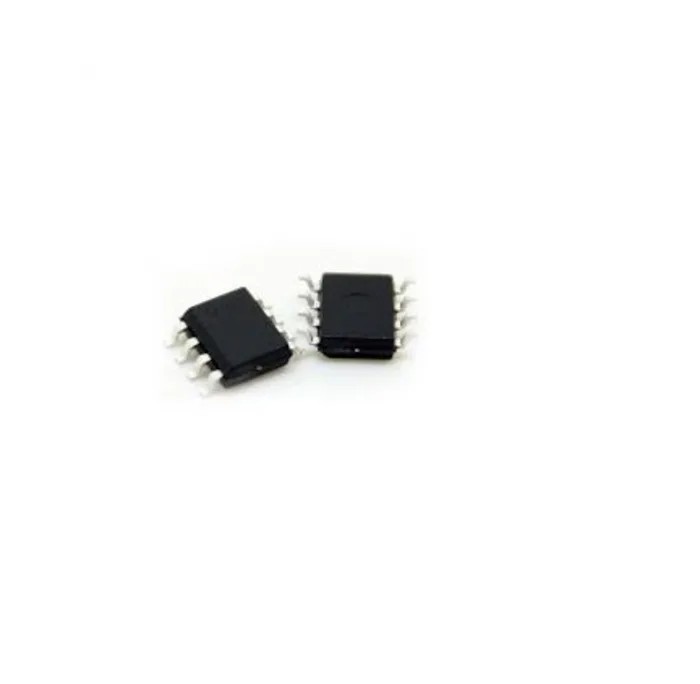

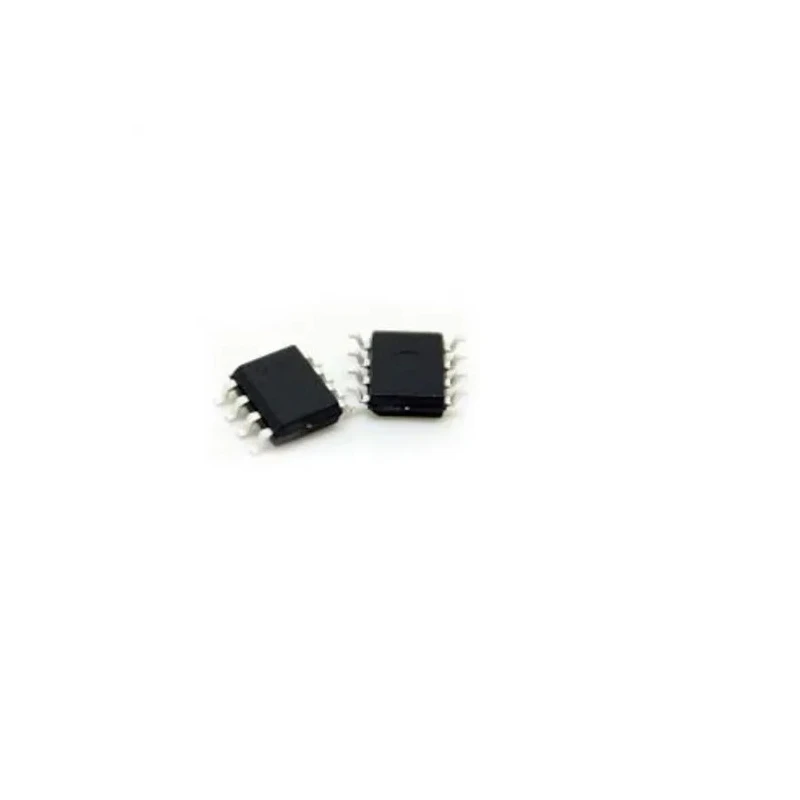

Microchip 1 kB EEPROM 80 ns 8-Pin SOIC Serial-SPI AT25010B-SSHL-B

Microchip AT25010B-SSHL-B is a 1 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) memory chip designed for use in a wide range of industrial and commercial electronic applications. It features an 8-pin SOIC surface mount package optimized for space-saving layouts, operating over a voltage range of 1.8 V to 5.5 V. This device supports Serial Peripheral Interface (SPI) communication with compatibility for SPI modes 0 and 3, making it suitable for efficient serial data exchange.

The EEPROM is organized as 128 words of 8 bits each, with a maximum random access time of 80 ns, enabling rapid data retrieval. Its 100-year data retention capability ensures reliable long-term storage. The chip integrates hardware and software write protection, including a dedicated WP pin, offering security against unintended writes. The self-timed write cycle completes within a maximum of 5 milliseconds, promoting faster programming without external intervention.

This product consumes low power, with a supply current of approximately 10 mA, making it ideal for power-sensitive applications. The compact 8-lead SOIC package stands 1.5 mm tall, facilitating easy integration into compact circuit boards. Conformance to RoHS directives makes it an environmentally responsible choice.

Typical use cases include embedded systems, data logging devices, industrial control equipment, and consumer electronics where non-volatile low-power memory is required. This Microchip EEPROM provides a reliable and high-performance solution for memory storage needs requiring serial SPI interface and robust protection features.

Offers low-voltage operation from 1.8 V to 5.5 V. Supports Serial Peripheral Interface (SPI) compatible with SPI modes 0 and 3. Organized as 128 words of 8 bits each with 100 years data retention. Equipped with write protection features including WP pin and software/hardware instructions.

Features a small footprint 8-lead SOIC surface mount package with 1.5 mm height. Optimized for low power consumption with a 10 mA supply current. Maximum clock frequency is 20 MHz allowing fast data access. Self-timed write cycle completes within 5 ms maximum.

Designed for industrial and commercial applications requiring robust performance. Conforms to RoHS standards ensuring environmental compliance. Explore more Microchip semiconductor solutions on EnvMart for your electronic component requirements.
