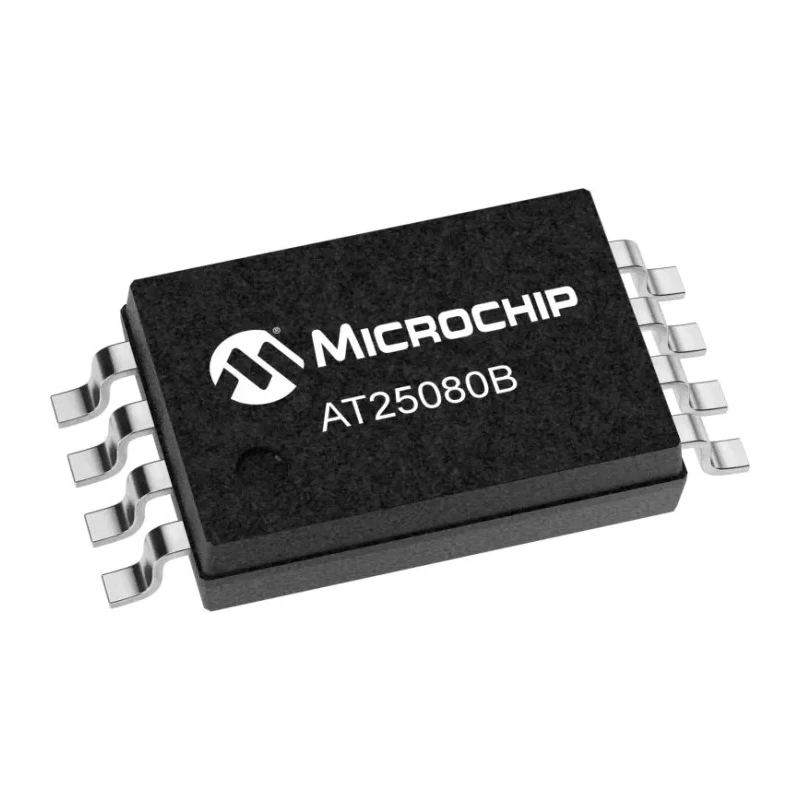

Microchip 8 kB Serial EEPROM, 80 ns, 8-Pin TSSOP, Surface Mount AT25080B-XHL-T

Microchip AT25080B-XHL-T is a robust serial EEPROM featuring 8 kB of reliable, non-volatile memory storage. Designed for high-performance applications, this memory chip offers an access time of 80 ns, supporting demanding read/write operations in electronic systems. The device utilizes a standard Serial Peripheral Interface (SPI), supporting modes 0 and 3, which simplifies integration into a wide range of digital and embedded projects.

This component is housed in a compact 8-Pin TSSOP package, well suited for surface mounting on PCBs. Its supply voltage range of 1.8V to 5.5V allows versatility across various platforms and power conditions. The memory chip is organized as 1K x 8-bit, providing clear structure and efficient data access. With a maximum clock frequency of 5 MHz, the AT25080B-XHL-T ensures swift communication and data transfers.

The device’s operating temperature range of -40°C to +85°C delivers dependable performance in both industrial and automotive environments. Data retention is rated at 100 years, granting long-lasting reliability for critical applications. Its low standby current (6 μA at 1.8V, 10 μA at 5V) contributes to minimized power consumption, making it suitable for battery-powered and energy-conscious designs.

Compliance with AEC-Q100 automotive standards highlights its readiness for automotive and transportation electronics. The self-timed erase and write cycles, combined with fast random access time, enable efficient memory management with consistent results. Each chip offers 8 bits per word and a total of 1024 words, designed to meet both consumer and industrial needs.

8 kB serial EEPROM with fast 80 ns access time for quick data operations. Supports SPI up to 20 MHz, compatible with industry-standard modes. Surface-mount TSSOP-8 package, ideal for compact circuit assemblies. Wide voltage range (1.8V to 5.5V), suitable for low-voltage and automotive systems.

Low standby current for efficient operation and power savings. 40°C to 85°C operating temperature for robust reliability. 100 years data retention, suitable for long-term storage requirements. AEC-Q100 qualified for automotive-grade reliability.

Use cases include embedded controllers, consumer electronics, automotive ECU modules, industrial monitoring, medical devices, and any application requiring reliable, persistent memory in a harsh environment. This chip is perfect for engineers designing systems where data integrity, speed, and compact size are essential.
