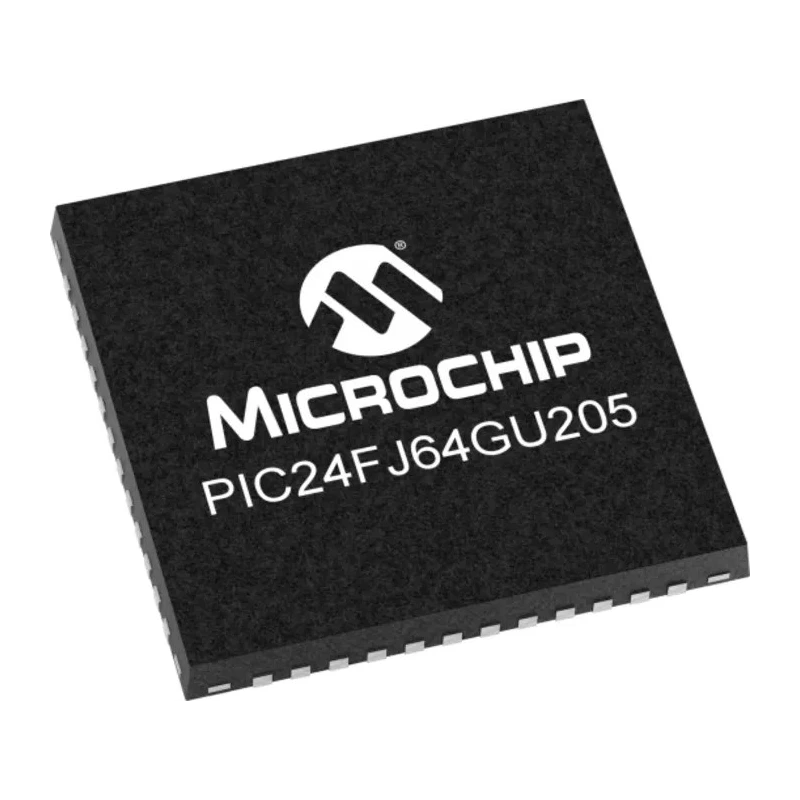

Microchip 16 bit PIC24FJ GU Microcontroller, 32 MHz, 64kB FLASH, 48-Pin UQFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.9mm |
| Length | 6mm |
| Model | PIC24FJ |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC24FJ GU |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 38 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Features a 16-bit PIC24FJ GU architecture for efficient processing.
- Includes 8kB RAM and a program memory type of FLASH for robust applications.
- Supports a maximum clock frequency of 32 MHz and 5-bit DACs.
- Equipped with 38 programmable I/Os and 3 analogue comparators for versatile interfacing.
- Operates within a wide voltage range of 2.5V to 5.5V and temperature range from -40°C to 85°C.
- Compliant with RoHS standards ensuring environmental compatibility.
- Package design features dimensions of 6mm x 6mm x 0.9mm (L x W x H) for compact integration.
- Contains 4 timers and uses a RISC instruction set architecture for performance efficiency.
Product Description
Microchip PIC24FJ64GU205-I/M4 is a 16 bit PIC24FJ GU series microcontroller featuring a 32 MHz maximum clock frequency, 64kB of ECC Flash memory, and 8kB RAM. It is housed in a compact 48-Pin UQFN surface mount package measuring 6mm in length and width with a height of 0.9mm. The device is designed for ultra-low power applications and provides a range of peripherals including 5-bit DACs, 3 analogue comparators, and 4 timers, making it suitable for embedded systems requiring efficient processing power with rich functionality.
This microcontroller supports operation across a supply voltage range of 2.5V to 5.5V and can operate reliably in harsh temperatures from -40°C to 85°C. It is RoHS compliant, reflecting adherence to environmental standards. The PIC24FJGU2 family is also optimized for low power consumption with sleep currents in the nanoampere range and complete RAM retention, ideal for battery-powered portable devices.
Key features include a RISC instruction set architecture, 16-bit data bus width, and up to 38 programmable I/O pins, enabling versatile interfacing options. The product is suitable for industrial, consumer electronics, automotive, and IoT applications requiring efficient control and processing.
The microcontroller integrates core independent peripherals (CIPs) alongside Full Speed USB 2.0 Host/Device/OTG capabilities, enhancing connectivity for complex embedded systems.
Overall, the PIC24FJ64GU205-I/M4 is a robust, low power, and high-performance microcontroller adhering to Microchip's standards for reliable performance in demanding embedded applications.
Features a 16-bit PIC24FJ GU architecture for efficient processing. Includes 8kB RAM and a program memory type of FLASH for robust applications. Supports a maximum clock frequency of 32 MHz and 5-bit DACs. Equipped with 38 programmable I/Os and 3 analogue comparators for versatile interfacing.
Operates within a wide voltage range of 2.5V to 5.5V and temperature range from -40°C to 85°C. Compliant with RoHS standards ensuring environmental compatibility. Package design features dimensions of 6mm x 6mm x 0.9mm (L x W x H) for compact integration.
Contains 4 timers and uses a RISC instruction set architecture for performance efficiency. Explore more Microchip Microcontrollers and components at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microcontroller supports a maximum clock frequency of 32 MHz.
It has a program memory size of 64kB of FLASH.
This microcontroller includes 8kB of RAM.
It operates reliably within a temperature range from -40°C to 85°C.
It is equipped with 38 programmable I/Os for versatile interfacing.
This model features 3 analogue comparators.
It is housed in a 48-Pin UQFN surface mount package.
It operates within a supply voltage range of 2.5V to 5.5V.
It contains 4 timers for various timing applications.
It utilizes a RISC instruction set architecture for efficient processing.
Yes, it is compliant with RoHS standards, ensuring environmental compatibility.
The height of the package is 0.9mm.
