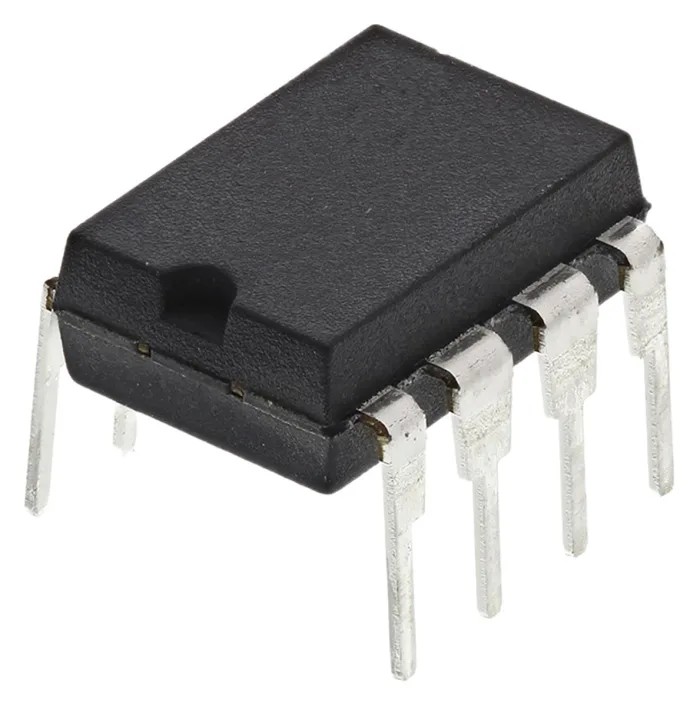

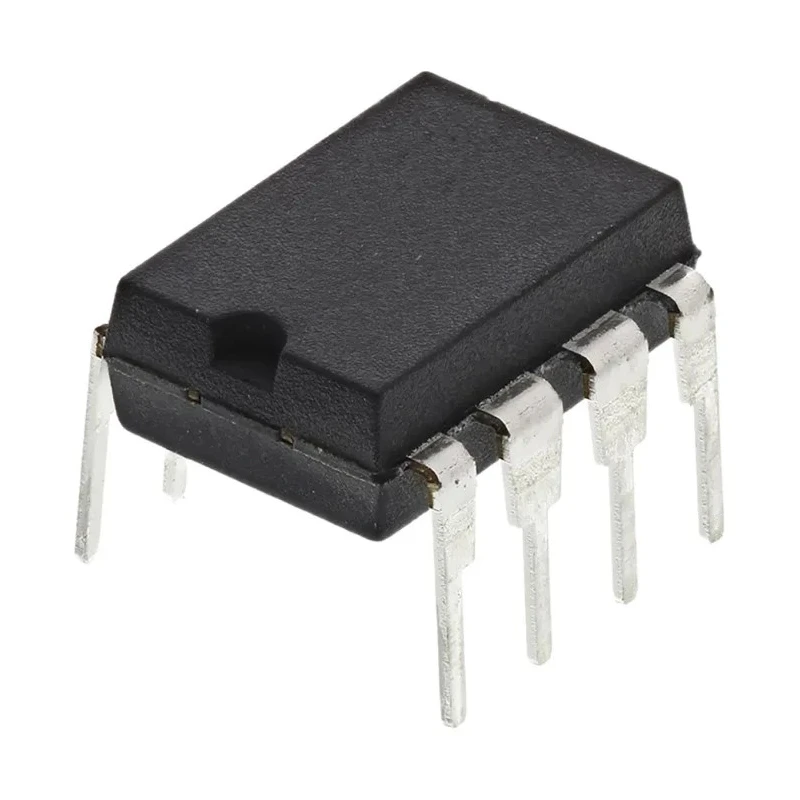

Microchip 1 12-bit + Sign Successive Approximation Register ADC 100 ksps Through Hole 8-Pin PDIP MCP3301-CI/P

Free Delivery in India | Lowest Global Shipping Charges

Microchip 1 12-bit + Sign Successive Approximation Register ADC 100 ksps Through Hole 8-Pin PDIP MCP3301-CI/P

Name: Microchip 1 12-bit + Sign Successive Approximation Register ADC 100 ksps Through Hole 8-Pin PDIP MCP3301-CI/P
Brand: Microchip
SKU: 117818



Category Analogue to Digital Converter Brand Microchip Condition New

Specifications

Country of Origin	India
Resolution	12-bit + Sign
Brand	Microchip
Height	9.14mm
Length	10.16mm
Model	MCP3301-CI/P
Mount Type	Through Hole
Sampling rate	100ksps
Series	MCP3301
Input Type	Voltage
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Interface Type	SPI
Architecture	SAR
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V
Number of ADCs	1

Key Features

The device features a 12-bit resolution plus sign capability for precise analog to digital conversion.
Utilizes a SAR (Successive Approximation Register) architecture for efficient sampling.
Operates with a supply voltage range of 5V minimum up to 5.5V maximum.
Supports SPI interface for straightforward digital communication.
Designed for operating temperatures from -40°C to 85°C, suitable for automotive applications to AEC-Q100 standard.
Compact size with dimensions of 10.16 mm length and 9.14 mm height.
Package type is PDIP with 8 pins for easy through-hole mounting.
RoHS compliant and suitable for various industrial and embedded system applications.

Product Description

Microchip MCP3301-CI/P is a high-precision 12-bit plus sign Analog to Digital Converter (ADC) employing Successive Approximation Register (SAR) architecture. This 8-Pin PDIP packaged device operates at a sampling rate of 100 kilosamples per second, making it a suitable choice for applications demanding accurate analog signal conversion with moderate speed.

The ADC supports SPI interface communication, facilitating seamless integration with microcontrollers and embedded systems. With operating voltage between 5V and 5.5V, the MCP3301-CI/P ensures stable performance within these electrical parameters.

Its operating temperature range from -40°C to 85°C and adherence to the automotive AEC-Q100 qualification confirm its reliability for use in automotive and industrial environments. The compact PDIP form factor with 8 pins allows for traditional through-hole mounting on PCBs.

RoHS compliance affirms its conformity with environmental standards. Typical use cases include instrumentation, industrial automation, automotive electronics, and data acquisition systems requiring reliable analog signal digitization.

The device features a 12-bit resolution plus sign capability for precise analog to digital conversion. Utilizes a SAR architecture for efficient sampling and conversion. Operates over a wide temperature range from -40°C to 85°C for robust operation.

Supports SPI interface for easy digital communication integration. Compact 8-Pin PDIP package suitable for through-hole PCB mounting. Operating voltage ranges from 5V to 5.5V for stable power supply operation. Certified to meet automotive AEC-Q100 standards for enhanced reliability.

RoHS compliant, supporting environmentally responsible manufacturing.

This Microchip ADC is ideal for applications in industrial, automotive, laboratory instrumentation, and embedded control systems, providing accurate and rapid analog to digital conversion in a convenient through-hole package. Explore more high-quality ADCs and semiconductor components at EnvMart.

Explore more products in our Analogue to Digital Converter category.
