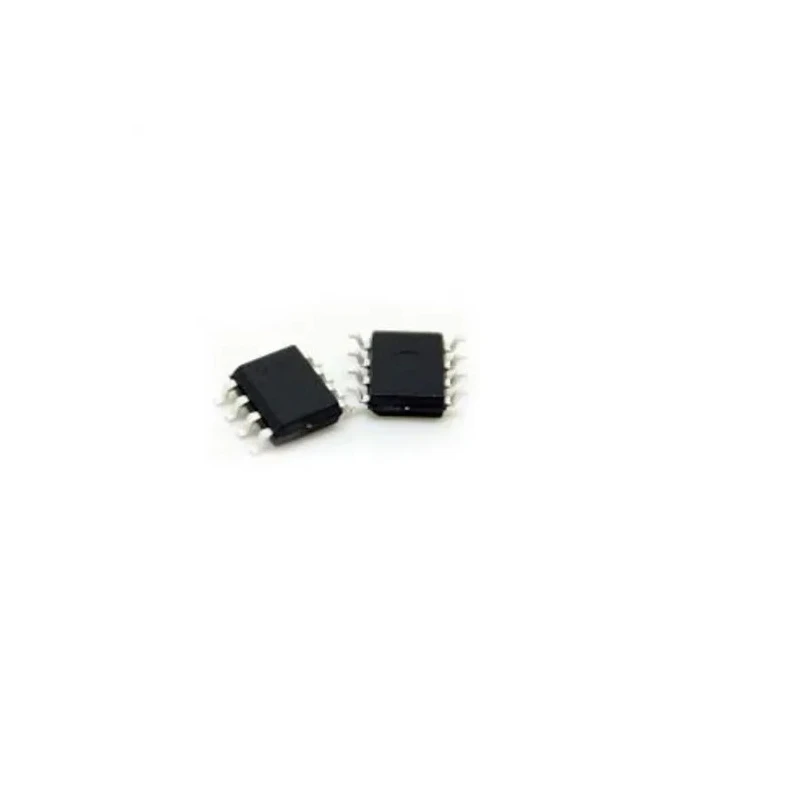

Microchip 1 kB EEPROM, 80 ns, 8-Pin SOIC Serial-SPI Memory AT25010B-SSHL-B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Model | AT25010B-SSHL-B |
| Mount Type | Surface |
| Series | AT2501 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 1kB |
| Interface Type | Serial-SPI |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 10mA |
| Maximum Clock Frequency | 20MHz |
| Organisation | 128 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 80ns |
| Number of Words | 128 |
Key Features
- This EEPROM features a memory size of 1kB organized as 128 x 8 bits.
- Operates with a maximum clock frequency of 20 MHz supporting SPI modes 0 and 3.
- Supports low-voltage operation from 1.8 V up to 5.5 V for flexible power supply compatibility.
- Comes in a compact 8-pin SOIC surface mount package measuring 1.5 mm in height.
- Ensures data retention for up to 100 years with an 80 ns maximum random access time.
- Includes hardware and software write protection features with block write protection options.
- Self-timed write cycles complete within 5 ms maximum ensuring efficient programming.
- Robust ESD protection exceeding 4,000 V to safeguard device integrity in harsh environments.
Product Description
Microchip AT25010B-SSHL-B is a 1 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) device featuring a serial SPI interface for seamless integration in electronic systems.
This EEPROM is organized as 128 words of 8 bits, optimized for low-voltage operation between 1.8 V and 5.5 V, making it suitable for industrial and commercial applications requiring low power consumption.
The compact 8-pin Small Outline Integrated Circuit (SOIC) package, with a height of only 1.5 mm, enables space-saving layout on printed circuit boards. It supports SPI modes 0 (0,0) and 3 (1,1) with a maximum clock frequency of 20 MHz for fast and reliable communication.
Advanced data protection features include hardware write-protect pin (WP), software write-disable instructions, and block write protection for 1/4, 1/2, or the entire memory array.
The device guarantees data retention for 100 years and provides an 80 ns maximum random access time for efficient read operations. Self-timed write cycles complete within 5 ms, enhancing programming speed and performance.
This EEPROM offers robust electrostatic discharge (ESD) protection rated above 4,000 V, ensuring reliable operation in environments susceptible to static charges.
Operating temperature ranges from -40°C to 85°C, supporting use in a wide variety of industrial and commercial environments such as embedded systems, instrumentation, automotive electronics, and communication devices.
Its surface-mount package allows automated assembly and cost-effective manufacturing for scalable production. This product is RoHS compliant, fulfilling environmental and safety standards. Microchip’s AT25010B-SSHL-B is ideal for applications needing reliable, compact, low-power memory solutions with extensive data retention and fast response times.
Explore related EEPROM products and more to find memory components suited for your industrial and electronics manufacturing requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a memory size of 1 kB, organized as 128 words of 8 bits each.
It operates with a maximum clock frequency of 20 MHz, supporting SPI modes 0 and 3.
The device supports low-voltage operation, with a minimum supply voltage of 1.8 V and a maximum supply voltage of 5.5 V.
The maximum random access time is 80 ns, ensuring efficient read operations.
It can operate within a temperature range of -40°C to 85°C, making it suitable for various environments.
The EEPROM is housed in a compact 8-pin SOIC surface mount package, which measures 1.5 mm in height.
Yes, it includes hardware write protection, software write-disable instructions, and block write protection options.
Self-timed write cycles complete within a maximum of 5 ms, enhancing programming speed.
Yes, this product is RoHS compliant, fulfilling environmental and safety standards.
The supply current is 10 mA, which is typical for its operation.
This EEPROM is suitable for industrial and commercial applications requiring low power consumption, such as embedded systems and automotive electronics.
