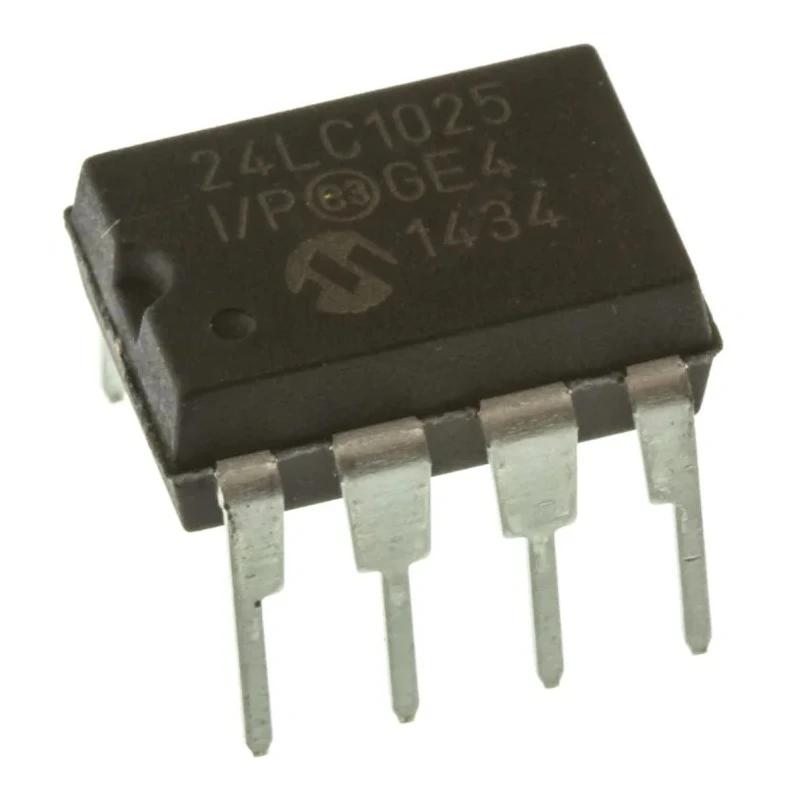

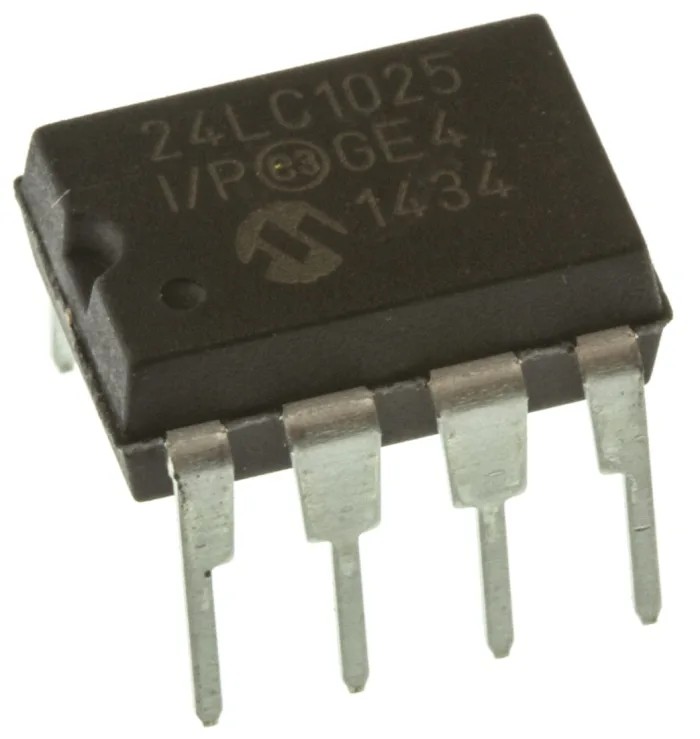

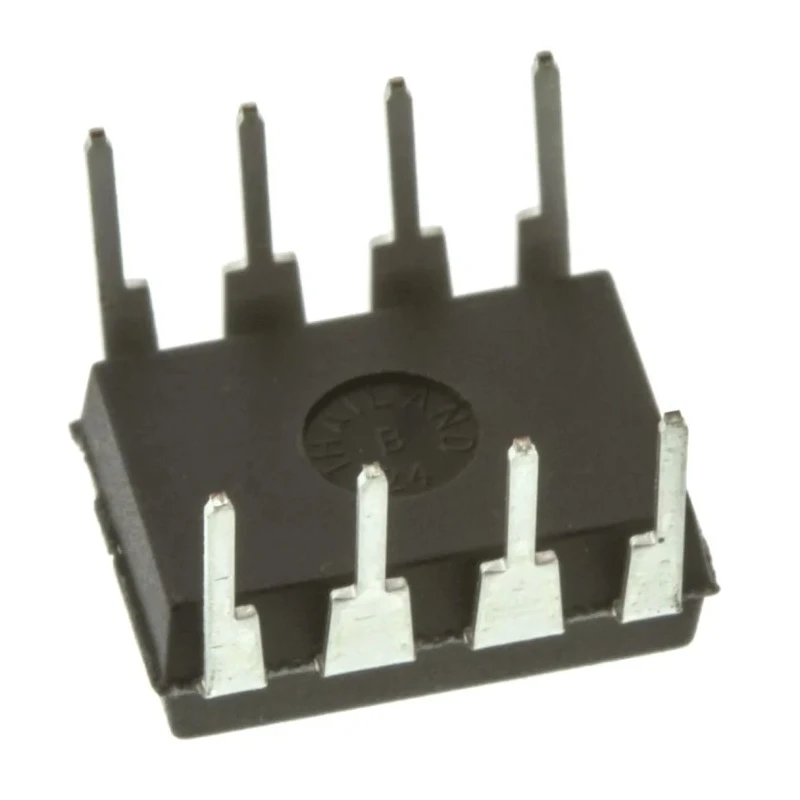

Microchip 24LC1025-I/P 1 MB Serial EEPROM, 900 ns Access, 8-Pin PDIP, Serial-I2C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 9.4mm |
| Model | 24LC1025-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Memory size | 1MB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 450μA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 128K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 128k |
| Microchip 24FC1025-I/P, 1 MB Serial EEPROM, 400 ns 8-Pin PDIP Serial-I2CBrand | Microchip |
| Page Write Buffer | 128 Byte |
Key Features
- High-density 1 MB Electrically Erasable Programmable Read-Only Memory for reliable data storage.
- Serial-I2C interface provides flexible communication and easy integration into embedded systems.
- Operates across a wide supply voltage range from 2.5V to 5.5V for versatility in various applications.
- Fast access time of 900 ns enables rapid data retrieval and efficient performance.
- Through-hole 8-pin PDIP package ensures straightforward mounting and soldering for PCB assembly.
- Robust data retention of 200 years preserves information over extended operational lifecycles.
- Page write capability supports up to 128 bytes to optimize memory programming efficiency.
- Compliant with automotive AEC-Q100 standards for enhanced reliability in industrial and automotive environments.
Product Description
The Microchip 24LC1025-I/P is a 1 MB (1024 Kbit) Serial EEPROM designed for demanding data storage requirements in industrial, automotive, and embedded applications. Featuring a Serial-I2C interface and an 8-pin PDIP package, it offers robust and flexible memory solutions for modern electronics.
This EEPROM supports byte and page write operations, allowing up to 128 bytes per page for efficient programming. It boasts an operating supply voltage range from 2.5V to 5.5V, making it adaptable to different system designs and power regimes. With a maximum access time of 900 ns, the 24LC1025-I/P ensures swift read and write cycles, crucial for time-sensitive applications.
Its organisation is 128K x 8 bits and supports a maximum clock frequency of 400 kHz. The device features hardware write protection and factory programming capabilities, making it suitable for secure and reliable storage. Cascadable up to four devices, it can be used in scalable memory arrays. Data retention is rated at 200 years, assuring longevity and reliability for mission-critical use cases.
The 8-pin PDIP form factor provides reliable through-hole mounting, compatible with standard PCB assembly processes. Operating temperature ranges from -40°C to 85°C, ensuring stability in harsh environments. The EEPROM is compliant with AEC-Q100 automotive standards, further strengthening its industrial-grade reliability and robustness.
Applications span industrial automation, automotive controls, laboratory instrumentation, communications systems, sensor modules, and data acquisition platforms. The device's low supply and standby currents make it ideal for portable or battery-powered equipment.
High-density 1 MB Serial EEPROM memory suitable for persistent data storage. Serial-I2C interface for simple two-wire communication and industry-standard compatibility. Supports both byte and 128-byte page writing for enhanced programming flexibility.
900 ns maximum random access time optimizes data throughput. Longevity with 200-year data retention and automotive-grade reliability. Wide operating voltage range (2.5V to 5.5V) and temperature range (-40°C to 85°C). 8-pin PDIP package for easy integration in prototyping and production PCB designs.
Suitable for industrial, automotive, laboratory, and embedded system applications. Discover other Serial EEPROM and memory solutions in EnvMart's electronics and semiconductor catalog. Browse Microchip products for reliable, industry-certified memory devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip 24LC1025-I/P has a memory size of 1 MB (1024 Kbit).
The maximum random access time for this EEPROM is 900 ns.
It operates across a supply voltage range from 2.5V to 5.5V.
This model uses a Serial-I2C interface for communication.
The package type is an 8-pin PDIP (Plastic Dual In-line Package).
The operating temperature range is from -40°C to 85°C.
It supports 8 bits per word.
The page write buffer supports up to 128 bytes for memory programming.
The maximum clock frequency is 400 kHz.
Yes, it is compliant with AEC-Q100 automotive standards.
The supply current is 450 μA.
The memory organisation is 128K x 8 bits.
