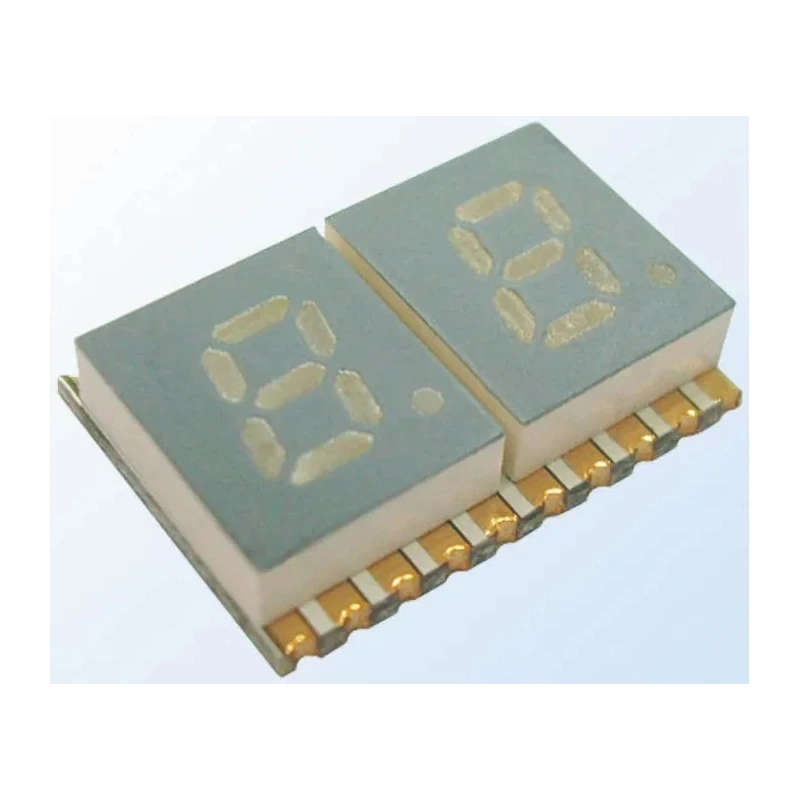

Kingbright Dual Digit 7-Segment LED Display, 2 Characters, Yellow Cathode, 36mcd, Right Side, 7.6 mm, Surface KCDC03-107
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDC03-107 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 14.8mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 36mcd |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 4.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Features dual digits for numeric display.
- Offers high visibility with yellow LED segments.
- 7-segment configuration for versatile applications.
- Surface mount design suitable for PC board integration.
- Luminous intensity of 36mcd for clear character appearance.
- Grey face with white segments enhances contrast.
- Right-side decimal orientation for specialized display needs.
- Operates from -40°C to 85°C for wide-range environments.
Product Description
The Kingbright KCDC03-107 Dual Digit 7-Segment LED Display is a surface mount component designed for efficient numeric indication. It is ideal for industrial, laboratory, and electronic applications requiring clear, high-contrast displays.
This LED display features two digits with a 7-segment arrangement, allowing representation of numbers and simple symbols. The display uses a cathode configuration and emits bright yellow light with a dominant wavelength of 590nm, ensuring visibility in varied lighting conditions.
The device offers high luminous intensity (36mcd) and a grey face with white segments, maximizing optical contrast. It is built for easy mounting on printed circuit boards or sockets, making integration straightforward for manufacturing and assembly lines.
The decimal point is oriented on the right side, suitable for applications requiring decimal fraction indication, such as measuring instruments or panel meters.
Engineered to withstand a wide operating temperature range of -40°C to 85°C and guaranteed RoHS compliance, this display suits demanding industrial, laboratory, commercial instrumentation, and process control contexts.
Features dual digits for numeric display. Offers high visibility with yellow LED segments. 7-segment configuration for versatile applications. Surface mount design suitable for PC board integration. Luminous intensity of 36mcd for clear character appearance.
Grey face with white segments enhances contrast. Right-side decimal orientation for specialized display needs. Operates from -40°C to 85°C for wide-range environments. Low current operation for energy efficiency. RoHS compliant construction ensures environmental safety.
This model is recommended for use in signal and measurement displays, digital counters, timers, process indicators, and any electronic device requiring reliable visual numeric output. Browse more Kingbright displays and industrial electronic components in the LED Display category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the KCDC03-107 display is 36mcd, providing clear character appearance in various lighting conditions.
This model operates within a temperature range of -40°C to 85°C, making it suitable for a wide variety of environments.
The KCDC03-107 is a dual digit 7-segment LED display designed for numeric indication.
The forward voltage for the KCDC03-107 is 2V, and it operates at a forward current of 30mA.
The character height of this display is 7.6mm, with a character width of 4.2mm.
This model features a surface mount design, making it suitable for integration onto printed circuit boards.
The LED segments of the KCDC03-107 emit bright yellow light with a dominant wavelength of 590nm.
The decimal point on the KCDC03-107 is oriented on the right side, suitable for applications requiring decimal fraction indication.
The external dimensions of this display are 14.8mm in width, 3.8mm in depth, and 12mm in height.
Yes, the KCDC03-107 display is RoHS compliant, ensuring it meets environmental safety standards.
This model is recommended for use in signal and measurement displays, digital counters, timers, and process indicators.
The KCDC03-107 features a total of 7 segments for each digit, allowing for the representation of numbers and simple symbols.
