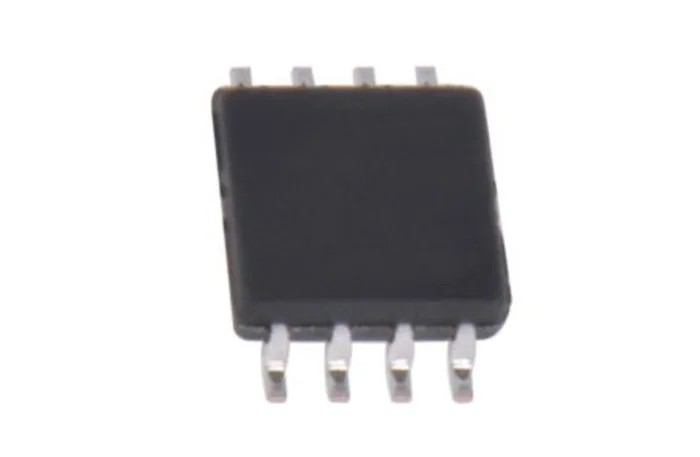

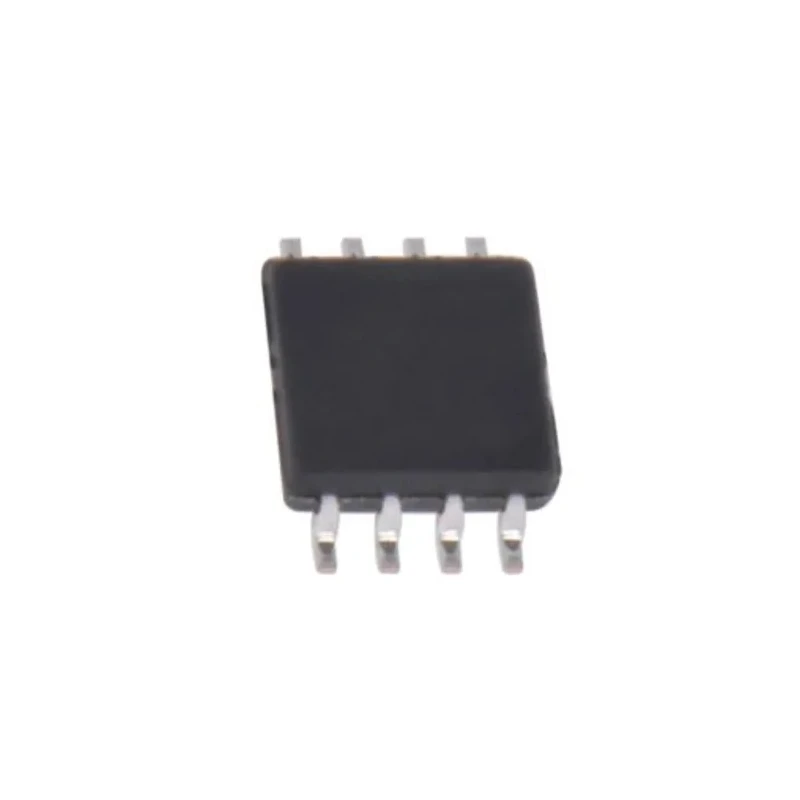

onsemi 8 kB Serial EEPROM 900 ns I2C TSSOP 8-Pin CAT24C08YI-GT3
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Length | 3.1mm |
| Model | CAT24C08YI-GT3 |
| Width | 6.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interfaces | LANs |
| Memory size | 8kB |
| Interface Type | I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 2mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 1K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 1K |
Key Features
- Provides 8 kB serial memory for non-volatile data storage.
- Operates on a supply voltage range from 1.7 V to 5.5 V for flexibility in embedded systems.
- Supports standard and fast I2C protocol with hardware write protection for reliability.
- Features a maximum clock frequency of 400 kHz for efficient data transactions.
- Extended industrial temperature range from -40°C to 85°C for robust applications.
- Low power CMOS technology enables minimal supply current consumption.
- 100-year data retention and more than 1,000,000 program/erase cycles for long-term reliability.
- Compact TSSOP 8-pin surface-mount form factor suitable for space-saving designs.
Product Description
The onsemi CAT24C08YI-GT3 is a high-performance serial EEPROM memory chip featuring an 8 kB storage capacity, designed to meet the demands of advanced industrial, automotive, and consumer embedded applications. This device utilizes a fast I2C interface, supporting both standard and fast protocol operations, with a maximum clock frequency of 400 kHz, which ensures swift and reliable data communication between microcontroller and memory.
Packaged in a compact and robust 8-pin TSSOP surface-mount format, the CAT24C08YI-GT3 is engineered to deliver non-volatile data retention ideal for configuration, calibration, and logging applications. The memory organization of 1K x 8 bits allows efficient access and management of large datasets. With minimum and maximum supply voltages of 1.7 V and 5.5 V respectively, the chip offers broad flexibility for use in both battery-powered and mains-supplied systems.
Reliability is further assured by hardware write protection covering the entire memory, and advanced Schmitt trigger inputs with noise suppression filters on the I2C bus lines, minimizing risks of accidental data corruption. The maximum random access time of 900 ns and supply current of only 2 mA ensure low-energy consumption and quick operation, aligning with modern low-power system requirements.
The CAT24C08YI-GT3 provides an extended industrial temperature range from -40°C to 85°C, allowing deployment in harsh outdoor, factory, and automotive environments. Data retention is rated at 100 years, with more than 1,000,000 program/erase cycles, ensuring longevity in mission-critical control systems.
Applications for this EEPROM include alarm systems, automotive modules, cable modems, digital cameras, health meters, industrial controls, memory modules, printers, smart phones, telecommunications devices, two-way radios, and vending machines. Its versatility makes it suitable for use in commercial electronics, laboratory instrumentation, industrial manufacturing, and embedded PC designs.
Key features include:. 8 kB non-volatile serial memory in TSSOP 8-pin package. Standard and Fast I2C interface with 400 kHz clock. 1.7 V to 5.5 V supply voltage range and 2 mA low supply current. Extended operating temperature range (-40°C to 85°C).
Hardware write protection and robust noise suppression. 100-year data retention and 1,000,000+ program/erase cycles. Ideal for widely ranging industrial, automotive, consumer, and commercial embedded applications. Browse more industrial EEPROM solutions from onsemi and the full range of semiconductors in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides 8 kB of non-volatile serial memory for data storage.
It operates on a supply voltage range from 1.7 V to 5.5 V, allowing flexibility in various embedded systems.
The maximum clock frequency is 400 kHz, facilitating efficient data transactions over the I2C interface.
This EEPROM operates within an extended temperature range of -40°C to 85°C, suitable for robust applications.
It supports a standard and fast I2C interface, making it compatible with various microcontrollers and systems.
The maximum random access time is 900 ns, ensuring quick data retrieval.
It is packaged in a compact TSSOP 8-pin surface-mount format, ideal for space-constrained designs.
The supply current is only 2 mA, which contributes to its low power consumption characteristics.
Yes, it features hardware write protection that covers the entire memory, enhancing reliability.
It offers a data retention period of 100 years, with more than 1,000,000 program/erase cycles for long-term usage.
The CAT24C08YI-GT3 complies with the AEC-Q100 automotive standard, making it suitable for automotive applications.
The memory organization is structured as 1K x 8 bits, allowing efficient access to data.
