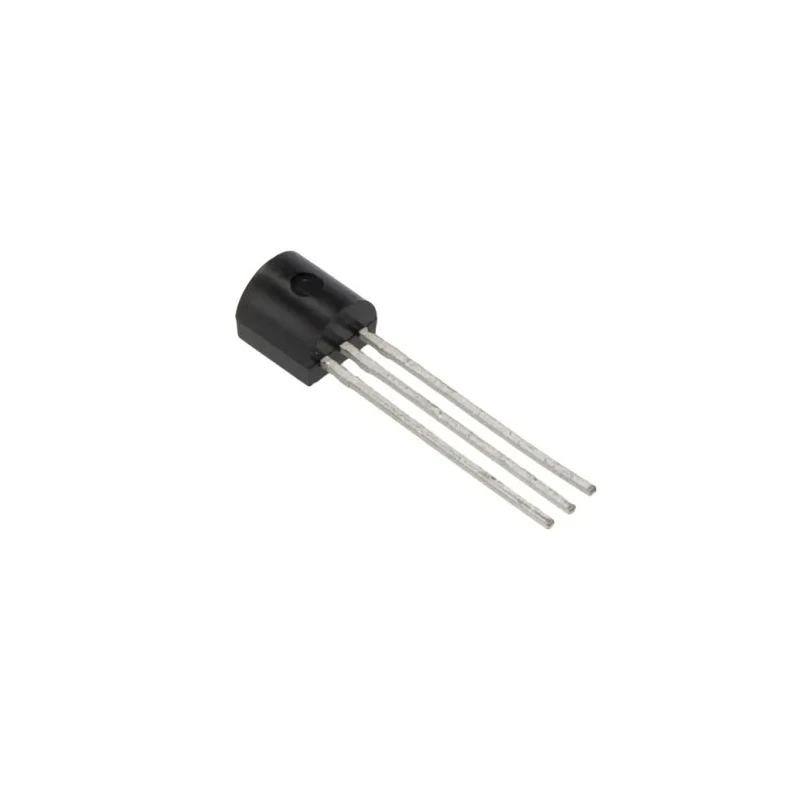

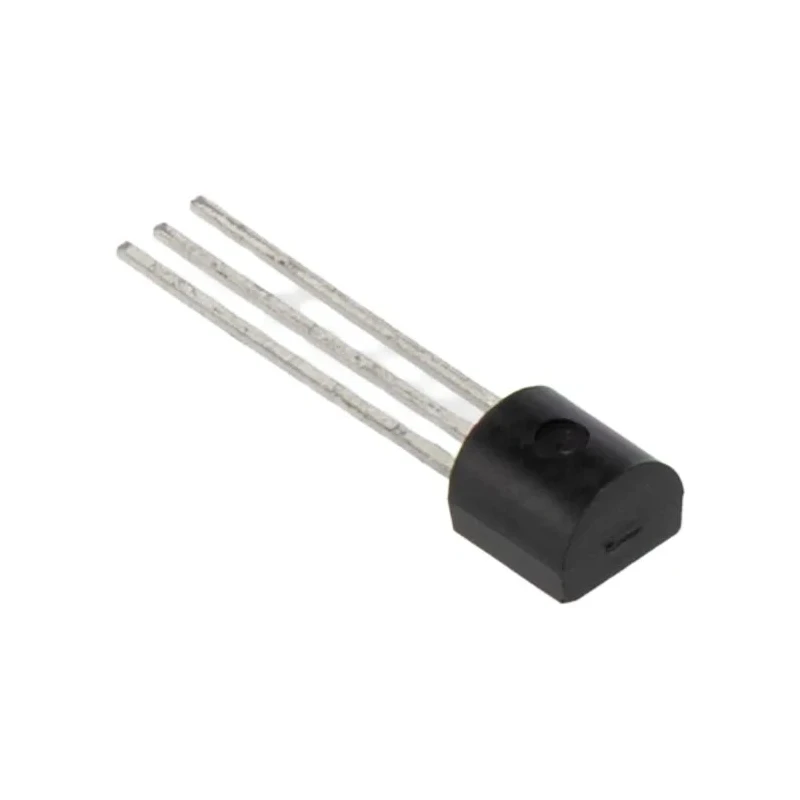

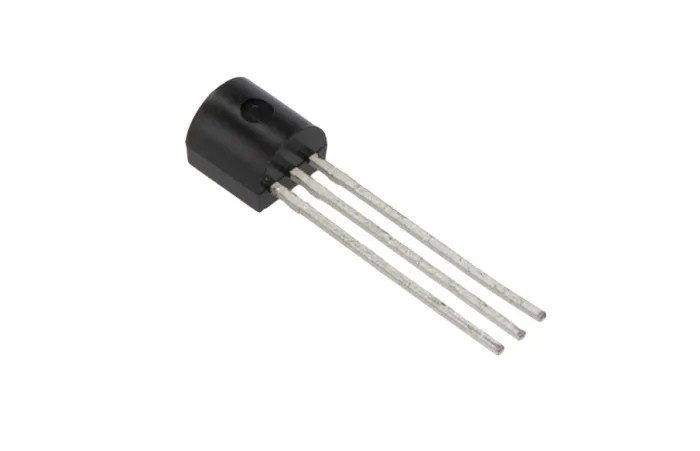

Microchip Voltage Output Temperature Sensor Through Hole Mount Analogue ±1°C 3-Pin TO-92 MCP9700
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP9700 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9700 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates within supply voltage range of 2.3V to 5.5V for flexible power options.
- Temperature measurement range spans -40°C to 125°C suitable for diverse applications.
- Compact TO-92 package measuring 4.71mm length, 3.62mm width, and 4.62mm height for easy PCB mounting.
- 3-pin through hole mount supports simple integration into electronic designs.
- Sensor output gain of 10mV/°C offers straightforward voltage-to-temperature conversion.
- Resistant to parasitic capacitance and capable of driving capacitive loads effectively.
- Ideal for temperature monitoring in office equipment, appliances, battery packs, and hard disk drives.
- Designed for industrial, laboratory, and consumer electronics temperature sensing with reliable analogue output.
Product Description
Microchip MCP9700 voltage output temperature sensor MCP9700 delivers precise analogue voltage corresponding to temperature changes, with a high accuracy of ±1°C. Packaged in a 3-pin TO-92 through hole mount, the sensor measures compactly at 4.71mm length, 3.62mm width, and 4.62mm height, enabling easy integration onto printed circuit boards.
Operating with a wide supply voltage from 2.3V to 5.5V, the MCP9700 sensor supports temperature measurements from -40°C up to 125°C, suitable for various electronics, industrial, and consumer applications. Its sensor gain of 10mV per degree Celsius allows straightforward conversion of output voltage to temperature.
This analogue temperature sensor is specifically designed to resist parasitic capacitance and can drive large capacitive loads effectively, making it ideal for temperature monitoring in devices such as office equipment, home appliances, entertainment systems, hard disk drives, and battery management.
With its reliable performance and through hole package, the MCP9700 sensor is well-suited for industrial machines, laboratory instruments, HVAC systems, and consumer electronics requiring accurate and stable temperature measurement. The sensor's simple 3-pin interface provides ease of use and seamless integration.
Operates within supply voltage range from 2.3V to 5.5V. Temperature operating range from -40°C to 125°C. Compact TO-92 package dimensions for PCB mounting. Provides analogue voltage output with a sensitivity of 10mV/°C. Designed to withstand parasitic capacitance and drive capacitive loads.
Applications include office equipment, battery packs, and industrial temperature monitoring. Suitable for laboratory, industrial, and consumer device integration. 3-pin through hole mounting enhances easy installation. Explore EnvMart's extensive category of Temperature Sensors and Sensor ICs to find compatible and high-quality products from global brands including Microchip.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9700 can measure temperatures from -40°C to 125°C, making it suitable for a variety of applications.
This model has an accuracy of ±1°C, ensuring reliable temperature readings.
The sensor is packaged in a TO-92 form factor with dimensions of 4.71mm in length, 3.62mm in width, and 4.62mm in height.
It operates within a supply voltage range of 2.3V to 5.5V, allowing for flexible power options.
This model provides an analogue voltage output, which corresponds to the temperature measurements.
It features a 3-pin through hole mount, which simplifies integration into electronic designs.
Yes, it is designed to resist parasitic capacitance and can effectively drive large capacitive loads.
It is ideal for temperature monitoring in office equipment, appliances, battery packs, and hard disk drives, among other applications.
The MCP9700 uses an analogue interface type, allowing for easy signal processing in electronic circuits.
The sensor is manufactured in India.
