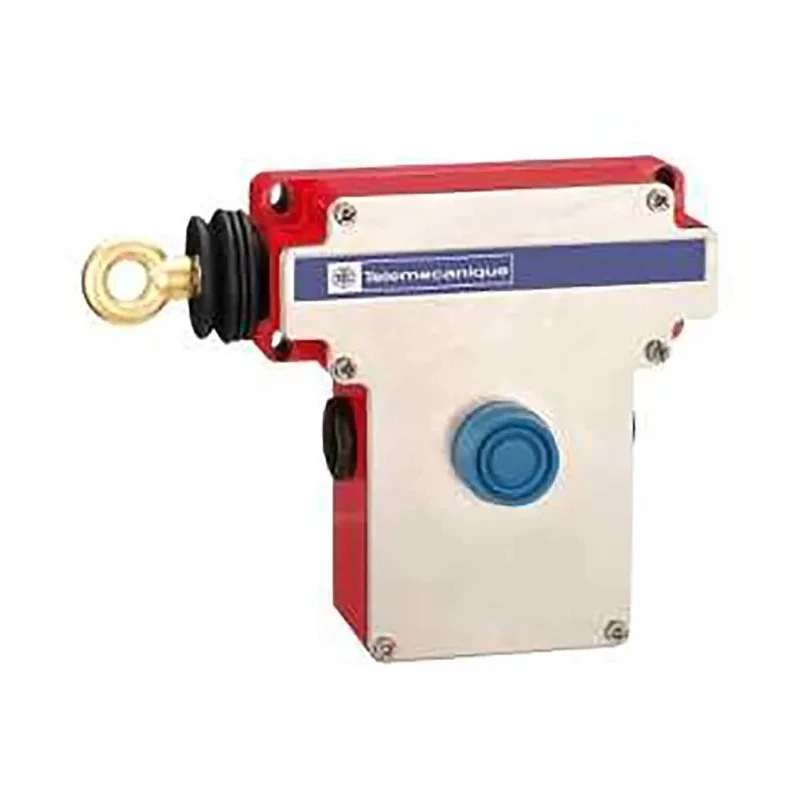

Telemecanique Sensors Rope Pull Switch 229 mm, 1 NO/1 NC XY2CE

Telemecanique Sensors XY2CE Rope Pull Switch is a high-performance industrial emergency stop device designed to enhance safety and reduce risks of injury or damage in manufacturing, automation, and industrial processes. Measuring 229 mm in length with a 105 mm width and 142 mm depth, this rope pull switch features a stainless steel housing that ensures robust protection and durability in demanding environments.

The switch offers a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact, with a mechanical life expectancy of 60,000 cycles, providing reliable repeated performance over its lifecycle. It supports contact voltages of 250 V DC and 240 V AC, with a maximum contact current of 3 A, making it suitable for various control circuits.

IP66 rated for ingress protection, the switch is dust-tight and can withstand powerful water jets, ideal for harsh industrial settings. Its operation temperature range of -25°C to 70°C accommodates a wide variety of working conditions. The device incorporates both a reset button and an emergency stop button for controlled restart and safety assurance. The design includes three cable entries with PG13.5 conduit compatible interfaces for flexible installation options.

Telemecanique XY2CE switches feature a positive opening operation mechanism ensuring that the switch latches in the tripped position until manually reset. The NO contact serves signaling functions while safety contacts are maintained via the NC contacts. This switch can be actuated by manual pull or automatically if the trip wire breaks, offering integral safety functionality in automated plants.

The product complies with stringent standards including UL 508, CSA C 22-2, EN/IEC 60947-5-5, EAC, CCC, and the safety directive EN/ISO 13850:2006. It is engineered for applications in industrial automation, manufacturing safety, conveyor belt systems, and process control environments where immediate emergency stop initiation is critical.

Equipped with IP66 rating for dust-tight and strong water resistance. Includes a reset and an emergency stop button for enhanced operational control. Constructed with stainless steel housing ensuring durable performance in harsh environments.

Supports a contact DC voltage of 250V and AC voltage of 240V with a 3A contact current rating. Designed for mechanical life of up to 60,000 cycles for reliability and longevity. Features three cable entries with PG13.5 conduit compatibility.

Operates reliably in temperatures from -25°C to 70°C, suitable for diverse industrial scenarios. Conforms to standards including UL 508, CSA, EN/IEC 60947-5-5, and others for assured safety compliance.

This Telemecanique Sensors XY2CE rope pull switch is essential for industrial safety circuits where quick and reliable emergency stopping is required. EnvMart offers a comprehensive selection of industrial automation and safety components, including Rope Pull Switches, for enhanced workplace safety.
