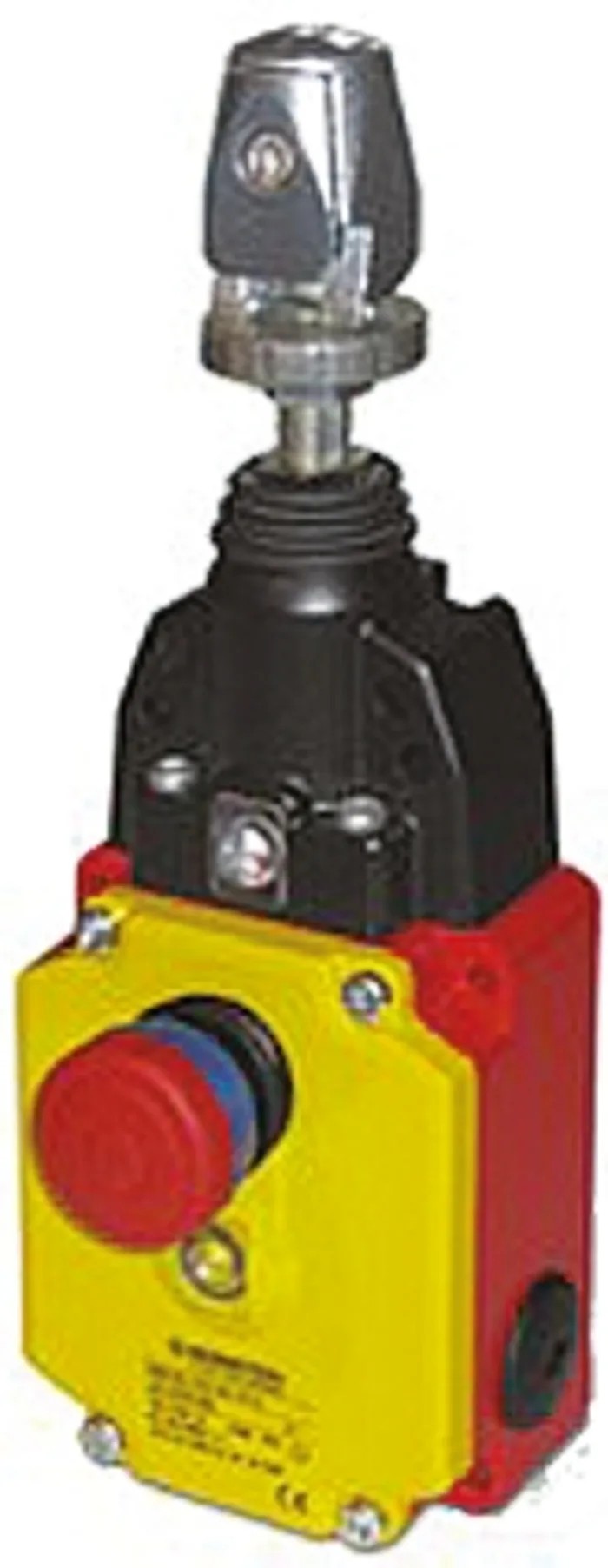

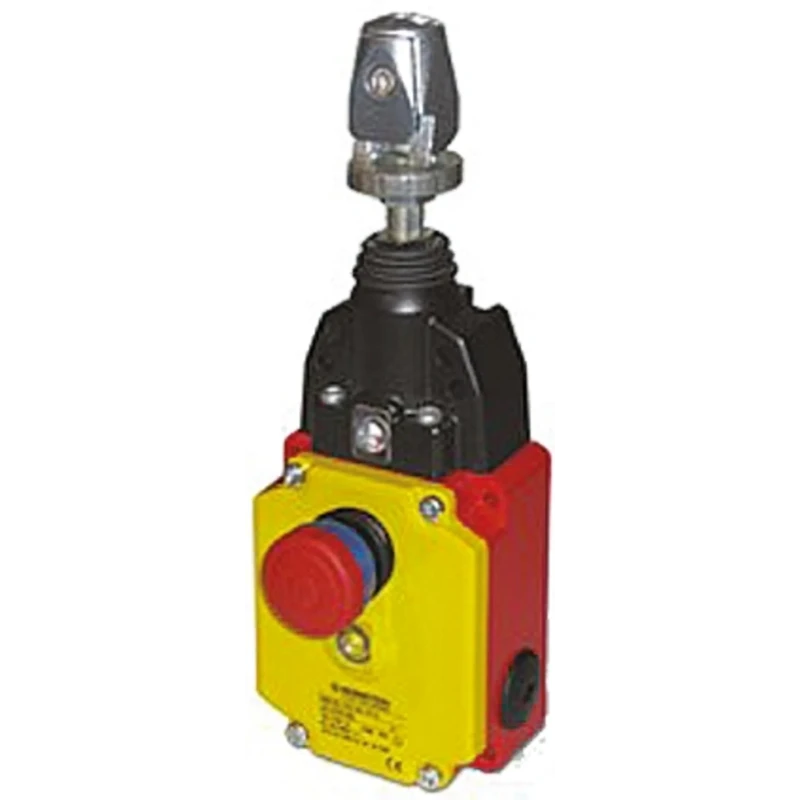

Bernstein AG SRM Rope Pull Switch 282 mm, Straight Mounting, 2 NO/2 NC Contacts, IP67, Die Cast Aluminium Housing 6012929086

Bernstein AG 6012929086 SRM Rope Pull Switch is engineered for dependable safety shutdown applications in industrial environments. Measuring 282 mm in length with a straight mounting orientation, this switch features a durable die cast aluminium housing that withstands harsh outdoor conditions with an IP67 protection rating.

Equipped with 2 Normally Open and 2 Normally Closed contacts, it supports a contact DC voltage of 250 V and AC voltage of 240 V with a maximum current rating of 10 A, making it suitable for various control circuit designs.

This rope pull switch operates reliably between -30°C and 80°C, ensuring functionality in environments exposed to extreme temperature fluctuations. It comes with three M20 x 1.5 conduit entries, allowing flexible cabling options. The integrated reset button facilitates manual reset operations after a triggered event.

Manufactured according to DIN EN 60947-5-5 and DIN EN ISO 13850 standards, the SRM series offers up to four positively driven normally closed contacts and separate action built-in switches for enhanced safety measures. The stable metal housing constructed from aluminium pressure die casting is designed to resist mechanical shocks and ensure long-term durability.

Versatile 2 NO/2 NC contact configuration supports multiple control schemes. IP67 rated enclosure protects internal components against dust and water. Robust die cast aluminium housing suitable for outdoor installations.

Wide operating temperature range from -30°C to 80°C. Three conduit entries (M20 x 1.5) for flexible installation. Convenient manual reset via built-in reset button. Adherence to DIN and ISO safety standards ensures reliable operation.

Expected mechanical life of 100,000 operations provides longevity. Originates from Germany, reflecting precision manufacturing quality.

This Rope Pull Switch is ideal for industrial, manufacturing, automation, and safety control systems requiring rapid emergency stop capability and reliable mechanical action. It is engineered for environments demanding robust safety devices capable of enduring challenging conditions such as temperature extremes and outdoor exposure.
