Telemecanique Sensors 9007 Series Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V AC, 6A 9007MS04S0200

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors 9007 Series Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V AC, 6A 9007MS04S0200

Name: Telemecanique Sensors 9007 Series Lever Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V AC, 6A 9007MS04S0200
Brand: Telemecanique Sensors
SKU: 328255
Price: 331.03 USD
Availability: InStock



Category Limit Switch Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	India
Brand	Telemecanique Sensors
Length	63.25mm
Model	9007MS04S0200
Depth	34.89mm
IP Rating	IP67
Width	34.89mm
Housing Material	Die Cast Zinc
Series	9007
Maximum Operating Temperature	105°C
Contact Configuration	SPDT
Actuator Type	Lever
Contact Type	Snap Action
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Cable
Standards/Approvals	CE, CSA, REACH, RoHS, UL
Mechanical Life	10000000Operations
Switching DC Voltage	28V dc
Switching AC Voltage	240V ac

Key Features

Equipped with a lever actuator for precise mechanical operation.
Snap action contact type ensures reliable switching performance.
Rated for switching currents up to 6A at 240V AC and 28V DC.
Designed for harsh environments with IP67 ingress protection and die cast zinc housing.
Operates effectively in temperature ranges from -40°C to 105°C.
Mechanical life rated for 10,000,000 operations ensuring long service life.

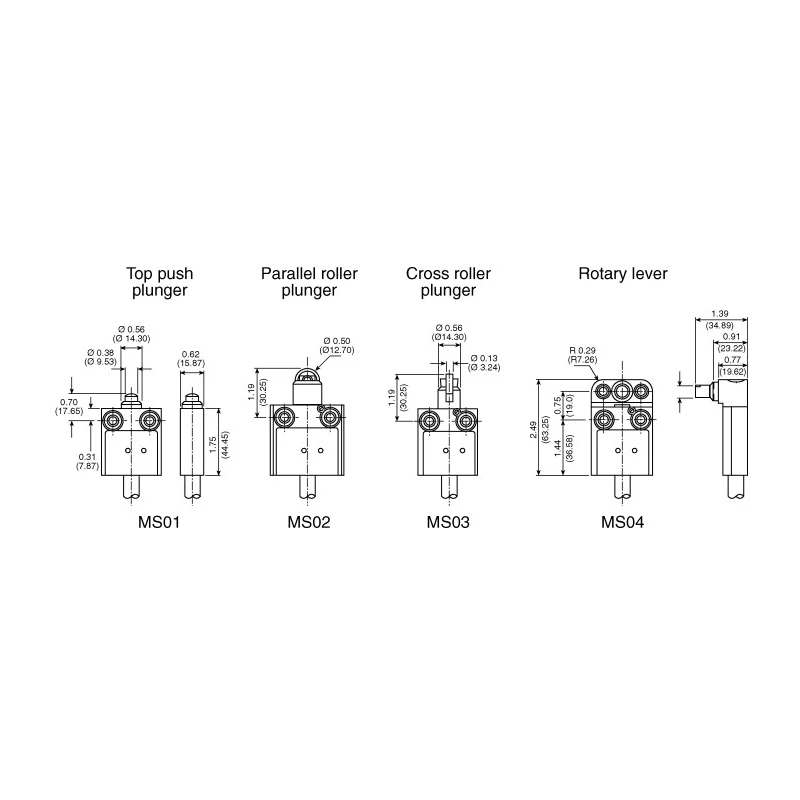

Compact dimensions with length 63.25mm, width 34.89mm, and depth 34.89mm.
Terminal type is cable with options for bottom or side entry and connection choices including M12 4 pin.

Product Description

Telemecanique Sensors 9007MS04S0200 lever limit switch is a heavy duty, robust industrial limit switch designed for demanding applications. It features a lever actuator and a single-pole double-throw (SPDT) contact configuration for versatile switching.

This limit switch boasts a die cast zinc housing offering durability and excellent protection against mechanical and environmental factors with an IP67 ingress rating, making it suitable for use in harsh industrial conditions such as earth moving equipment, machine tools, refuse vehicles, and manufacturing or process lines.

Rated for switching currents of 6 amps at 240 volts AC and 28 volts DC, it delivers reliable performance with snap action contacts that provide quick and consistent switching operation. Its mechanical life is rated at 10 million operations, ensuring long service life under heavy usage.

The device operates efficiently across a wide temperature range from -40°C to 105°C. Its compact size (63.25 mm length, 34.89 mm width and depth) allows installation flexibility. It supports cable terminal connections with bottom/side entry options and connection choices including M12 4 pin connectors.

The switch complies with multiple certifications and standards including CE, CSA, REACH, RoHS, and UL, confirming quality and safety compliance. It does not have hazardous area certification but is engineered for rugged reliability.

Lever actuator for precise mechanical actuation. Die cast zinc housing with IP67 for superior protection. Snap action contacts rated for 6A at 240V AC and 28V DC. Operating temperature range: -40°C to 105°C. Mechanical life of up to 10 million operations.

Cable terminal type with flexible installation options. Compliance with CE, CSA, REACH, RoHS, UL standards. Ideal for industrial and manufacturing applications.

This Telemecanique limit switch is a reliable, high-performance component designed to improve safety and control in industrial systems. Browse EnvMart’s full range of Limit Switches and automation controls for comprehensive solutions.
